Old 09-02-2011, 11:32 AM   #11
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

where are you getting your wires btw?
Track is offline   Reply With Quote
Old 09-02-2011, 11:56 AM   #12
zoomzoom
Thread Starter

FRT_Fun's Avatar

Join Date: Jul 2011
Location: Arizona
Posts: 924
Default

Eh I ended up just grabbing them from Lowes. They had some on sale. I don't care about color to be honest. I really just need to know the colors at the connector and MS to do any sort of testing.
FRT_Fun is offline   Reply With Quote
Old 09-02-2011, 01:02 PM   #13
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

Quote:
Originally Posted by FRT_Fun View Post
Eh I ended up just grabbing them from Lowes. They had some on sale. I don't care about color to be honest. I really just need to know the colors at the connector and MS to do any sort of testing.
you can use labels, you can pick up a sheet of 500 white and/or clear vinyl labels from office-depot/max/staples for something between 10-30$ depending on your quality preference. this makes things much cheaper, as you can buy large bulk amounts of 2-3 color wires and stick with that. Just gotta be meticulous with your labeling (and it sounds like you are meticulous with a lot of things anyway!).

We used it on my Data Acquistion project and it does wonders (although our issue was more related to sensor location than wire identification).

Last edited by Track; 09-02-2011 at 01:21 PM.
Track is offline   Reply With Quote
Old 09-02-2011, 01:19 PM   #14
zoomzoom
Thread Starter

FRT_Fun's Avatar

Join Date: Jul 2011
Location: Arizona
Posts: 924
Default

Ah good idea, i've just but cutting small pieces of painters tape and folding it over the wire. Forgot someone might actually make those hah.

I ditched the connector shown in the picture above (the circle-ish one). It was not up to my standards. Seemed very sketchy. I'm going a little bit different route, but it means I have to do a lot of the work over :/ But I'd rather do it right the first time.
FRT_Fun is offline   Reply With Quote
Old 09-02-2011, 01:26 PM   #15
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

hehe, had to make some corrections to my comment. home-depot doesn't sell envelope labels lol.

Yea, I would change to some good ol' standardized connectors. Digi-key is a good place to start, but it can be overwhelming. DB-xx style cables for ECUs are a good place to start but they can be VERY tricky to solder depending on the quality you get.


^A bitch. especially with solid core wiring mixed in with the conduit style wires.

You can spend a bit more money and get something easier...pinning maybe a good alternative, but sometimes it can require a special tool.
Attached Thumbnails

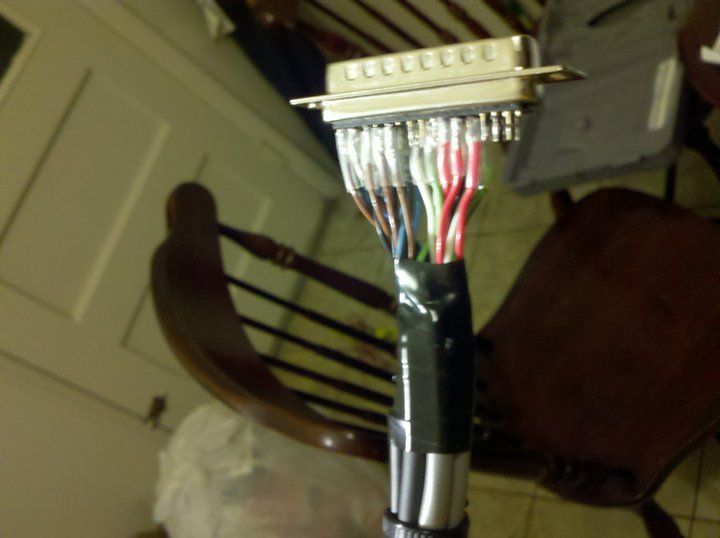

Custom Harness-58882_123463754382509_100001566546817_150404_1738279_n.jpg
Track is offline   Reply With Quote
Old 09-15-2011, 08:52 PM   #16
zoomzoom
Thread Starter

FRT_Fun's Avatar

Join Date: Jul 2011
Location: Arizona
Posts: 924
Default

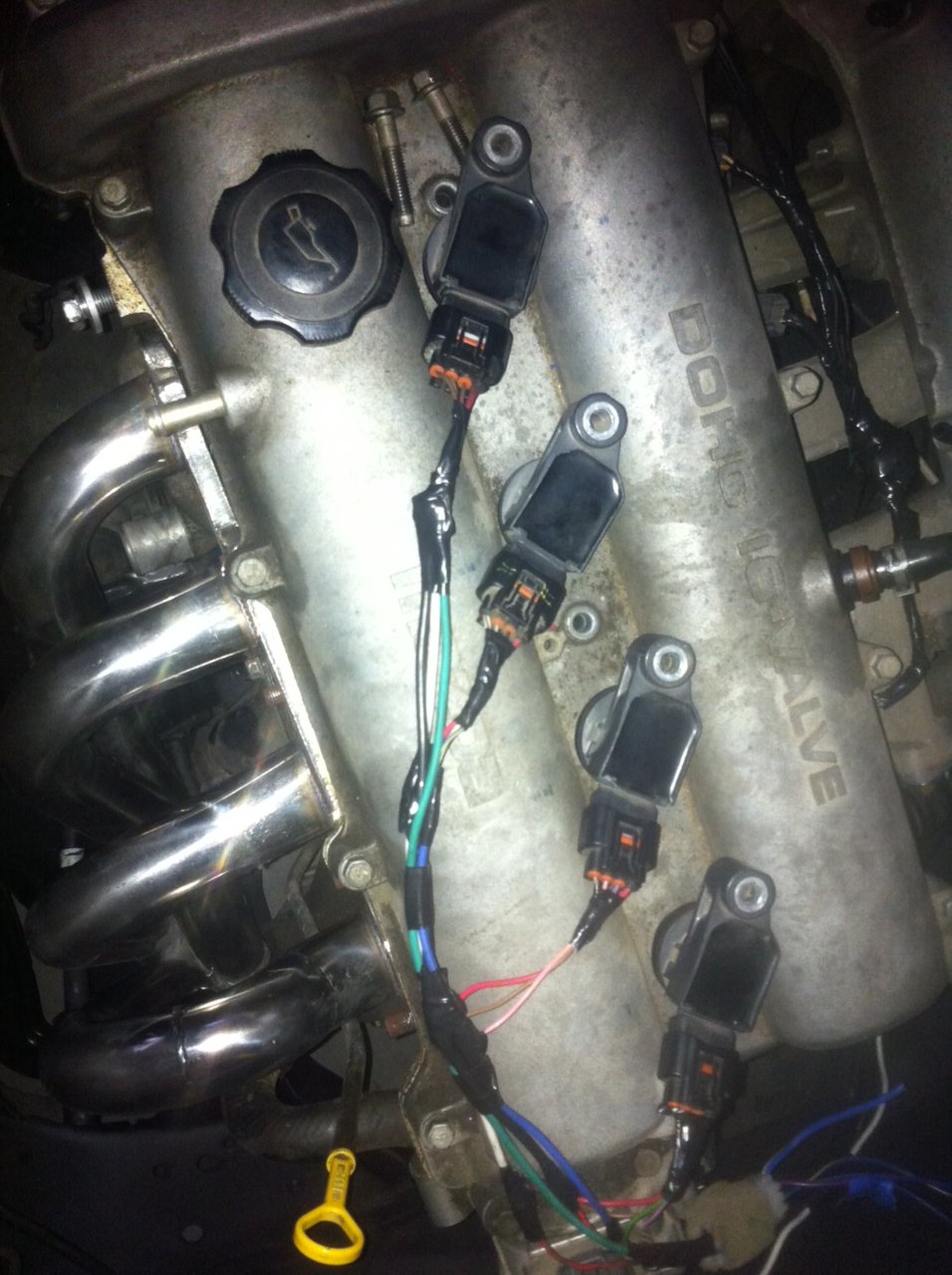

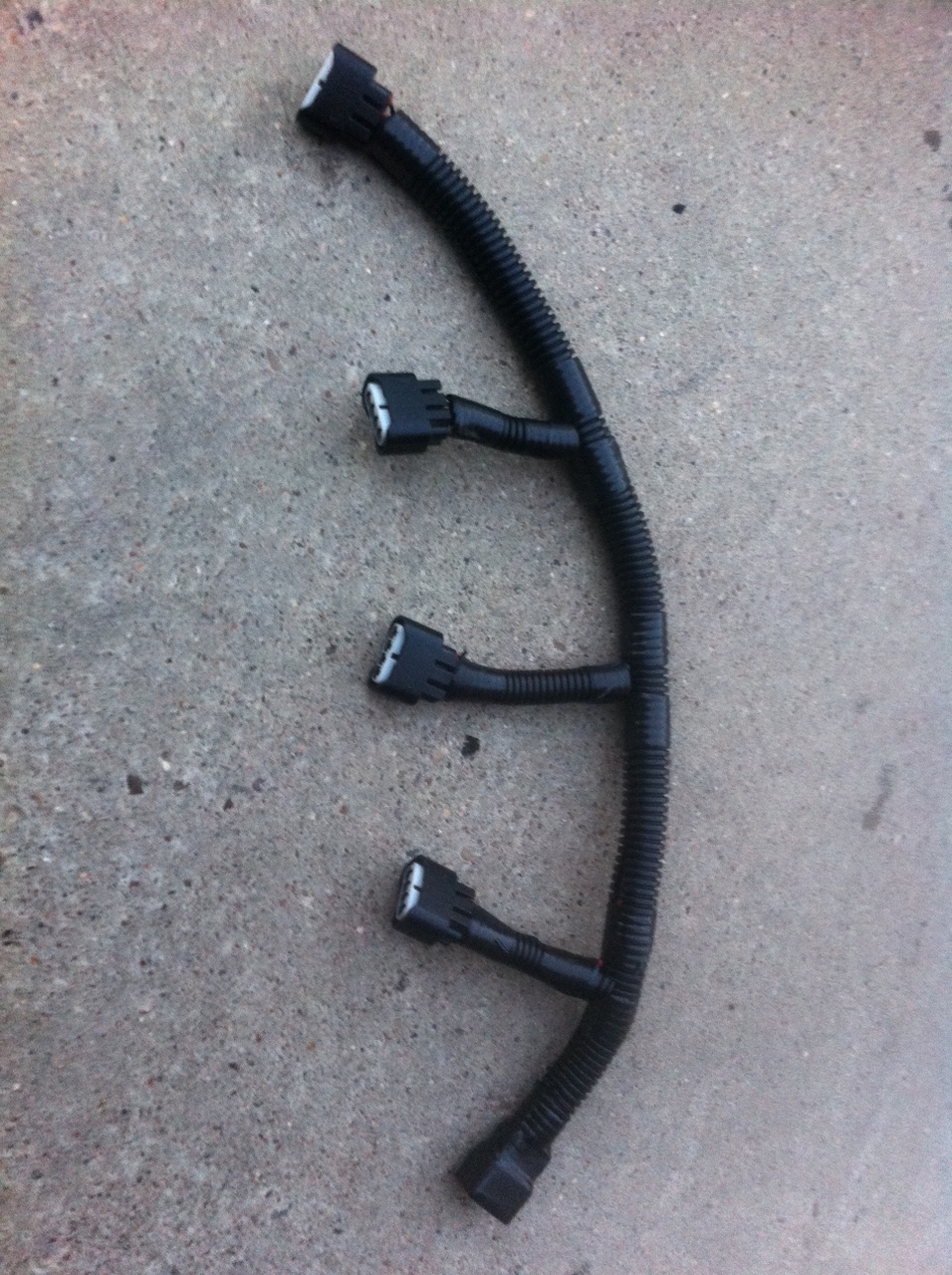

Wired up the COPs. Still need to connect it to the actual harness. Will do that tomorrow.


Attached Thumbnails
Custom Harness-photoay.jpg   Custom Harness-photo2vl.jpg
FRT_Fun is offline   Reply With Quote
Old 09-16-2011, 09:03 AM   #17
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

that looks great, but I wish there was high-temp electrical tape for those.
MF-Brain is offline   Reply With Quote
Old 09-16-2011, 09:47 AM   #18
zoomzoom
Thread Starter

FRT_Fun's Avatar

Join Date: Jul 2011
Location: Arizona
Posts: 924
Default

Quote:
Originally Posted by MF-Brain View Post
that looks great, but I wish there was high-temp electrical tape for those.
Yea. We will see how it works out. I need to figure out a hold down now. Might just go with the standard one on the MT faq.
FRT_Fun is offline   Reply With Quote
Old 09-16-2011, 11:19 AM   #19
y8s
Moderbator

y8s's Avatar

Join Date: Jul 2011
Location: DC Metro
Posts: 258
Default

self fusing silicone tape is good to 400 degrees F. it's really the best solution.

http://www.mcmaster.com/#self-fusing-tape/=e375z8
y8s is offline   Reply With Quote
Old 09-16-2011, 11:25 AM   #20
zoomzoom
Thread Starter

FRT_Fun's Avatar

Join Date: Jul 2011
Location: Arizona
Posts: 924
Default

Quote:
Originally Posted by y8s View Post
self fusing silicone tape is good to 400 degrees F. it's really the best solution.

http://www.mcmaster.com/#self-fusing-tape/=e375z8
How much of a pain is it to apply. Looks difficult to work with? But looks effective.
FRT_Fun is offline   Reply With Quote
