Old 04-01-2012, 07:06 PM   #1
MFz Lurker
Thread Starter

Join Date: Feb 2012
Location: Edom, Texas
Posts: 41
Default Thermostat leak

Am I...

1. Overfilling the radiator
2. Overfilling the reservoir
3. Installing gasket backwards...In pic below is red circle facing down on top of thermostat or facing up towards thermostat cover...does it matter.
4. Bolts are not original but they are are the same length. Match em' up at home depot.


Got everything else going....drain **** finally good to go. Fans not kicking on expect when running AC but hey that's another thread I guess.

Please someone tell me what I am doing wrong. Thanks.
It's a freakin gasket and thermostat jeez....This is ridiculous hehehehehe

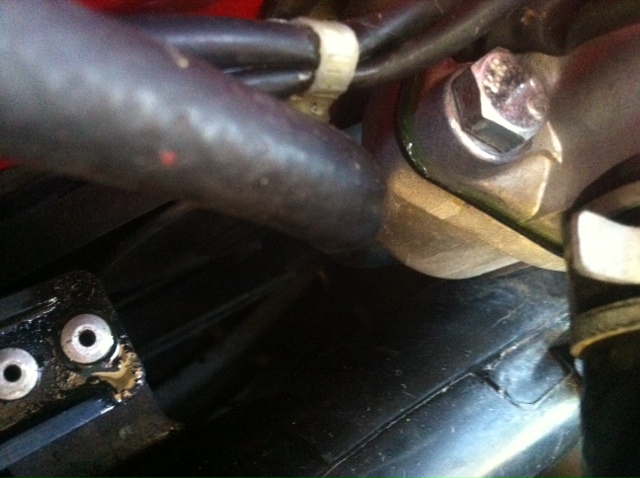

Attached Thumbnails
Thermostat leak-securedownload-1.jpeg   Thermostat leak-securedownload-2.jpeg   Thermostat leak-securedownload.jpeg
shultzee13 is offline   Reply With Quote
Old 04-01-2012, 07:54 PM   #2
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

thermostat goes first, then the gasket. I didn't have to put silicone on it personally. Make sure both sides of the water neck are cleaned up and flat.
Track is offline   Reply With Quote
Old 04-01-2012, 08:24 PM   #3
MFz Lurker
Thread Starter

Join Date: Feb 2012
Location: Edom, Texas
Posts: 41
Default

That is correct. I installed it this way. Thermo first. Housing is brand new...Along with thermo cover. Both from Rosenthal.
The ONLY thing is not OEM is the bolts.

I didn't use a sealant either...but lots of people don't. Every reply on here is "dude the gasket is your sealant."

Guidance??? ideas???
shultzee13 is offline   Reply With Quote
Old 04-01-2012, 09:28 PM   #4
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

where is the leak at? You sure its not left-over coolant dripping down?
Track is offline   Reply With Quote
Old 04-01-2012, 09:37 PM   #5
MFz Lurker
Thread Starter

Join Date: Feb 2012
Location: Edom, Texas
Posts: 41
Default

No it's not left over coolant. It's fresh. It's coming from around the thermostat gasket. It doesn't make any sense. New thermostat, new housing, new thermo cover. It just leaks. Gotta be a reason. I guess I gotta use a sealant.
shultzee13 is offline   Reply With Quote
Old 04-01-2012, 09:39 PM   #6
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

do you have access to a belt sander? make sure all the matting surfaces are truly flat.
RedTurboMiata is offline   Reply With Quote
Old 04-01-2012, 10:00 PM   #7
MFz Lurker
Thread Starter

Join Date: Feb 2012
Location: Edom, Texas
Posts: 41
Default

They are all completely flat yes. I made sure of that. It's never had a gasket on it. Virgin material. Is that the problem? It's flat as a fiddle though.
shultzee13 is offline   Reply With Quote
Old 04-01-2012, 11:40 PM   #8
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

Skip gasket use high temp sealant, see what happens.
RedTurboMiata is offline   Reply With Quote
Old 04-02-2012, 10:43 AM   #9
MFz Fanatic
iTrader: (1)

Join Date: Nov 2011
Location: Gurnee, IL
Posts: 1,193
Default

I found Jayce's leaking this weekend as well. Tightened it up and cracked the housing. Luckily I had just completed my coolant reroute and had a spare housing. Mine was leaking after the coolant reroute and I was using a napa gasket. I ended up buying on from Rosenthal with that little ring on the inside.

I think JC needs to do the same. I also believe the sticky side goes on the housing not the thermostat correct?
flying_solo is offline   Reply With Quote
Old 04-02-2012, 11:01 AM   #10
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

i wouldn't reuse that gasket. but either use a gasket or rtv sealant (Ultra Gray), not both. if you use rtv, then you have to wait untill it fully cures before you fill the fluid back up.


I dont see where it's leaking in the pics. The fans only come on when you hit 207F. So that's good they arent coming on.
MF-Brain is offline   Reply With Quote
