Track Jan 17, 2012 02:15 PM

paper towels and a squirt bottle. lol.

RedTurboMiata Jan 17, 2012 02:17 PM

i dont see that working to well, without a truck load of paper towels.
https://www.miataforumz.com/attachme...ine=1326499441

flying_solo Jan 17, 2012 02:54 PM

Put a big rubber maid tray underneath and gentle on the rinsing?

curly Jan 17, 2012 07:19 PM

Simple green. Spray heavily, wait 5 minutes, wipe down, thank me later.

RedTurboMiata Jan 18, 2012 12:39 AM


Originally Posted by curly (Post 9158)
Simple green. Spray heavily, wait 5 minutes, wipe down, thank me later.

ill try that tomorrow, so it cleans up brake fluid/rust/peeling paint well. and curly when i get the MS installed, do you have a basic idea how the tables should look on a greddy car.

curly Jan 18, 2012 01:12 AM

Use diyautotune's base map for 1.6 w/o AFM:
http://www.megasquirtpnp.com/models/...20no%20AFM.msq

I can then give you my AFR target table, and tunerstuido's auto tuning can do most of the rest, with a little smoothing on your part.

Unfortunately tunerstuido is now out of beta, so you need to pay $50 (on sale now down from $70!) to use the auto tune feature. If you can't afford it, use the lite version which is free to acclimate yourself to their user interface, even though it's nearly identical to megatune.

What's your target boost?

P.S. Simple green is decent for grease, but it sounded like you were wanting to hose down the engine bay with a...hose. It'll work much better than that. It's somewhere between water and brake cleaner (which will eat paint).

P.P.S. It won't eat paint.

curly Jan 18, 2012 01:18 AM

2 Attachment(s)

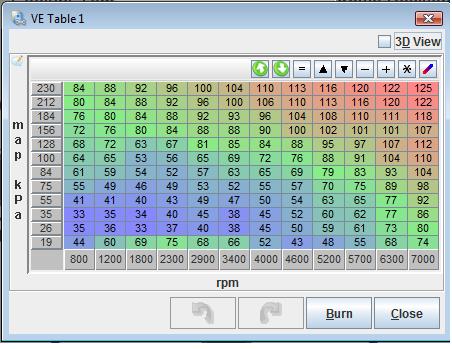

But I'll be nice, here's my current fuel map, built off the base map.
https://www.miataforumz.com/attachme...ine=1326871109

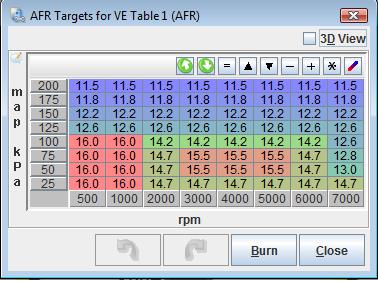

And my AFR target table, built as a compilation of a few posted by wayne_curr, Jeff, and JP.
https://www.miataforumz.com/attachme...ine=1326871109

My spark map is fairly conservative, I'd just use the base map's spark table as long as it runs within your target boost level, which is why I asked you about that earlier.

RedTurboMiata Jan 18, 2012 09:18 AM


Originally Posted by curly (Post 9174)
Use diyautotune's base map for 1.6 w/o AFM:
http://www.megasquirtpnp.com/models/...20no%20AFM.msq

I can then give you my AFR target table, and tunerstuido's auto tuning can do most of the rest, with a little smoothing on your part.

Unfortunately tunerstuido is now out of beta, so you need to pay $50 (on sale now down from $70!) to use the auto tune feature. If you can't afford it, use the lite version which is free to acclimate yourself to their user interface, even though it's nearly identical to megatune.

What's your target boost?

P.S. Simple green is decent for grease, but it sounded like you were wanting to hose down the engine bay with a...hose. It'll work much better than that. It's somewhere between water and brake cleaner (which will eat paint).

P.P.S. It won't eat paint.

K cool, thanks for advice. im hoping to be in the 10psi range, but i might not have enough fuel to get there. i did accidentally over boost this last year to 12 but i dont know what my afr was.

curly Jan 18, 2012 04:25 PM

On your greddy it'll be "fine" to overboost, since your fuel pump will just have to work harder. It just won't be able to keep up with that kind of pressure, and with the wrong disc you'll be trying to add stupid amounts of fuel at higher pressures.

RedTurboMiata Jan 18, 2012 05:26 PM

4 Attachment(s)

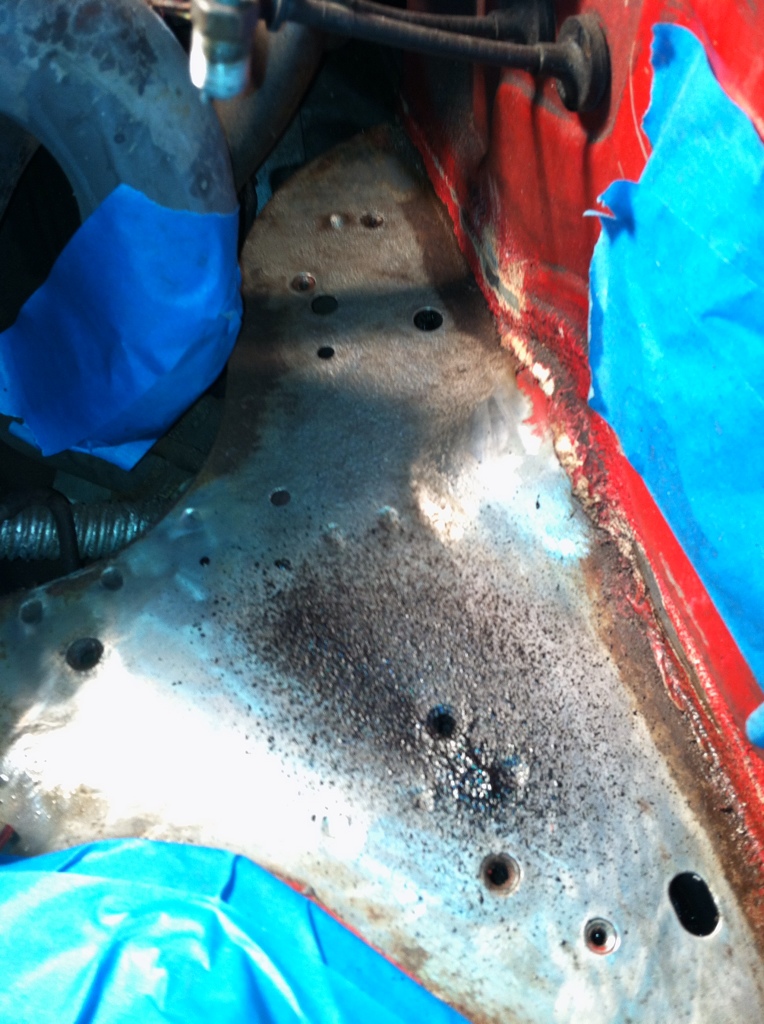

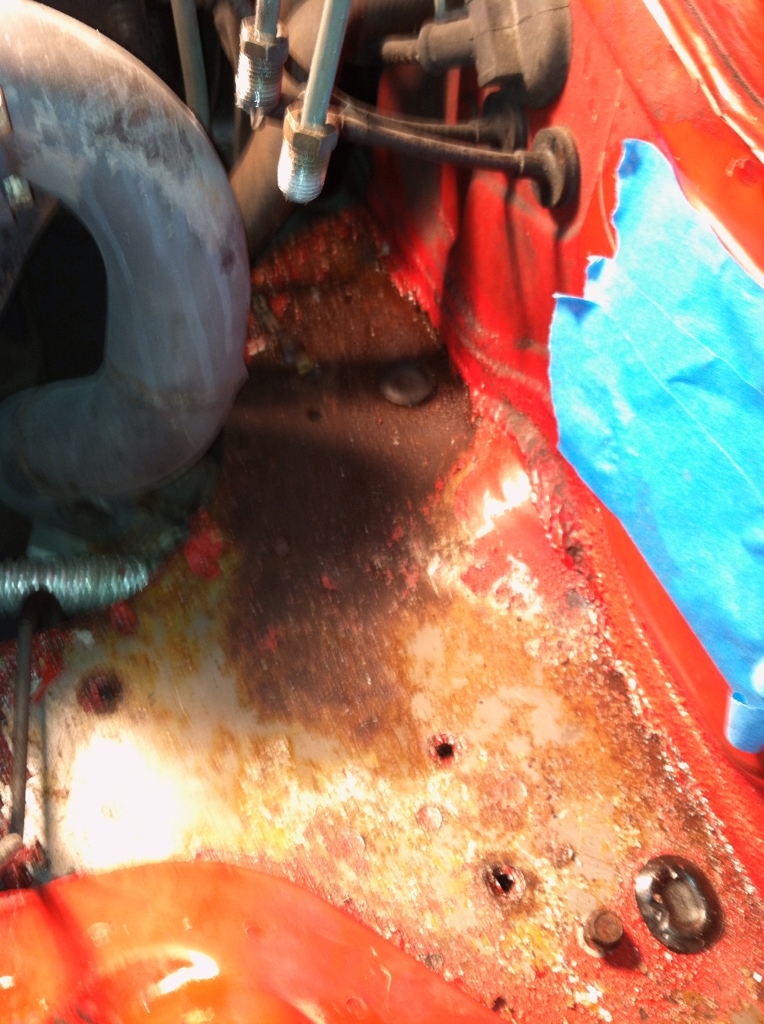

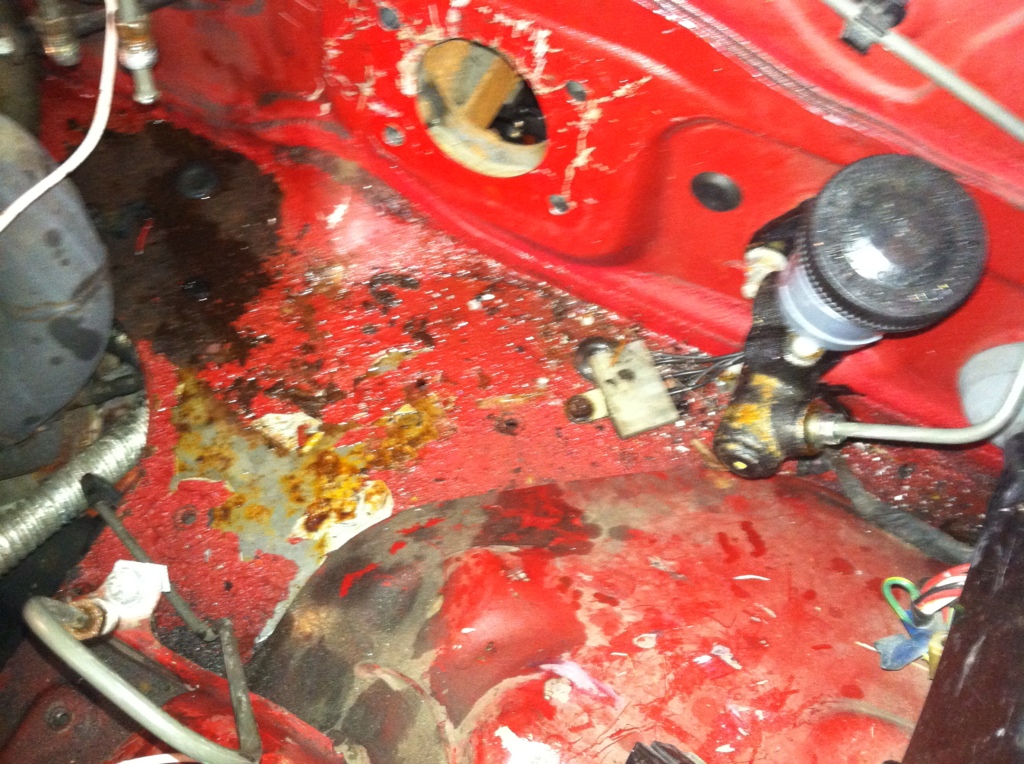

From This
https://www.miataforumz.com/attachme...ine=1326929195
to this
https://www.miataforumz.com/attachme...ine=1326929195
to this
https://www.miataforumz.com/attachme...ine=1326929195

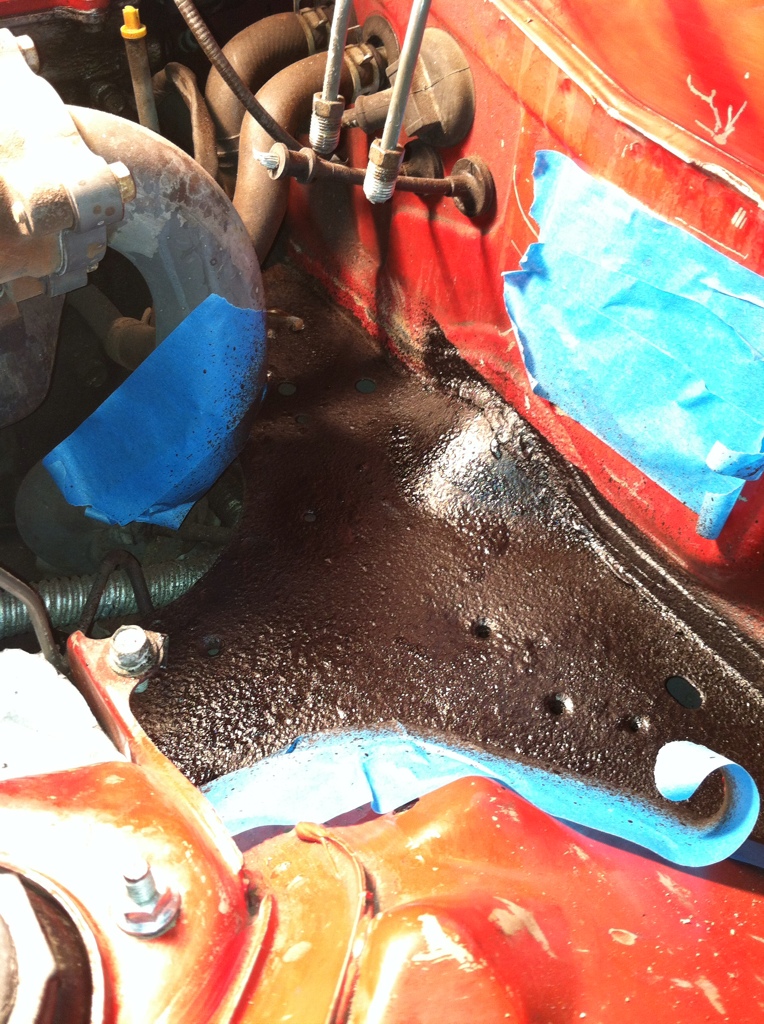

And finally
https://www.miataforumz.com/attachme...ine=1326929195
