Default Megasquirt DIYPNP "How-To" - Step-By-Step Instructions

Quote:
The DIYPNP board lets you build your own plug and play engine management systems. The core of the DIYPNP kit is a MicroSquirt module that plugs into an expansion 'mainboard' with on board circuits for many features, including direct coil control, boost control, knock control, and several general purpose inputs and outputs. You assemble this board and jumper it to a 'connector board' which includes a connector to plug into your existing wiring harness. Now you no longer have to solder together awkward adapter harnesses, or hack up a factory ECU case to get a build-it-yourself, plug and play MegaSquirt ECU.
DIYAUTOTUNE.com has developed a PNP version for the 90-00 Mazda Miata. Below is a step-by-step guide on building your own.

Please Note: The connector board shown is for a Mustang, I wrote this for v8miata.net.

What to buy:

DIYPNP Nippon Denso 76pin Unassembled Kit

http://www.diyautotune.com/catalog/u...Serial Adapter - There are cheaper cables out there, but this is known good on 98, XP, Vista, and Win7. If you buy a different one, make sure the drivers will work for your OS.

That's it! But here are some other recommendations:

MSPNP and DIYPNP IAT Sensor Kit - Aluminum Bung - This Air Intake Temp Sensor allows you to remove the AFM/MAF from the intake path. The stock AIT sensor resides within the AFM/MAF otherwise. You will have to mount the bung onto your intake plumbing and you can wire it back through the MAF plug/connector (wire is included for this).

Innovate MTX-L powersports gauge - sensor - controller - 3845 - I personally wouldn't install an EMS without a wideband, I like the one linked. Installing a wideband o2 sensor to use with the MS makes fine tuning your fuel tables & enrichments a lot easier, and you get a real picture of your AFR mixture that the narrowband simply cannot output.

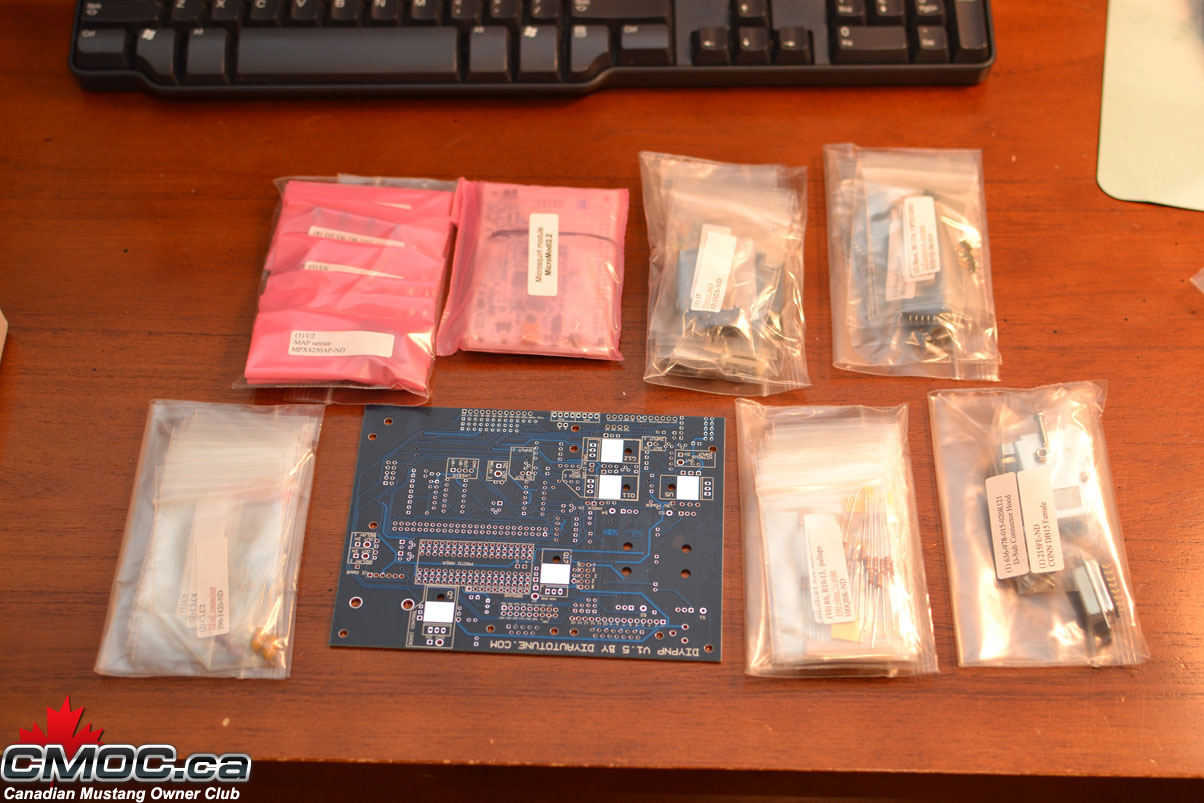

What you get in your package:



This is the contents of your package. Shown in the case & components you will receive. Each package is clearly marked of its contents.

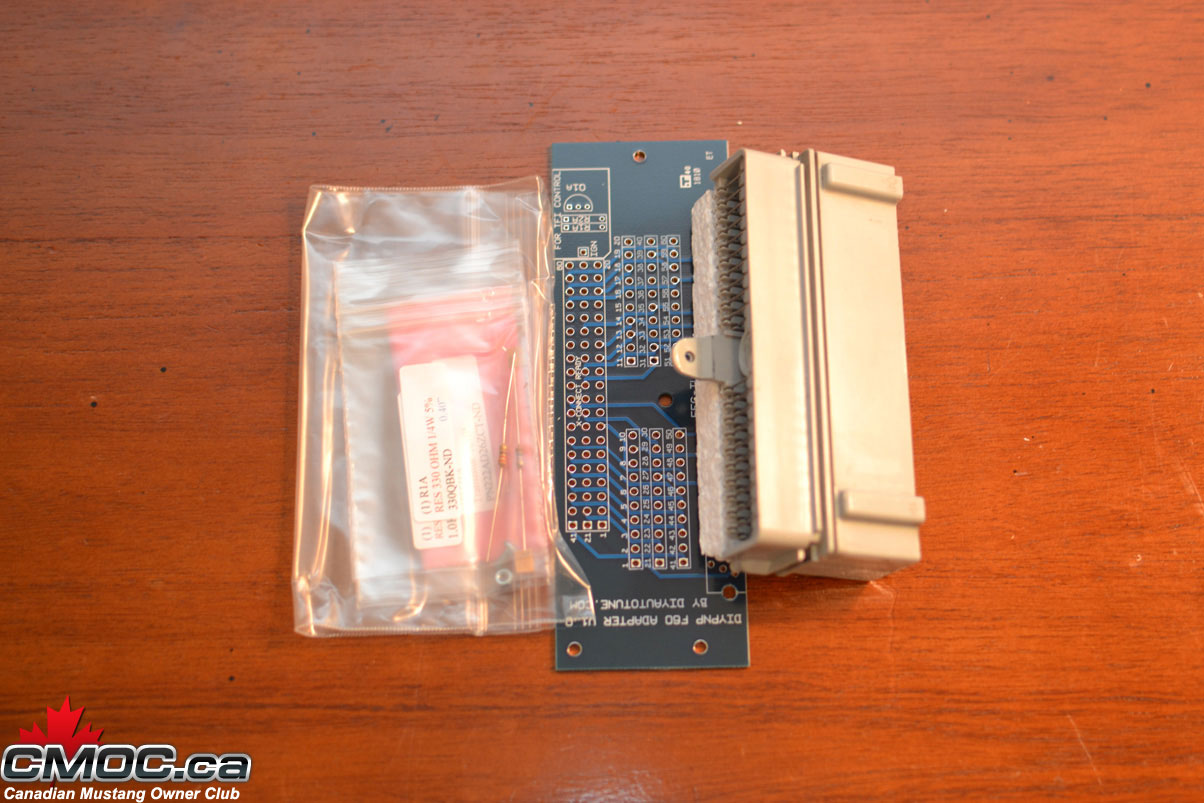

Connector Board


Mainboard and Components.




Mainboard and Connector board aligned.
Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0820.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0821.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0829.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0822.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0827.jpg

Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0828.jpg
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:41 PM   #2
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

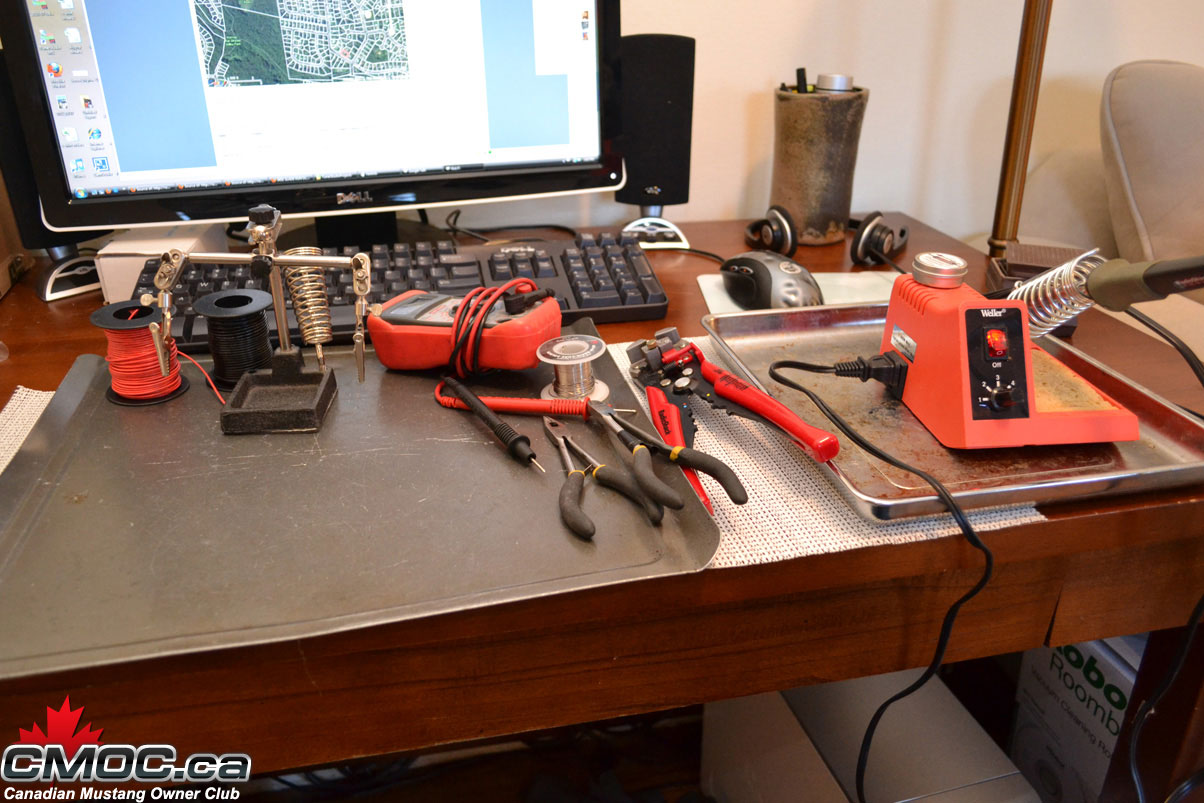

Tools Needed to Assemble:




Soldering Iron. Pictured is my trusty $7 40-watt Radio Shack unit plugged into a $30 Weller station to control the temps. Make sure to use a new clean/sharp tip.

Solder. I use 0.030" Resin-Core 60/40.

Wire cutters & Strippers.

Small Pliers. Handy to hold components.

22awg Solid Copper Wire (Red Spool)

22awg Stranded Copper Wire (Black Spool, unused today)

"Helping-Hands". This little guy helps hold the DIYPNP at a good angle when populating components. You can see how I use it below.

All these tools were purchased at my local Radio Shack.


Note: The multi-meter pictured was unused in this assembly, it's just nice to have one handy in case of troubleshooting.
Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0831.jpg
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:41 PM   #3
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

Main Assembly:

Please review the official assembly documentation here:

1990 1993 usdm-mazda-miata-9093-16b6-mt
1994 1995 usdm-mazda-miata-9495-18bp-mt
1996 1997 usdm-mazda-miata-9697-18bp-mt
1999 2000 usdm-mazda-miata-9900-18bp-mt


Not everything is required to be populated in order to run the MS on your miata. You can chose to install it all, or just install what I do below.

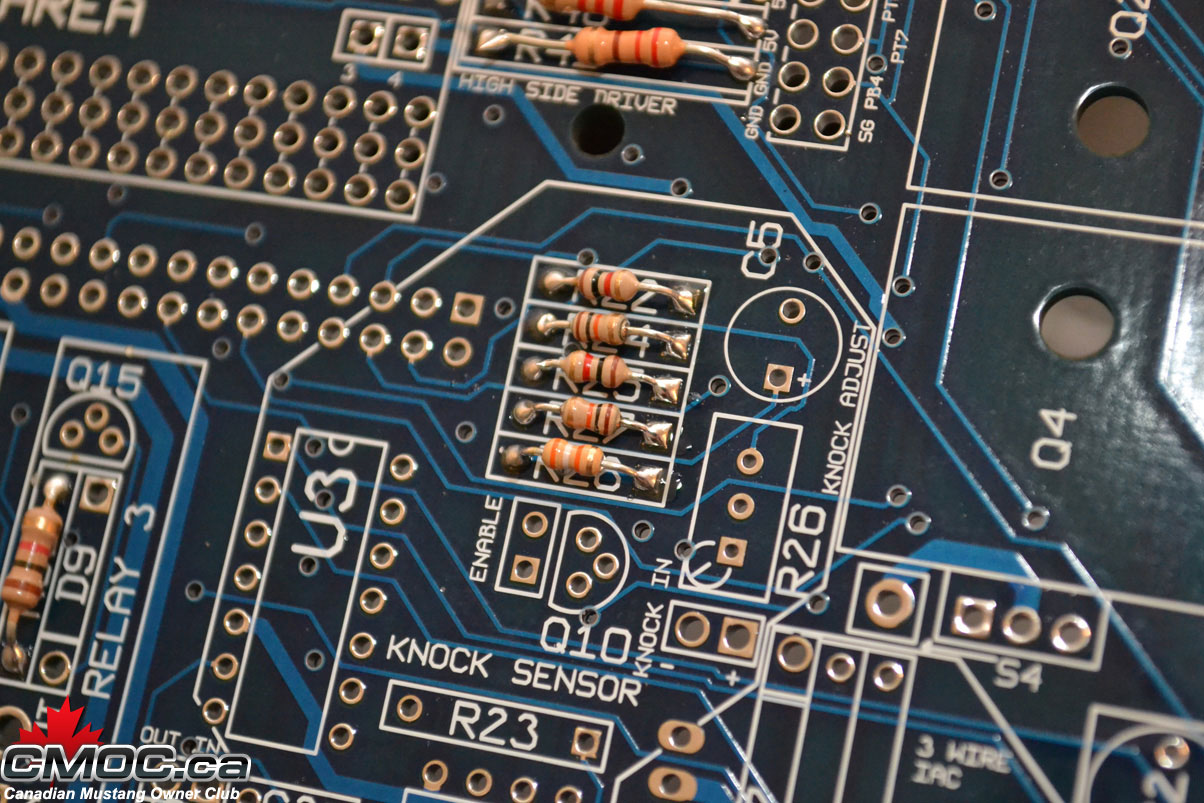

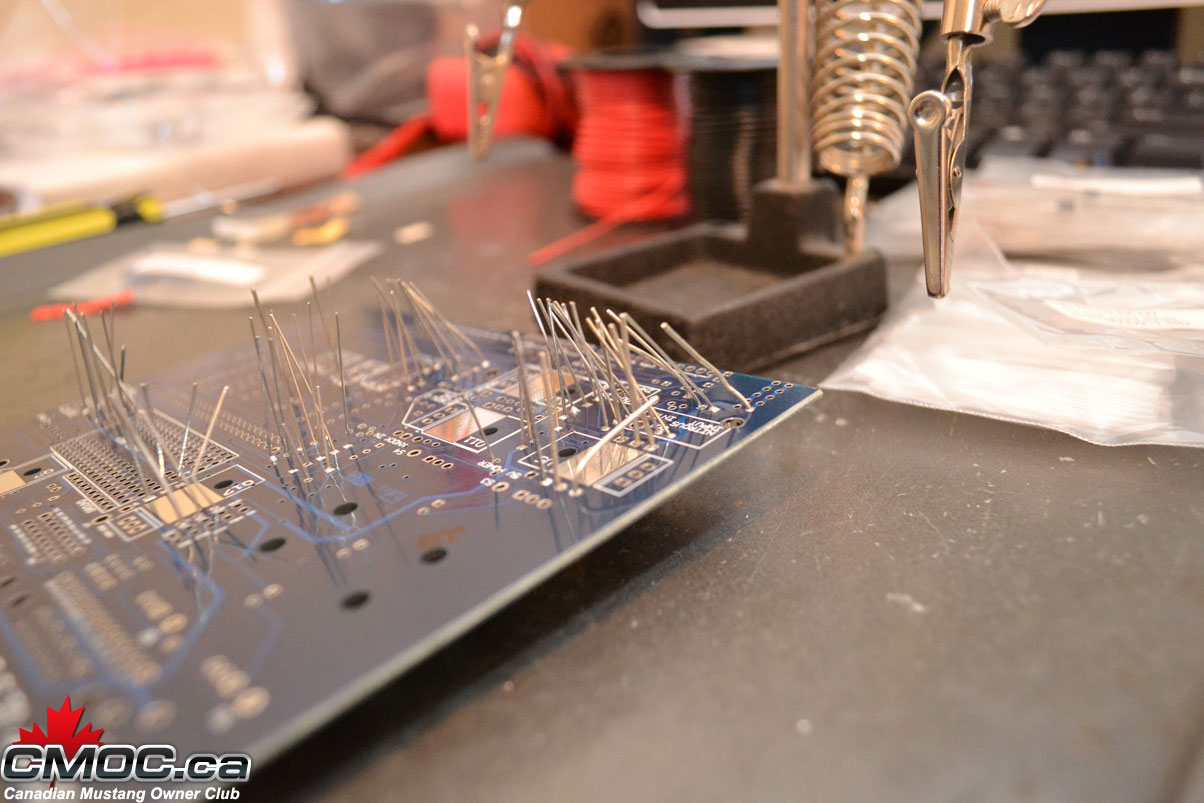

I like to start with the resistors. Setting up the Mainboard on the helping hands, I populate all resistors I chose to install.



Nothing special about it, simply bend the legs into a "U" and place them into the designated holes.

Once all resistors are populated, I then go through and solder them in place. I do this on the top of the board, holding the solder in my left hand I place the solder against the leg of the resistor right at the hole the component is residing in. Then I bring in the hot iron with my right hand and "melt" the solder into the hole.

Just like this:
Just happening to be doing it on the topside for these. You can bend the leads back so you can flip the board over and do them from the backside, but I find it takes extra time without benefit.

and the result should look like this:



For more information on how to solder components, please review the Google machine.

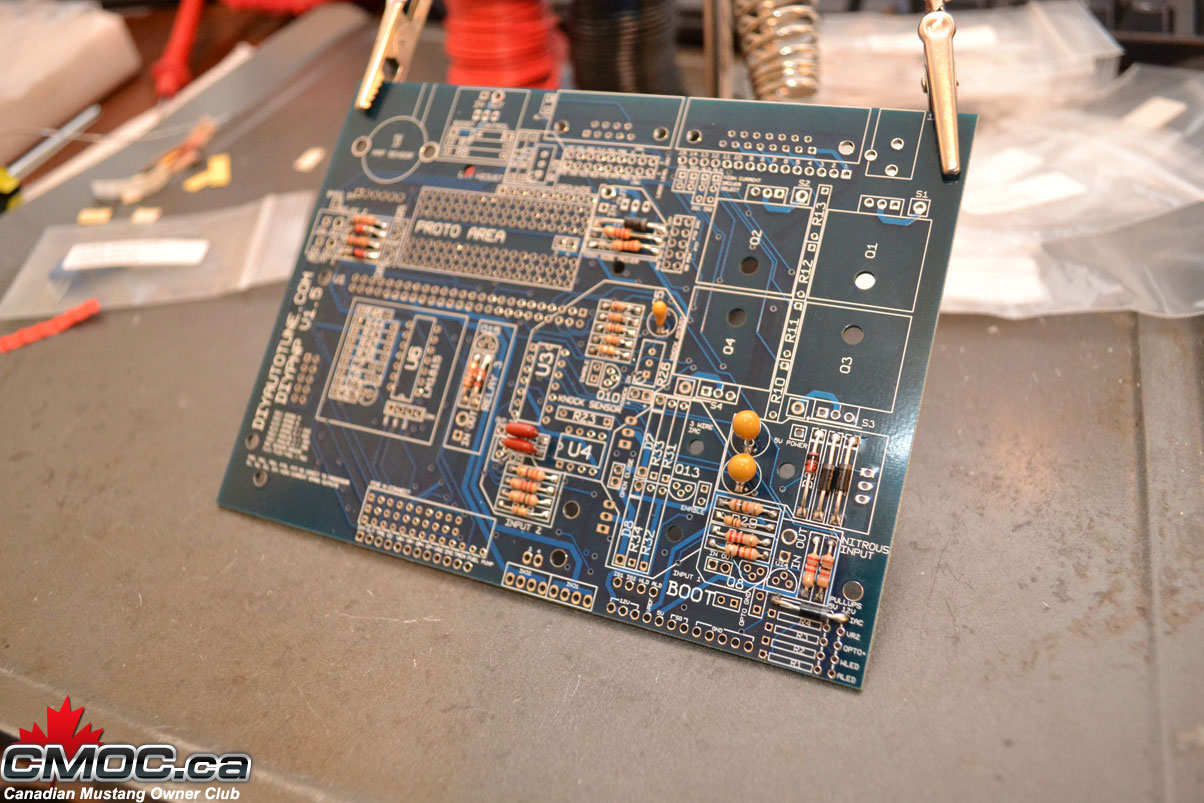

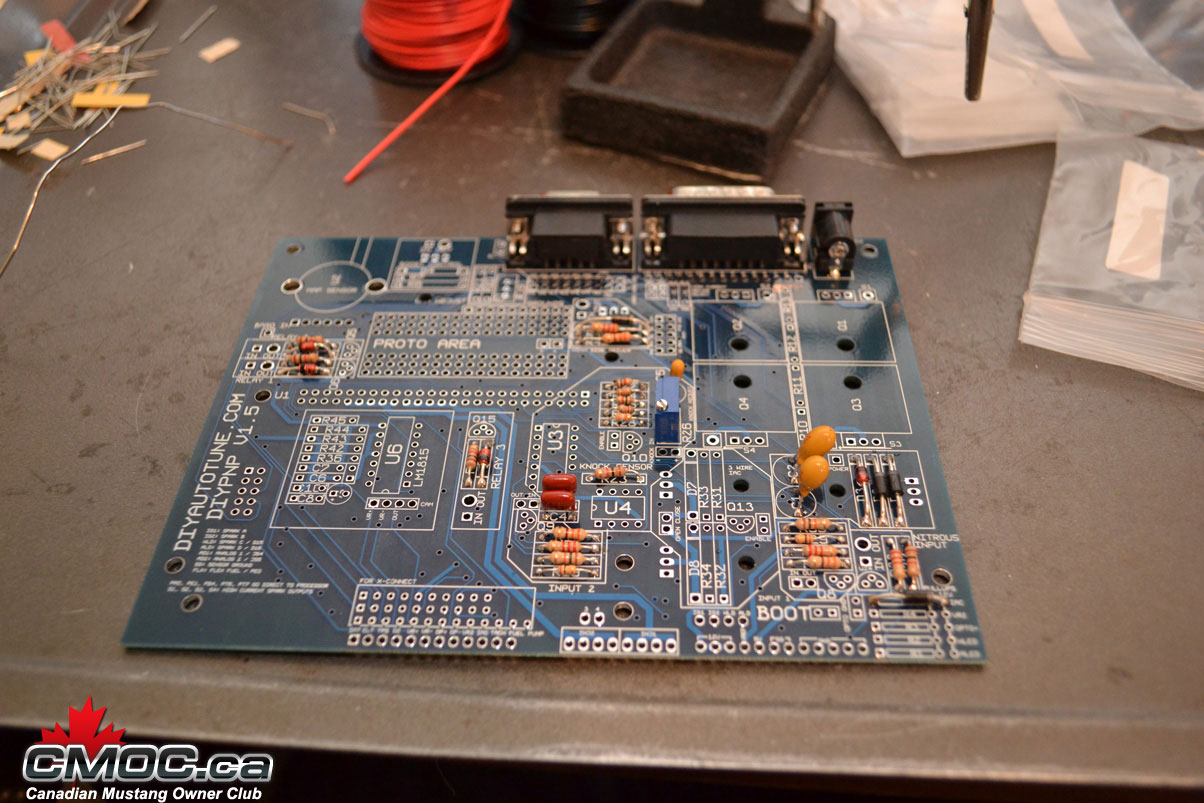

Next I populate the capacitors as shown, please note that three of them are polarity specific. The longer leg goes into the hole stamped with a "+":




then the diodes, banded end is labeled on the board with a thick white line:




At this point I like to remove the MS from the helping hands and cut off all the legs.






Then you can go ahead and solder in the DB15, DB9, and power input. Place them in and solder from below.




You can also toss now install the pot-resistor for the knock circuit if you're building it:

Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0833.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0836.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0837.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0838.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0839.jpg

Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0840.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0841.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0842.jpg
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:42 PM   #4
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

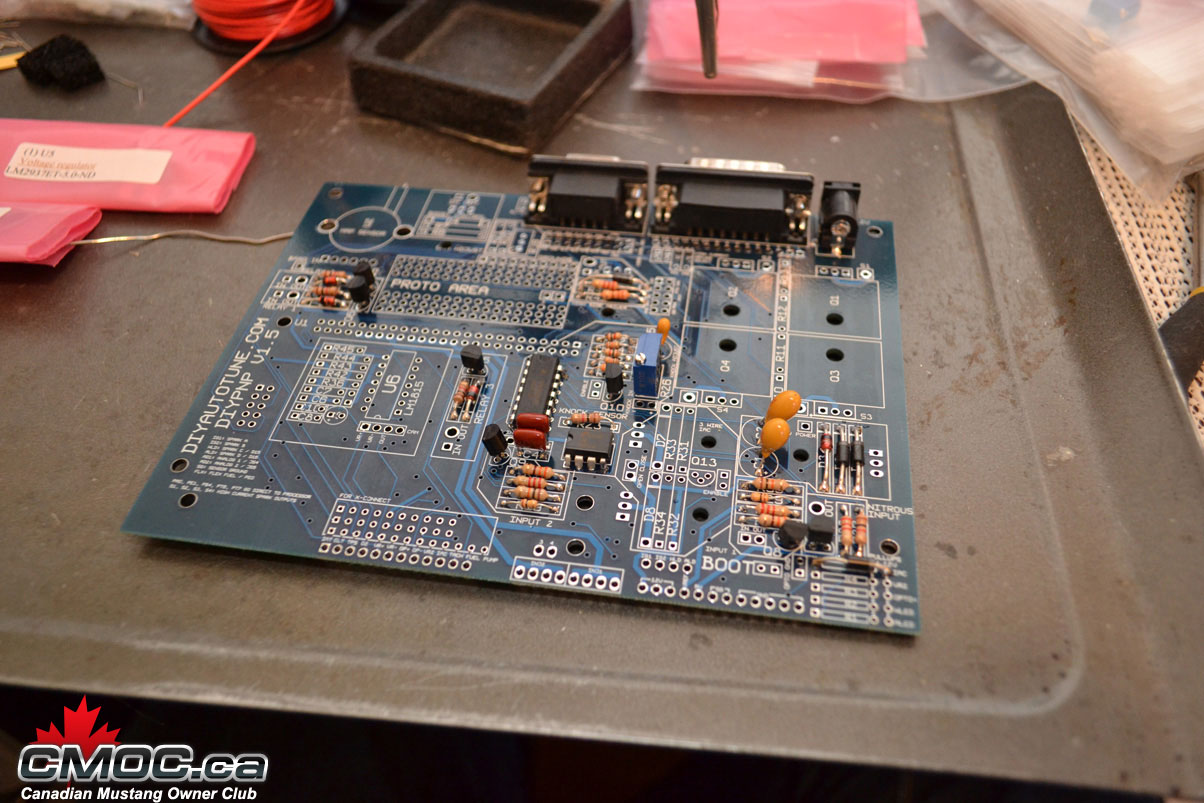

Time to fit the knock sensor drivers and transistors for the input and relay circuits:



You need to squeeze the legs of the drivers inward so they can drop right into the holes, solder one or two legs from above then finish the rest underneath.

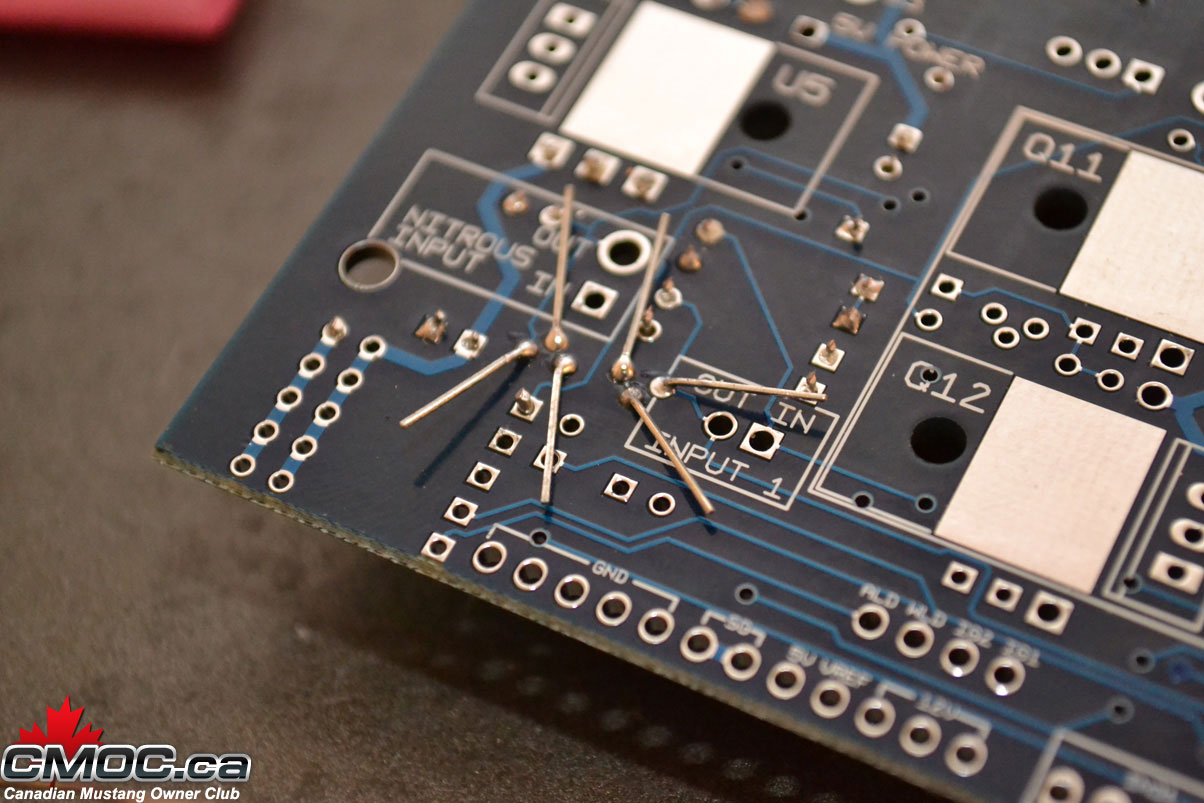

When fitting the transistors, it's good practice to flair the legs on the underside as shown:



Once you start soldering them you'll know why. Be very careful here as it's easy to solder them together. You'll need some de-soldering wire to pull all the solder off.

You should be able to make nice clean, individual joints:



then cut off the excess:

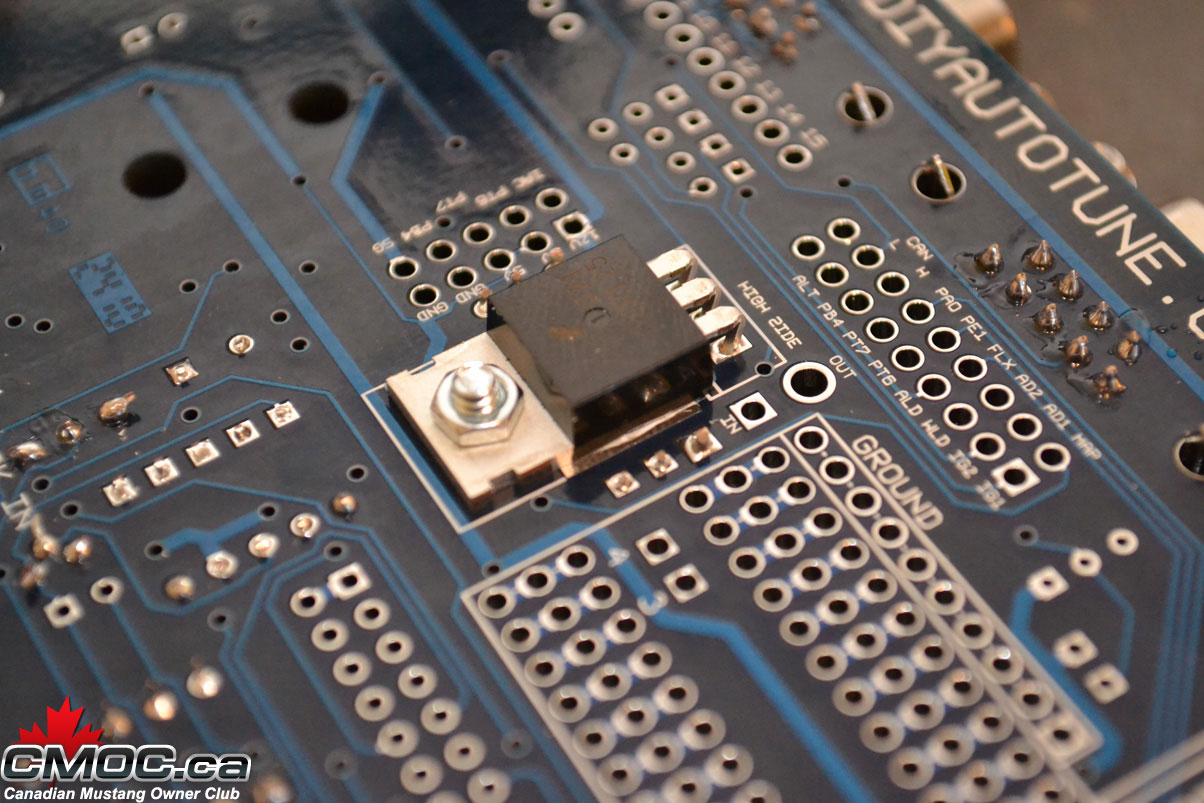

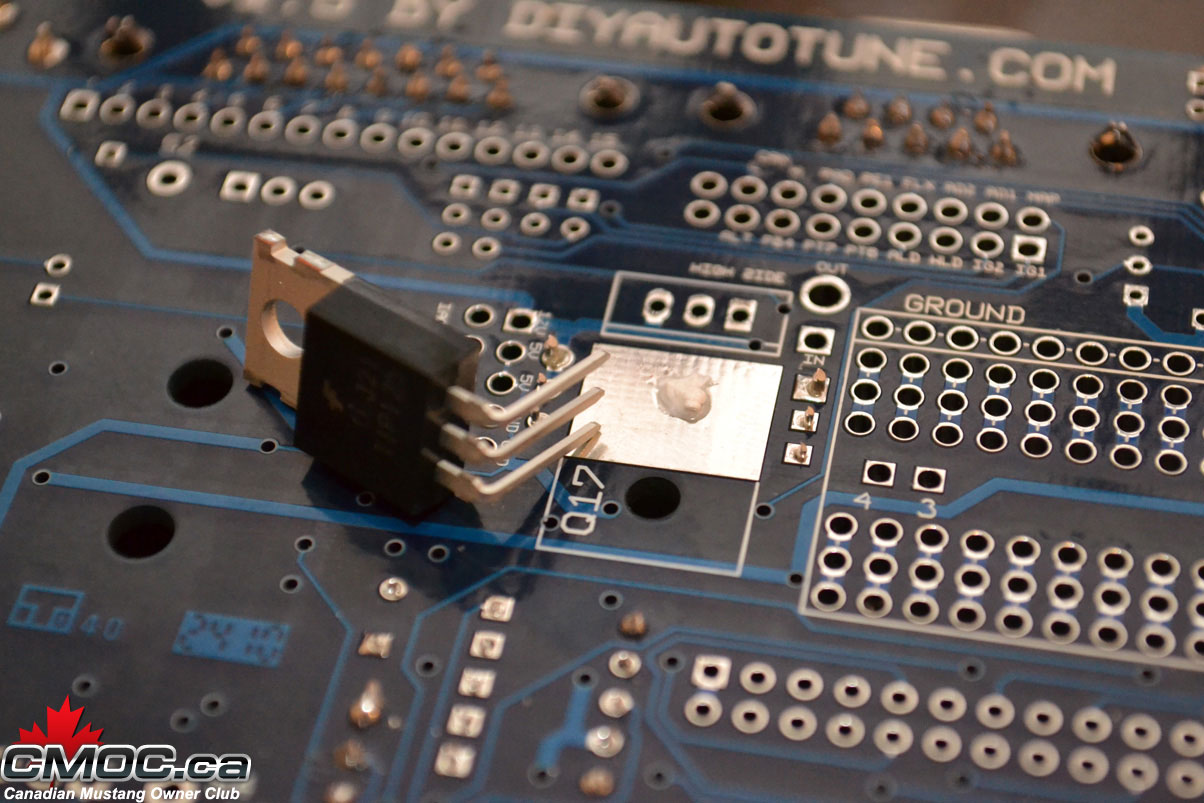

You can now mount the 5v regulator, EBC, and High Side Driver component. Use a small dollop of the heat sink compound on the heatsink area. Here is where the pliers come in handy, Bend the legs so the component can fit right in. Then secure it with the supplied metal screw and nut. Go back and finish soldering once they are all in place.

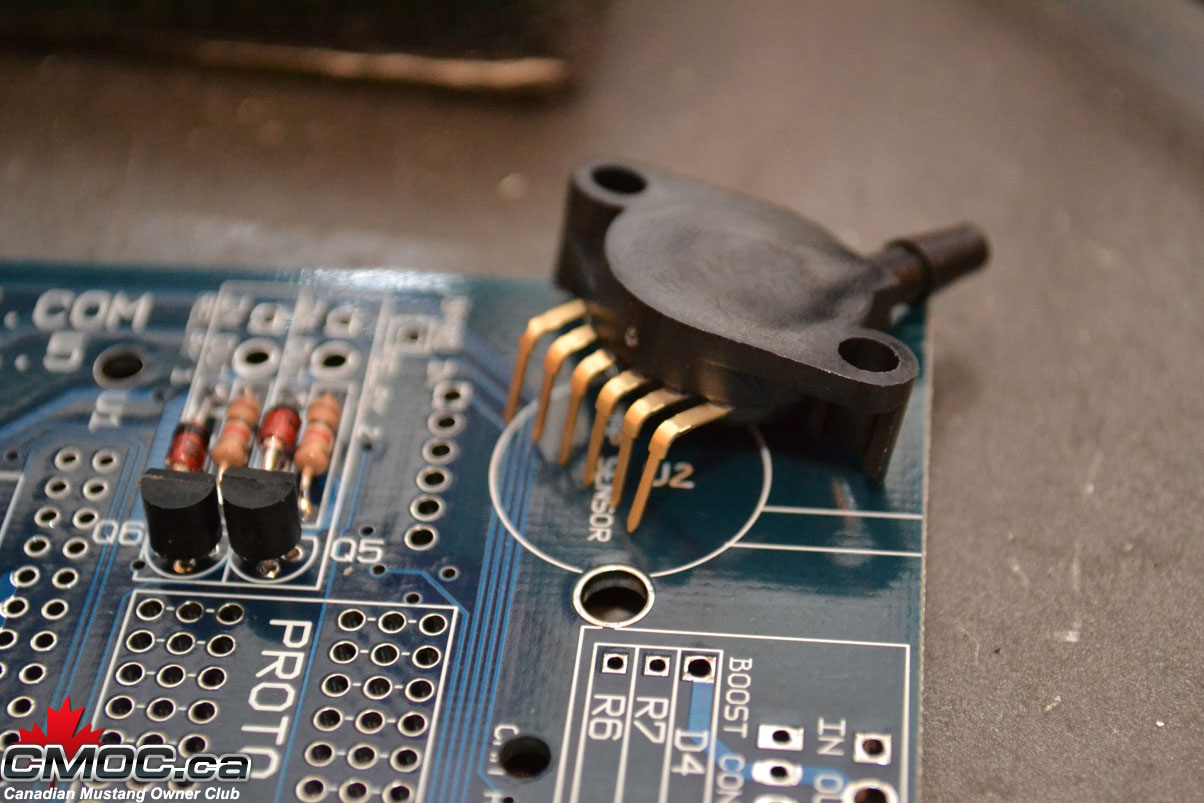

do the same with the MAP sensor, use the two white plastic nuts and bolts:

Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0843.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0844.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0845.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0846.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0847.jpg

Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0848.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0849.jpg
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:42 PM   #5
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

That's it for the components, onward to the CPU.

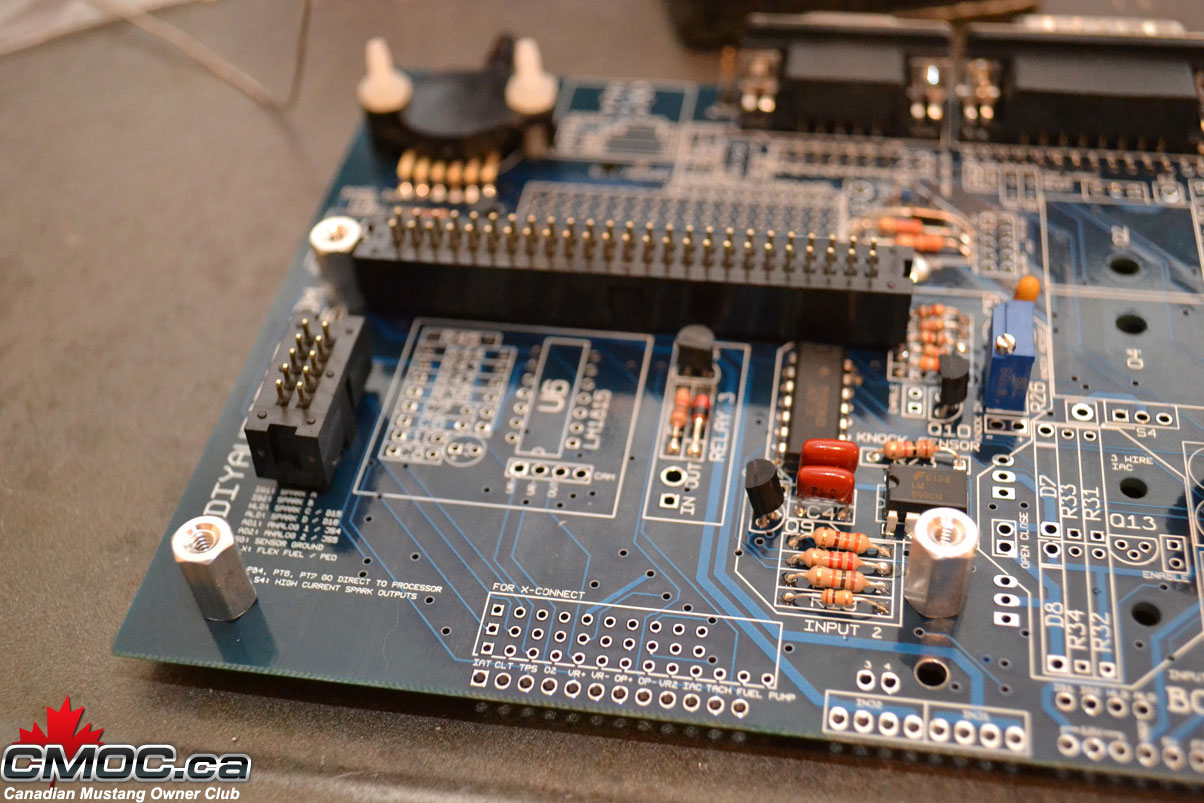

Install the stand offs with the provided screws as shown:



Then push together the headers and place them as shown:



Make sure they sit flush and the tab is pointed inward and the little arrow printed on them is pointing up.

Place the Microsquirt onto, lining up the holes, then screw it in place.

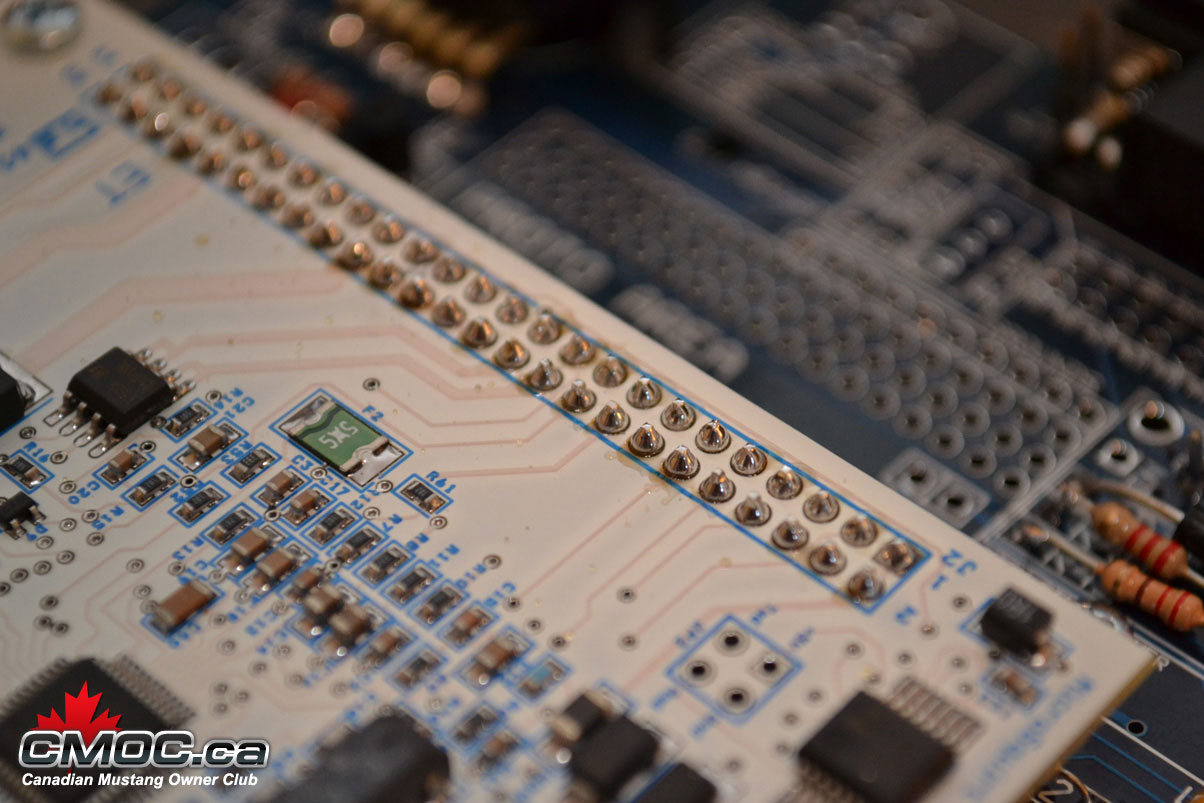

Solder all the joints:



Don't forget the headers on the bottom of the mainboard.

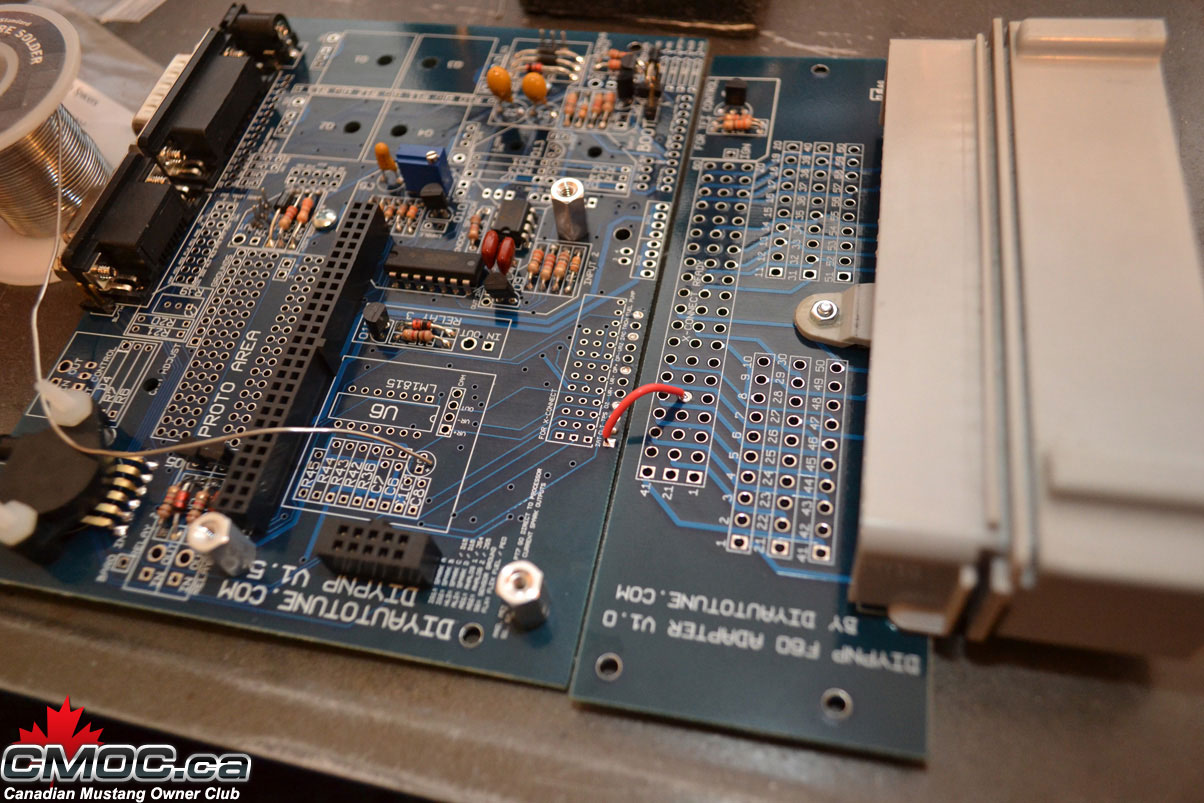

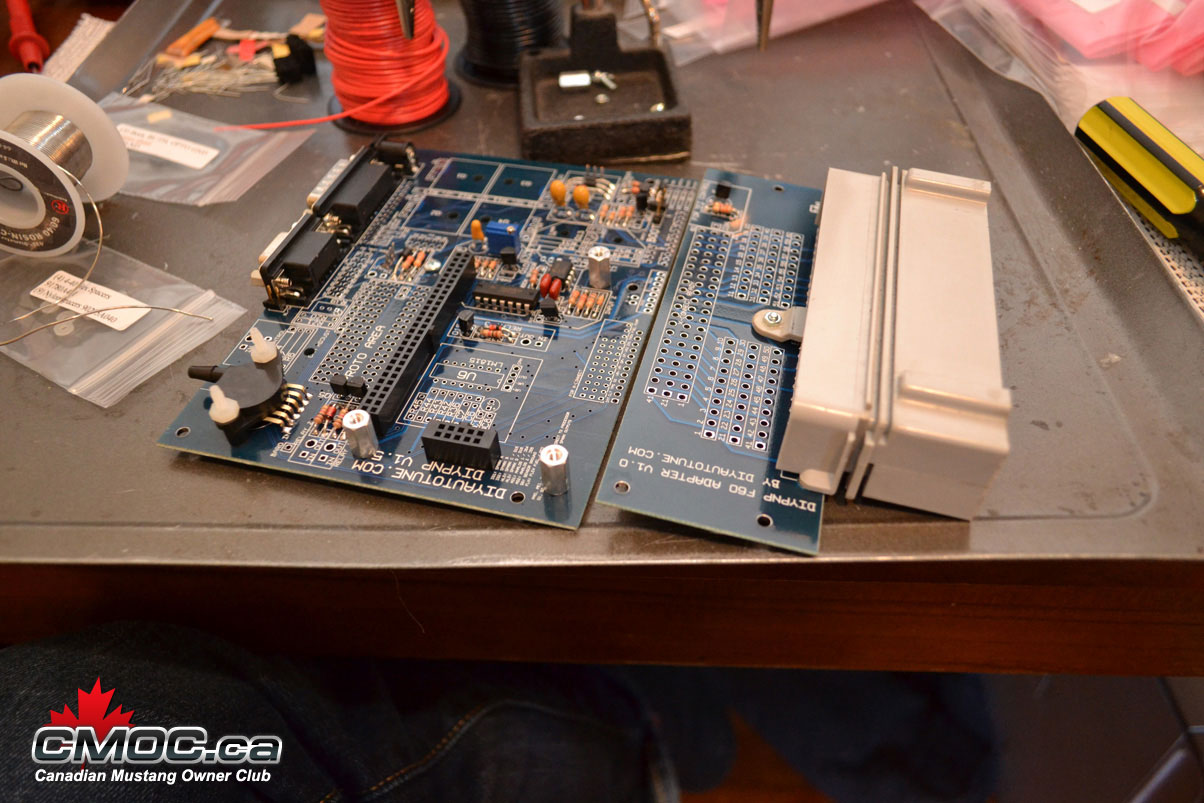

At this point it's time to assemble and connect the connector board. this is the key in how the DIYPNP cleverly is converted into an application specific ECU. Install the connector onto the board, screw it in place carefully, then solder all joints. Populate the small circuit on the board at this point as well.

Once you are ready, line it with the mainboard and we can start connecting the two:




You need to log onto Diyautotune.com's website and follow these directions for the pinouts:

1990-1993
1994-1995
1996-1997
1999-2000

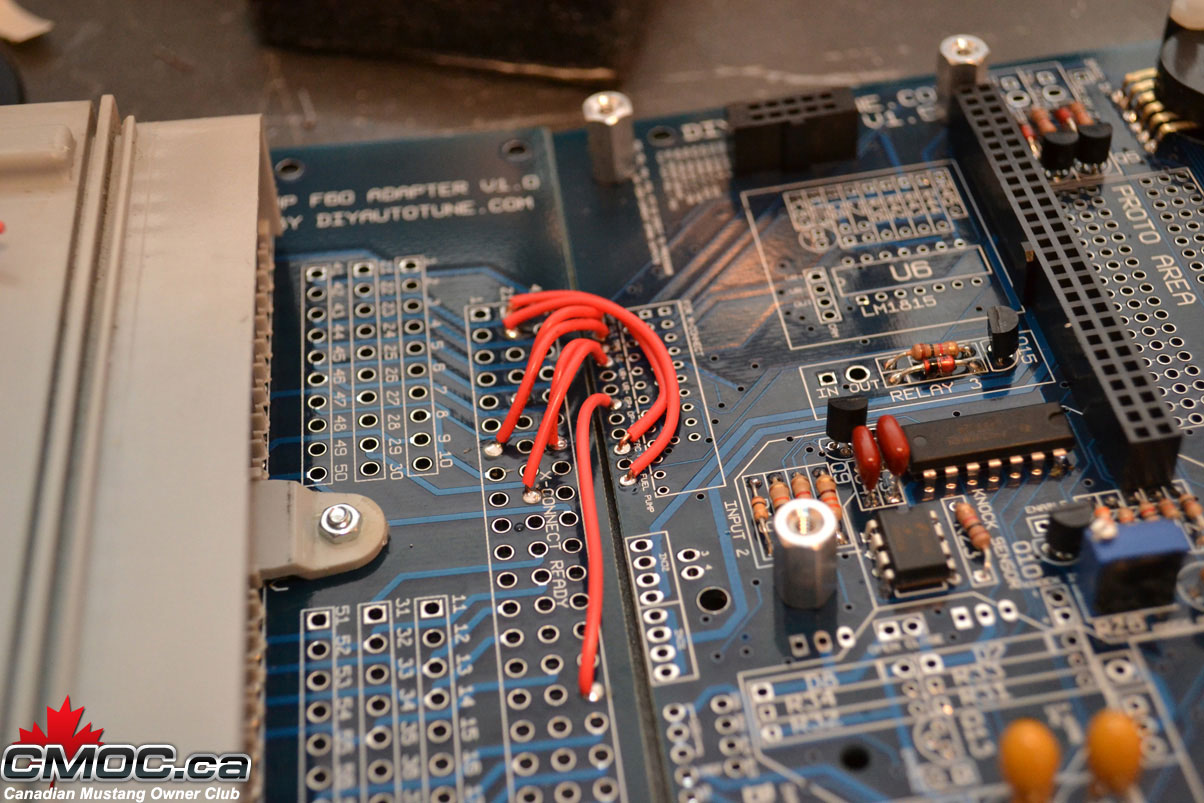

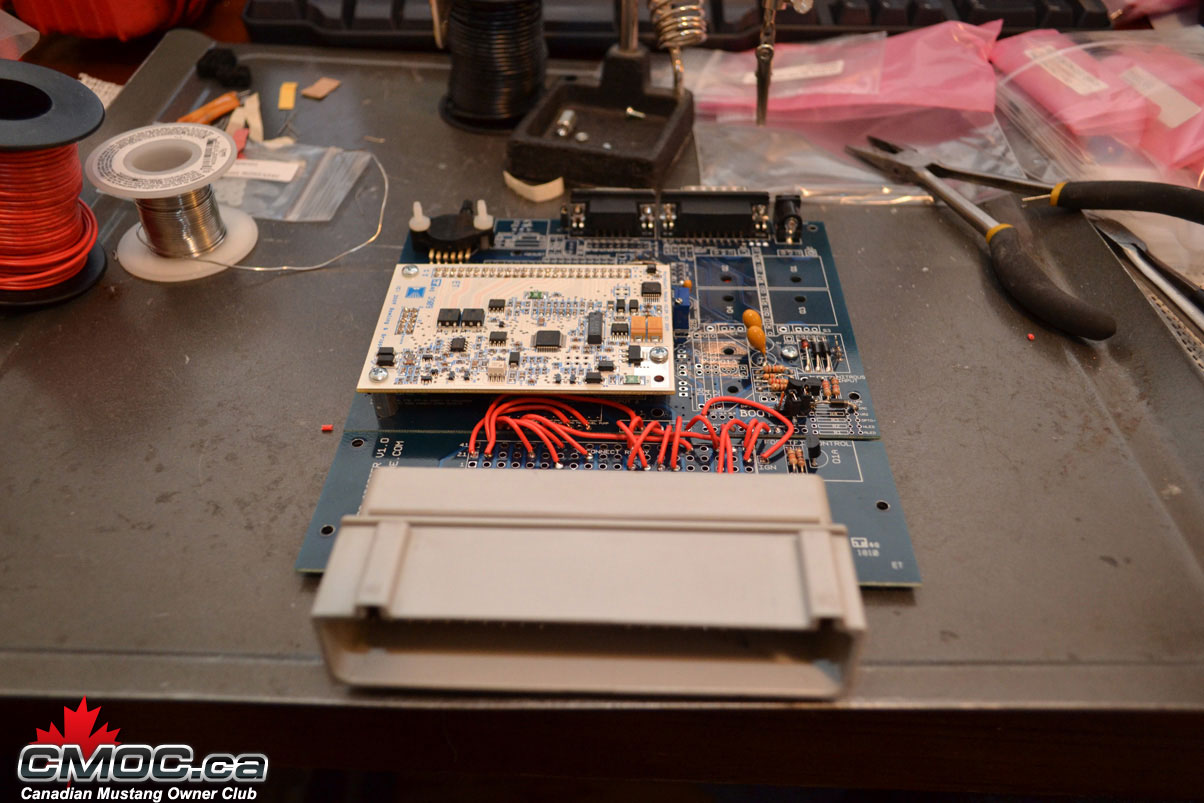

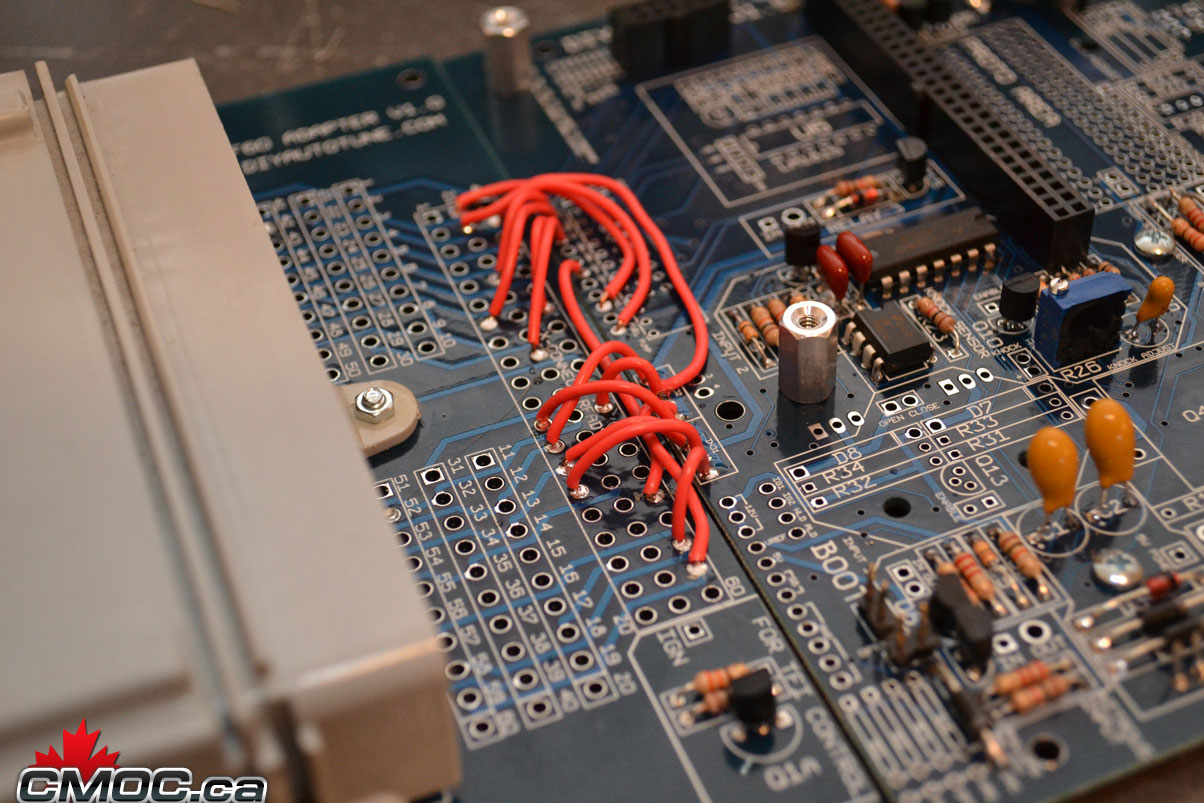

It goes left to right, hole by hole, showing you where to connect the mainboard to the connector board.









and done.
Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0850.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0851.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0852.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0853.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0854.jpg

Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0855.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0856.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0857.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0858.jpg
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:42 PM   #6
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

At this point you are done with the assembly. You can go further and populate other features of the board. You can use the relay circuits to drive things like fans and switches, the EBC driver, Water Injection, Clutch Input, etc.

If you need help at this point, please contact me and I can help you.

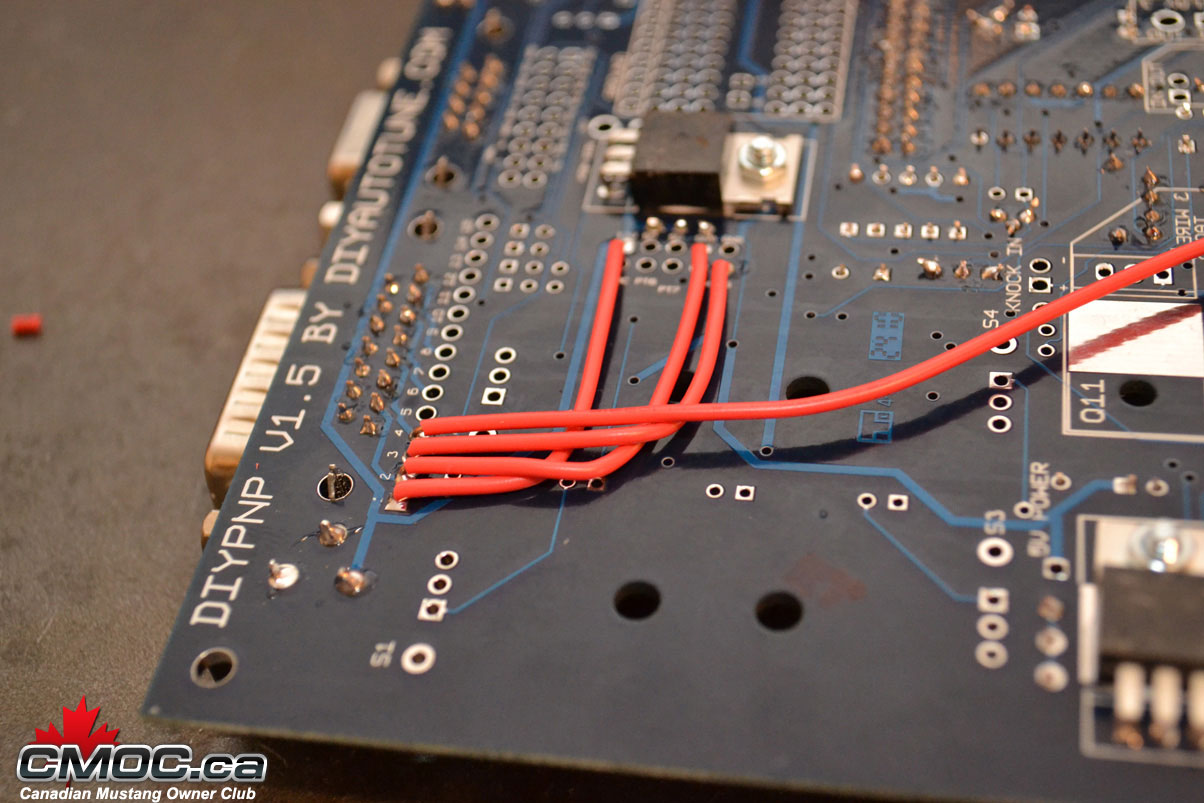

A great thing to do now is populate the inputs/outputs for your DB15 connector. This is a blank canvas for simple wiring to and from your MS.

I like to populate mine like this:



#1 - 12v
#2 - GND
#3 - SG
#4 - O2

This gives me a perfect place to wire up my wideband o2 sensor. I can use the power, ground, sensor ground to power the unit, and then the o2 input on #4 to send the signal into the MS.

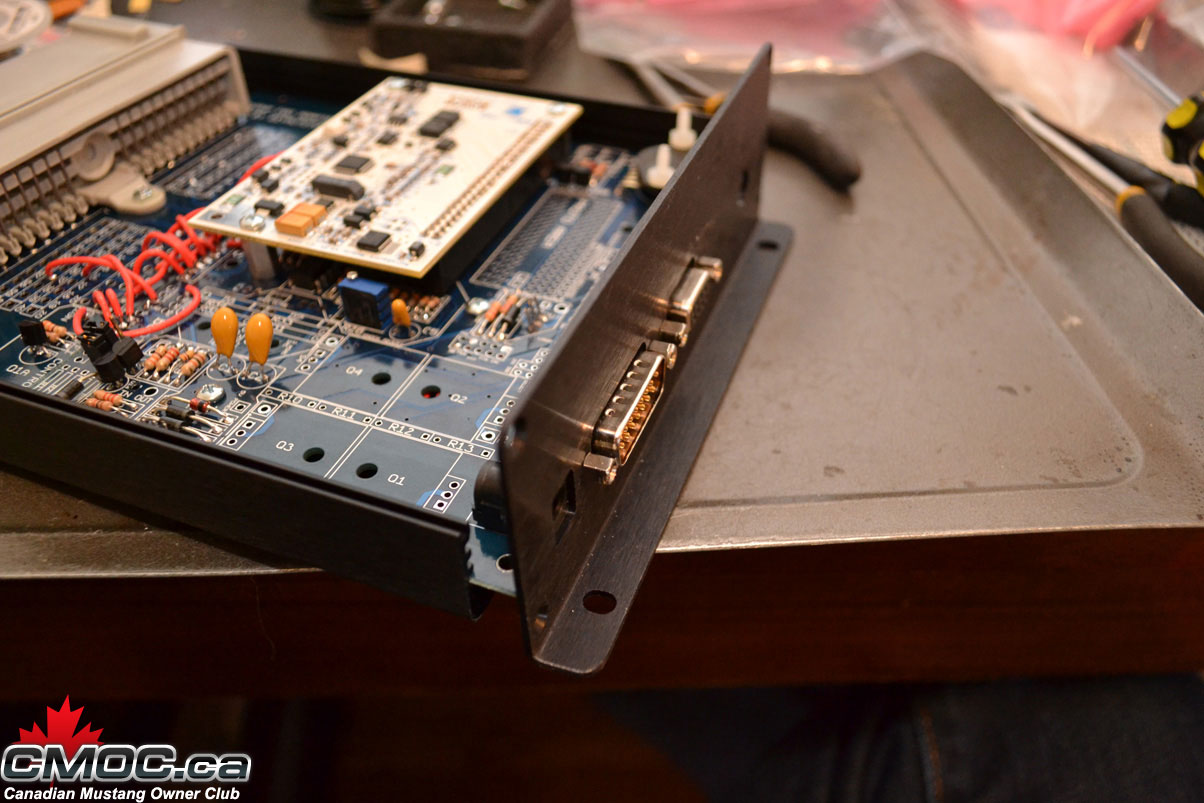

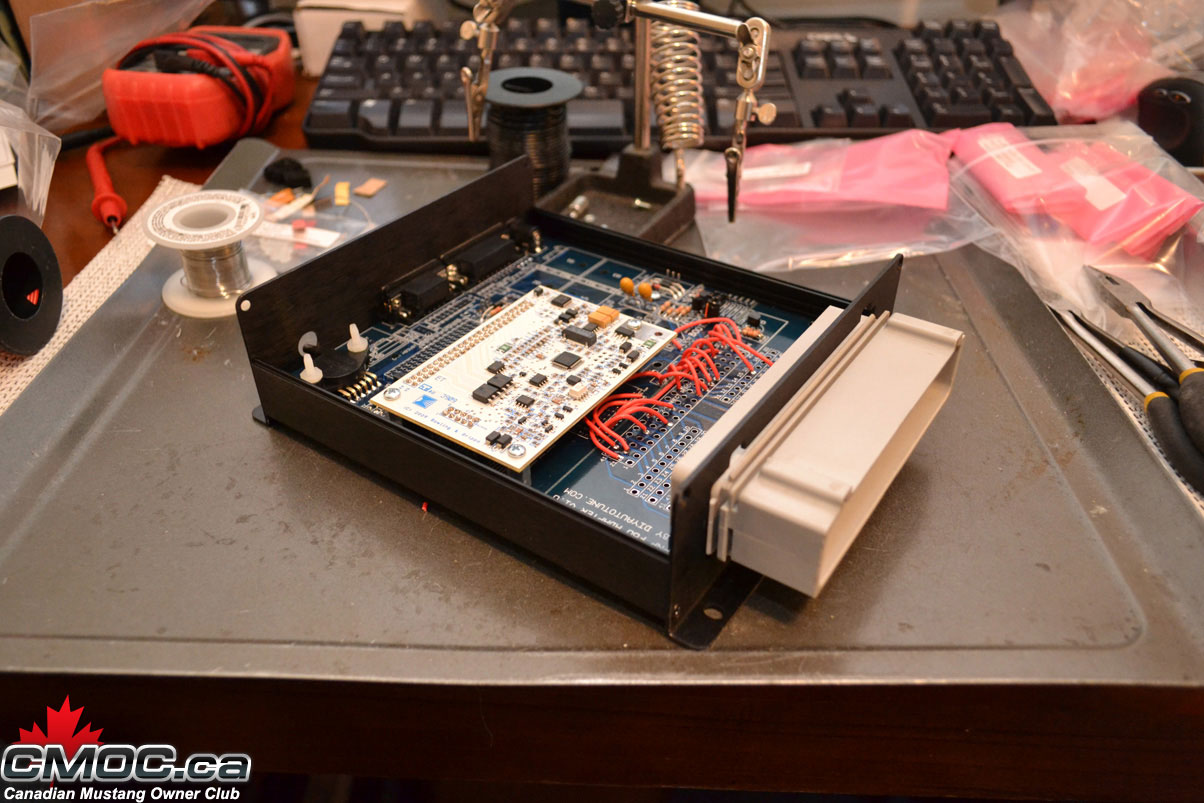

Reinstall the CPU, and start to assemble the case.



Slide it into the 2nd slot and attach the end plate with the nuts on the DB9 an dDB15:



Screw it in place and then slide the second end-plate over the connector and screw it in place as well.





all done:




From start to finish at this point, even taking pictures it took me just over an hour. Time to start loading software, a base tune, and getting it installed.
Attached Thumbnails
Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0859.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0862.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0865.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0866.jpg   Megasquirt DIYPNP "How-To" - Step-By-Step Instructions-dsc_0867.jpg

MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:42 PM   #7
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

Loading Firmware:


Go here and download the firmware: http://msextra.com/doc/ms2extra/file....0_release.zip

unzip it somewhere you can find it again.

Unplug your coil from the car if you're not using a power supply. This is not the same as unplugging the spark plug wires, you need to unplug the coil.

On the bottom right hand corner of the main board, you should see two holes labeled BOOT. Make sure the boot jumper is jumping the pins.

Open the folder and double click download-MS2-Firmware.bat

When prompted press (2) for microsquirt. Then your comm port #. Hit (1) next. Now hit (Y). It will instruct you to power on the MS with the boot jump in place. so follow the instructions.

then it will instruct you to turn off the unit, remove the jumper, and turn back on the power.

Once you follow these steps it will take about 5 minutes to load the firmware. it will prompt once done.


Software Setup:

You need to start with a fresh install of Tuner Studio.
https://www.efianalytics.com/TunerStudio/download
This link provides you with all the latest TS verison.

Run the installer and open Tuner Studio, this is the program you’ll be using. If it asks to update, please do so now. Do not change the default install directory.

Now download this file: http://msextra.com/doc/ms2extra/file....0_release.zip

And extract it into your “TunerStudio Projects Folder” under My Docs.

Open Tuner Studio and go to the file menu, and select Project. Under the pull up menu in Projects, you will be given a few choices related to the project. Since you want to set up for your car, the first thing you want to do is select NEW PROJECT.

This screen should open up:

{IMAGE}

Name the project something that you can easily identify, and make it specific. For example, “My Project” you can name it whatever you like, it doesn’t really matter.

Make sure under “Project Directory,” to save it to the Tuner Studio Projects Folder, which should default in your My Documents folder. Otherwise on some Vista and 7 machines, you may have issues saving files.

Next, you need to select the firmware you will be using.

You should be able, to simply click the down arrow and find “MS2Extra Rel 3.1.0”. If that is not an option, check other, then the "", and navigate to the Megatune directory and find the folder for “ms2extra_3.1.0_release” that you downloaded, then select the .ini file within and continue on.

{IMAGE}

On the next page, choose your settings for however you need to set up your car. Select Wideband or Narrowband depending on the o2 sensor you'll be using, and then scroll down and select Micosquirt_Module to ACTIVE.

{IMAGE}


On the next page, please select the com port of your usb-serial cable. MS-II baud rate is 115200.

Before you test your connection and power up the MS for the first time and you are powering it from your car and not the stim power adapater, make sure to unplug your coils.


Now, test the connection with your MS [attached and ignition turned to] ON.

{IMAGE}



Configuring your Sensors:

Once you connect to your MS and setup your project you need to calibrate a few of the inputs: AFR, TPS, Coolant, Air Temp.

Under Tools > Calibrate TPS
  • Key in the on position, car should not be running.
  • With your foot OFF the throttle, click 'GET CURRENT' for the Closed Throttle ADC Count
  • Floor it and hold it there. Click 'GET CURRENT' for the Full Throttle ADC Count
  • Click Close

Now click 'Tools > Calibrate Thermistor Tables'. Make sure 'Coolant Temperature Sensor' is selected at the top.

Use the following table with a bias resistor setting of 2490 ohms:

Temperature F / C Resistance In Ohms
50 / 10 58750
176 / 80 3840
230 / 110 1550

Click "write to controller"


Now you'll do the same for the IAT. Select 'Intake Temperature Sensor' at the top in the drop down box.

If you are using the MAF from the 5.0L and thus the stock AIT sensor,use the following table:

Temperature F / C Resistance In Ohms
50 / 10 58750
176 / 80 3840
230 / 110 1550

For the GM IAT sensor, use the following table with a bias resistor setting of 2490 ohms:

Temperature F Resistance In Ohms
48 7000
87 1930
146 560

Enter these values, and click ''.

Now click Close to Exit.

Finally, you should calibrate your O2 Sensor to the ECU.

To do this, click 'Tools > Calibrate AFR Table'.
  • Choose your O2 Sensor from the list. Choose Narrowband for the stock O2 Sensor. Or select your wideband and the proper configuration of said wideband from the drop-down list.
  • Click 'Write to Controller'.
  • Once finished writing, click 'Close'.

At this point you can load the basemap. Download the basemap from Diyautotune here: http://www.diyautotune.com/diypnp/ap...893-5_0-mt.zip

Extract it anywhere and go to File > Open Tune. Select the tune file out of the folder you just downloaded and let it write to the controller.

TO BE CONTINUED.
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 02:42 PM   #8
Administrator
Thread Starter
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

Configuring your tune:

Once you start the car, the first thing you have to do it match the ignition timing! MS has no idea what your timing is so driving on your new ECU without doing this is potential for serious failure.

Start and idle the car and allow it to warm-up and stabilize.

Open up Basic Setup > More Ignition Options.

To adjust the timing you adjust the trigger angle, that’s it. No more rotating the distributor, this is same concept.

Change the “Fixed Advance” from ‘Use table’ to ‘Fixed Timing’, Then make sure ‘Timing for Fixed Advanced’ is set to '10.0'. By doing this, you’re telling your Megasquirt to hold the ignition timing at 10 no matter what. This is essentially what you are doing when you would jump GND and TEN in the past. Since MS has control of your timing now, this is how you can lock the timing.

{IMAGE}

Use your timing light and verify the timing is correct. The timing mark should land on 10.

If not, we need to change the Trigger Angle.

Go to Tools > Trigger Wizard

Click + or – until your timing mark lines up to 10. Once your timing light indicates 10 you have now synced the CAS position and the MS. Burn that value.

Reopen “More Ignition Options

Let’s make sure your spark hardware latency is configured. You can see by default it’s set to 0. The timing latency is code to help prevent the timing from dropping off in higher RPMs. You can verify by locking ignition timing 10, which it should still be, and then slowly running the engine from idle to 6,000 RPM while observing with a timing gun. If the spark tends to retard as RPM goes up, you need to add latency correction until it stays at 10.

Once you are happy with your timing and latency values, change the “Fixed Angle” back to “Use Map”.If you fail to do this, your timing will remain at 10 regardless of RPM or load, this will overheat your motor fast and run very sluggish.

If done correctly and you go back out with a timing light you should see you’re probably idling in the 15-18 range, whatever the basemap puts you at for your particular load/rpm cell.

That’s it! You’re now ready to tune this baby up. You changed your timing back to “use map” right?


Tuning Fuel:


Your spark table, by default, is a good conservative table; So focus on fuel.

Go to Basic Settings > VE Table 1

That’s the fuel map. When idling you can see where it's reading the table from. When you drive you can see your AFR gauge react to whatever situation your table is in; adjust as needed. It should be close...you might have to increase the table by 5-10 point throughout to idle good.

If you highlight cell you can plug numbers in on the top. If you want to increase by 5 points, highlight the cells you want, hit the plus sign, then enter in a value.

Let's setup your AFR targets now.

Turn EGO Control on. Step size 1% will allow the ECU to make on the fly adjustments based of your AFR reading to try to match your AFR targets table. You can change the speed it reacts (events per step), how much it can change your table numbers (Auth) and other parameters.

Then go to Basic Settings > AFR table 1 – Setup your AFR targets how you’d like, these are my defaults.

These are the AFR targets you’re telling the MS you want to hit, it will compare the actualy AFR readings from your o2, and compare them to this table and make on-the-fly adjustments to try to match your AFR Targets Table.
MF-Brain is offline   Reply With Quote
Old 09-18-2011, 03:15 PM   #9
BAMFr

Track's Avatar

Join Date: Jul 2011
Location: NC
Posts: 1,789
Default

Beautiful work Brain, great how-to!
Track is offline   Reply With Quote
Old 09-20-2011, 05:46 PM   #10
Moderator

sixshooter's Avatar

Join Date: Jul 2011
Location: Tampa, FL; Lake Jackson (Atlanta), GA
Posts: 1,894
Default

I appreciate the effort you put into this.
sixshooter is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
Maintenance Spark Plug Install Instructions CharlesE How To... 1 10-29-2013 06:07 PM
WTB megasquirt engine management that would work with a 99 miata SnaiSpeed Miata Parts for Sale & Wanted 1 09-02-2013 11:23 AM
'01 Miata for MegaSquirt RoyzMG MSIII and MS3X 6 04-30-2012 11:43 AM
Complete BEGI S2 Turbo System with Megasquirt Defaulted Miata Parts for Sale & Wanted 12 01-24-2012 02:39 PM
I usualy avoid forums that replace "s" with "z"... Stock Newbie Check-in! 4 12-05-2011 03:08 PM


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -5. The time now is 02:43 AM.


We are a participant in the Amazon Services LLC Associates Program, an affiliate advertising program designed to provide a means for us to earn fees by linking to Amazon.com and affiliated sites.
