hey i just had an opertunity to check this out, with the multi meter checking for a complete circuit. i got nothing from js11 on the board to the position 1v brown/white= clutch. but there is a wire connected to the board at postion js 11.



can you find out where 1V goes into the MS?



if i can count corretly pin 27



that cant be right. pin 27 is the CAS input.



25 is the shielded cas, 28 is clutch.



cant be 28, cause 28 is 12v.



wtf. let me put my damn glasses on and try one more time.

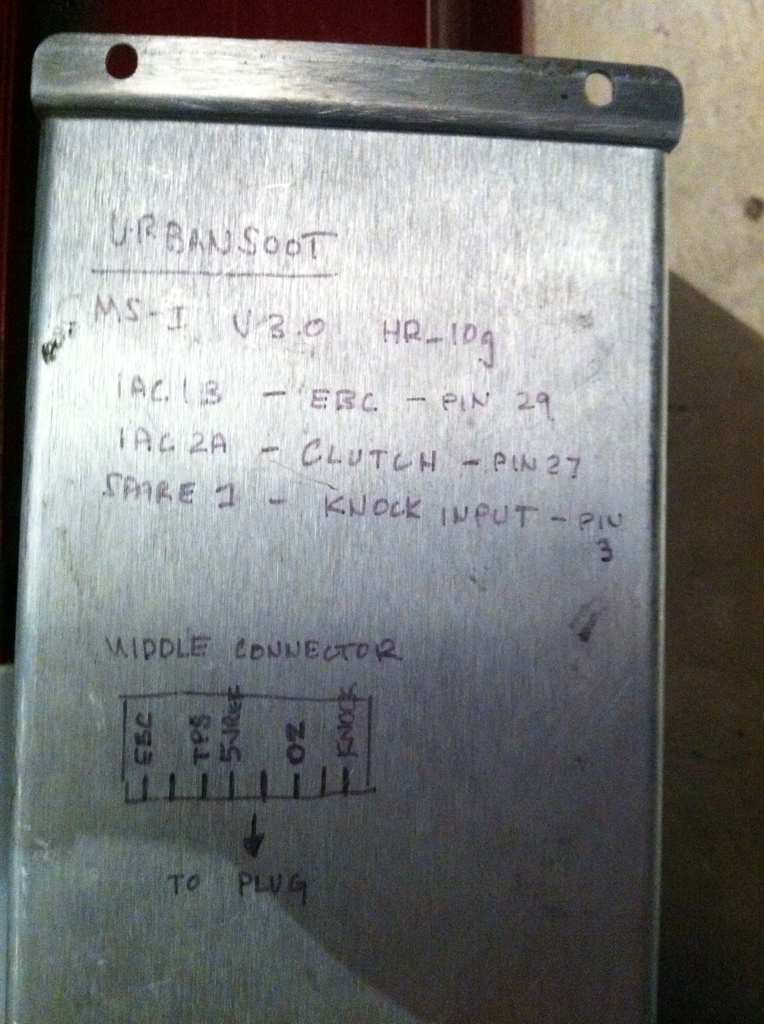

yea its 27 and this was on the outside case



so whats all the writing on the case mean sir brain?



okay. i messeded up: pin 27 goes to iac2a which goes to js11 (when i look at pic on page 1).


sidenote: how cheap did urban sell you that for?
