Default Mystery Plug in Trunk - ignition related

Greetings

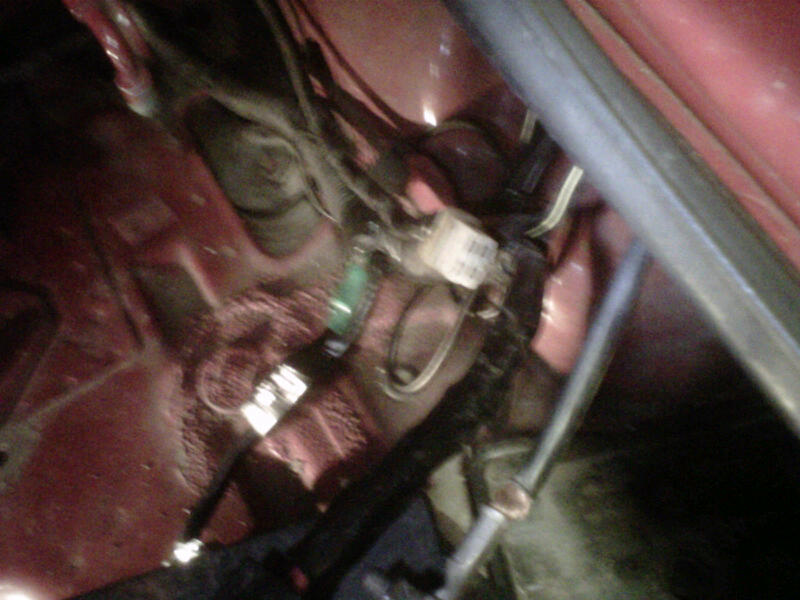

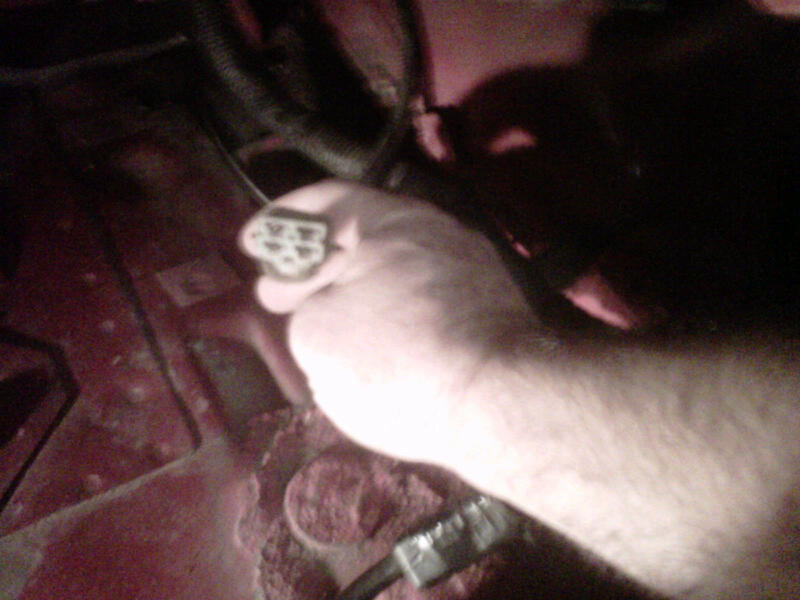

I have a 94 Miata MX5. I recently removed a very old 3rd party alarm system and now my car won't start. I've narrowed this down to a mystery 4-way plug in my trunk (Red w/ Blk Stripe, Light green, Dark Blue w wt stripe) . If I jump power to the Blk w white stripe connector in the plug it will energize control panel and instruments, It will start but wont turn off with key.
The plug doesn't seem to have a home.
Any help would be greatly appreciated.
Attached Thumbnails
Mystery Plug in Trunk - ignition related-mazda-plug-1.jpg   Mystery Plug in Trunk - ignition related-mazda-plug-2.jpg
Edgewater is offline   Reply With Quote
Old 07-07-2013, 10:28 PM   #2
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

not oem, most of the non stock alarm systems are wired into the harness around the steering column i dont recall where exactly but start looking for split wiring. heres a whole car (split into the various pars) wiring diagram. good luck.
https://www.miataforumz.com/1990-200...ring/94sys.pdf
RedTurboMiata is offline   Reply With Quote
Old 07-08-2013, 12:36 PM   #3
!!!! I NEED TO POST !!!!
Thread Starter

Join Date: Jul 2013
Posts: 2
Default

Thanks
I figured out the mystery plug is for auto antenna. I will look around steering column.
Edgewter
Edgewater is offline   Reply With Quote
