Problem with wires color relay
#1
Problem with wires color relay
Hello.
I have a small problem in my Miata (1990/91 version for Canada, manual, no air conditioning).
The colors of wirea that go to the relays (under the hood, on the right) and the diagnostic connector don’t match the Mazda wiring diagram from the 90s and 91s.
From the diagram, only one „headlights relay” works, but I'm not sure if that's exactly the name.
Could someone take pictures of the wires he has in these relays?

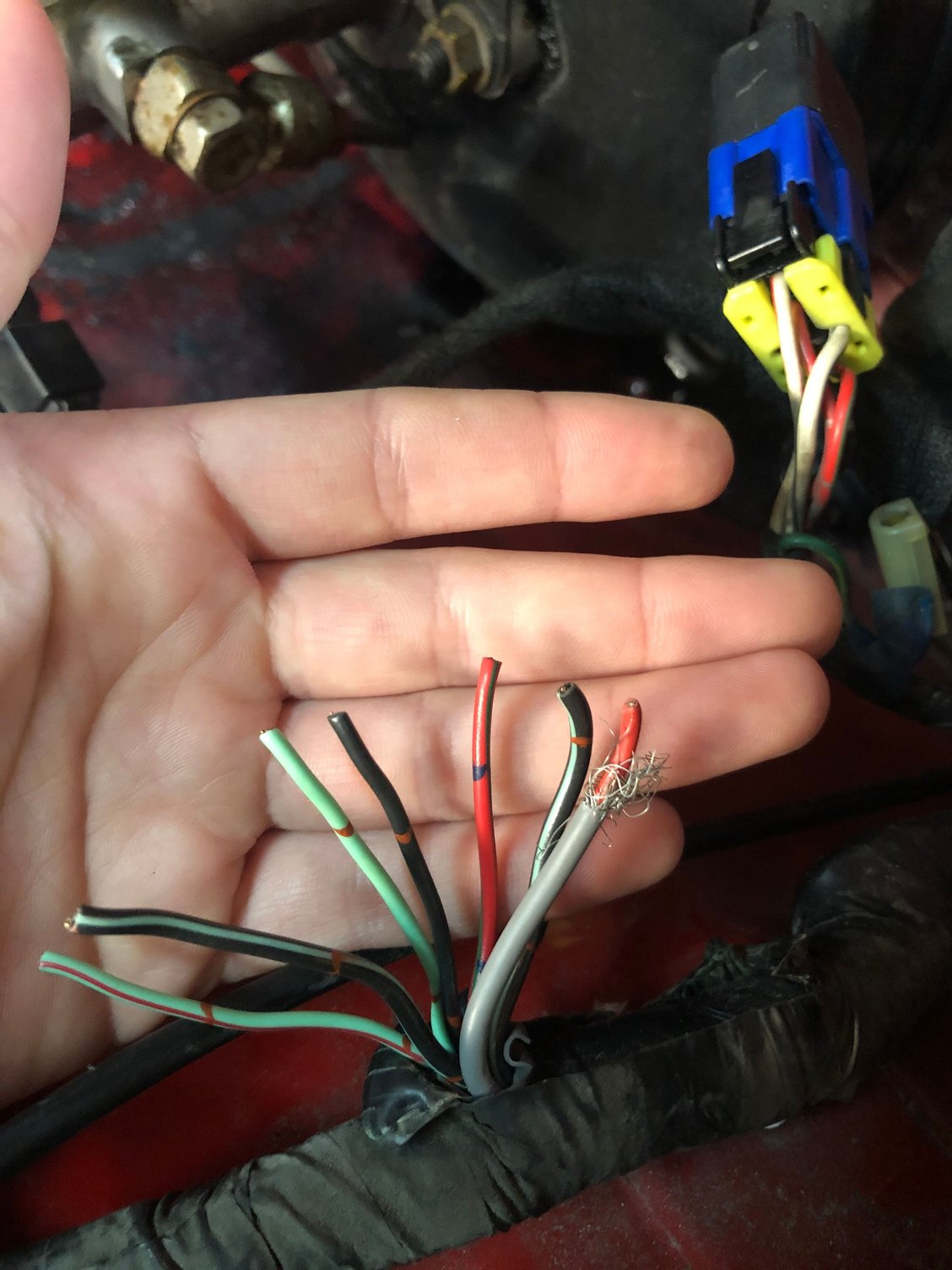

I will add photos of wires I have, maybe someone will help me unravel this puzzle. I would be grateful for a detailed description of what, how and where.
I have a small problem in my Miata (1990/91 version for Canada, manual, no air conditioning).
The colors of wirea that go to the relays (under the hood, on the right) and the diagnostic connector don’t match the Mazda wiring diagram from the 90s and 91s.
From the diagram, only one „headlights relay” works, but I'm not sure if that's exactly the name.
Could someone take pictures of the wires he has in these relays?
I will add photos of wires I have, maybe someone will help me unravel this puzzle. I would be grateful for a detailed description of what, how and where.
#2
Those connectors don't look factory. They look like a DIY set up. If that's the case you would probably need a voltmeter or tester to ascertain which wires have what function. If you are not already versed in wire tracing there are videos on youtube. Unless you like learning new things and dabbling in the DIY world, you would probably benefit more from taking it to a pro or having a friend who knows about automotive wiring take a look at it.
