jtpaintballwdp's '70 240z build thread
#21
Another weekend, another day of 240z work.
Hopefully going to get a full day in this time, when I went down to finish the brakes, I had less time than I thought, and didn't get to finish them up. But as of now, just need to install the wheel cylinder on the driver side rear, connect all the lines, and bleed the brakes, and DONE.
Hopefully that shouldn't take more than an hour or 2, but the car is 42 so we know how that goes.
With the time I have left it will be spent dropping the gas tank to prep it to accept a 3/8" feed, and 5/16" return line that I will be running for the turbo swap, as well as start removing the L24E. We decided not to mess around with it any more.
So now the plan is:
Drop tank
Remove Engine/Trans
Run fuel hard lines (will be much easier with engine and trans out)
Drop L28ET and Borg Warner NWC T5 5 speed in.
Rent U-Haul flat trailer, tow home possibly weekend after next
Remove R-180 3.364 diff, replace with R-200 3.545 diff
Get drive shaft made for the BW trans
MS3+Sequential fuel/spark with LSx coils in place of distributor/coil
Lots and Lots of wiring.
Man after typing that out, that's a lot of work until I can even start the car!
Hopefully going to get a full day in this time, when I went down to finish the brakes, I had less time than I thought, and didn't get to finish them up. But as of now, just need to install the wheel cylinder on the driver side rear, connect all the lines, and bleed the brakes, and DONE.
Hopefully that shouldn't take more than an hour or 2, but the car is 42 so we know how that goes.
With the time I have left it will be spent dropping the gas tank to prep it to accept a 3/8" feed, and 5/16" return line that I will be running for the turbo swap, as well as start removing the L24E. We decided not to mess around with it any more.
So now the plan is:
Drop tank
Remove Engine/Trans
Run fuel hard lines (will be much easier with engine and trans out)
Drop L28ET and Borg Warner NWC T5 5 speed in.
Rent U-Haul flat trailer, tow home possibly weekend after next
Remove R-180 3.364 diff, replace with R-200 3.545 diff
Get drive shaft made for the BW trans
MS3+Sequential fuel/spark with LSx coils in place of distributor/coil
Lots and Lots of wiring.
Man after typing that out, that's a lot of work until I can even start the car!
Last edited by jtpaintballwdp; 09-05-2012 at 12:34 PM.
#22
Love this car!
I can't wait to get my hands on one to build on the side. I'm deff looking forward to your updates!
I personally, would love to just buy a shell. And swap a RB in it, but i don't know much about the l28et. Other than what I just read after a quick google search. It would be cool to keep it all "original" with a engine that was offered in this specific car.
Good luck!
I can't wait to get my hands on one to build on the side. I'm deff looking forward to your updates!
I personally, would love to just buy a shell. And swap a RB in it, but i don't know much about the l28et. Other than what I just read after a quick google search. It would be cool to keep it all "original" with a engine that was offered in this specific car.
Good luck!
The L28ET its self is a direct drop in swap, and if using a 5 speed out of an earlier car is even easier. Just requires a bit of wiring, and a fuel line mod.
Since I am going with the Borg Warner T5 that came on the turbo cars, its a little more involved, and the BW T5 is a few inches longer than the standard 5 speed, it requires a custom drive shaft.
I'm also going Mega Squirt, so there is a lot more wiring involved.
(sorry for the late response, just saw this post)
#23
#24
There is a guy running a 240z in NASA FL events with me who is pretty damn quick. He's running 3 Mikunis and it sounds great, but the suspension and brakes are where it really shines on the track.
#25
Local around here just had her 280z featured. I really love these cars. They look awesome.
http://jdmchicago.com/wp/2012/10/chr...8-datsun-280z/
http://jdmchicago.com/wp/2012/10/chr...8-datsun-280z/
#26
Originally Posted by sixshooter
There is a guy running a 240z in NASA FL events with me who is pretty damn quick. He's running 3 Mikunis and it sounds great, but the suspension and brakes are where it really shines on the track.
Local around here just had her 280z featured. I really love these cars. They look awesome.
Christine Siepka’s 1978 Datsun 280z «
Christine Siepka’s 1978 Datsun 280z «
#27
#28
Alright, long time no update, well mainly because there hasn't been much to update =(

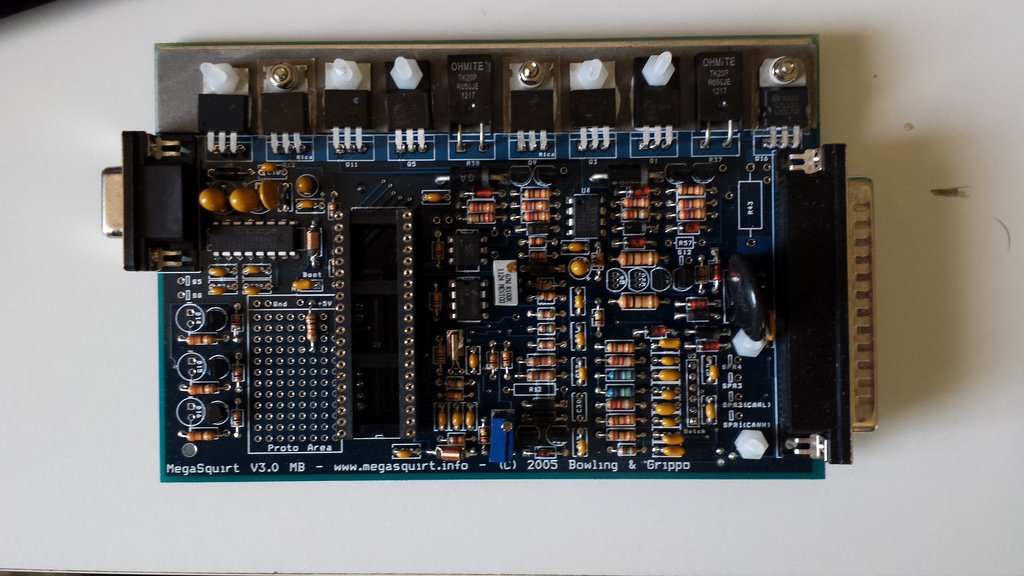

got the MS3 built:

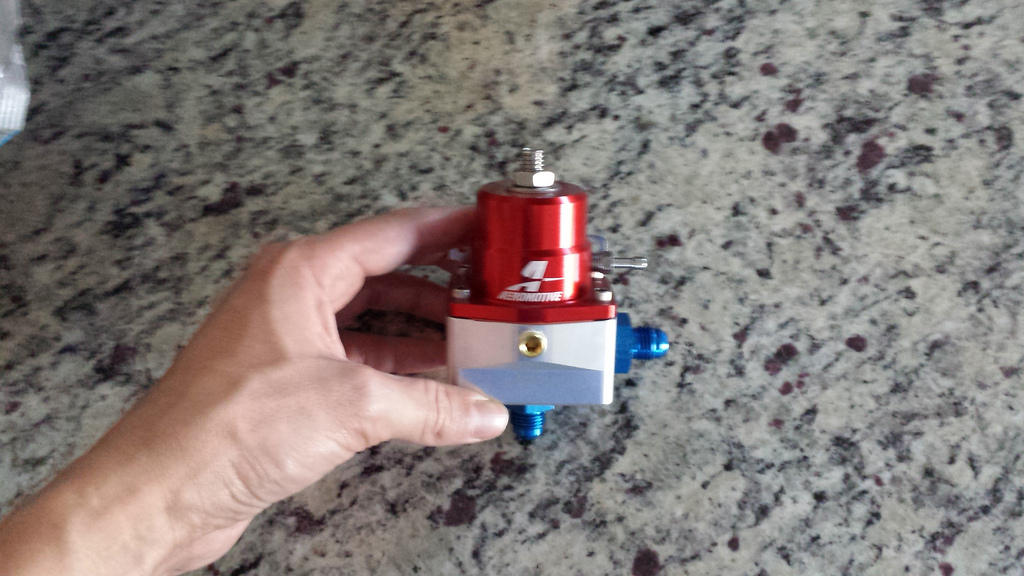

Got my new Aeromotive FPR:

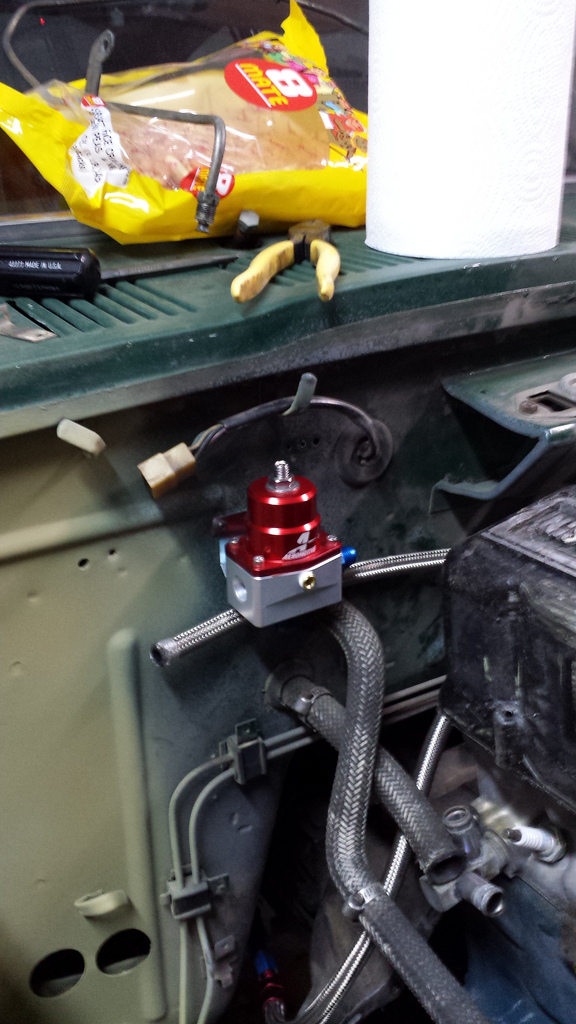

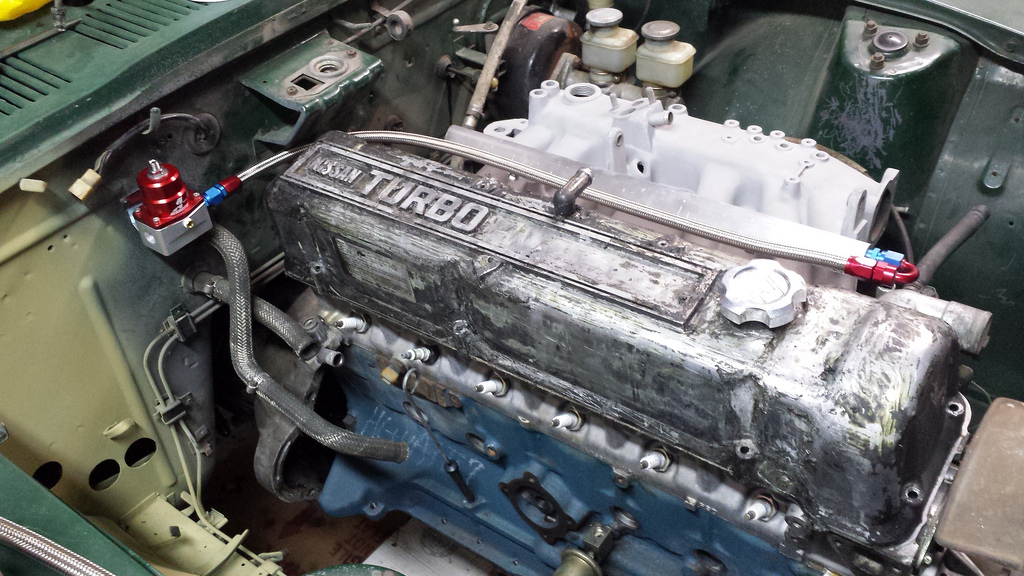

Replaced all of the fuel lines and got a new used gas tank that was in really good condition, all of the lines except running the length of the "frame rails" are braided stainless -8 or -6 lines and mounted the FPR:

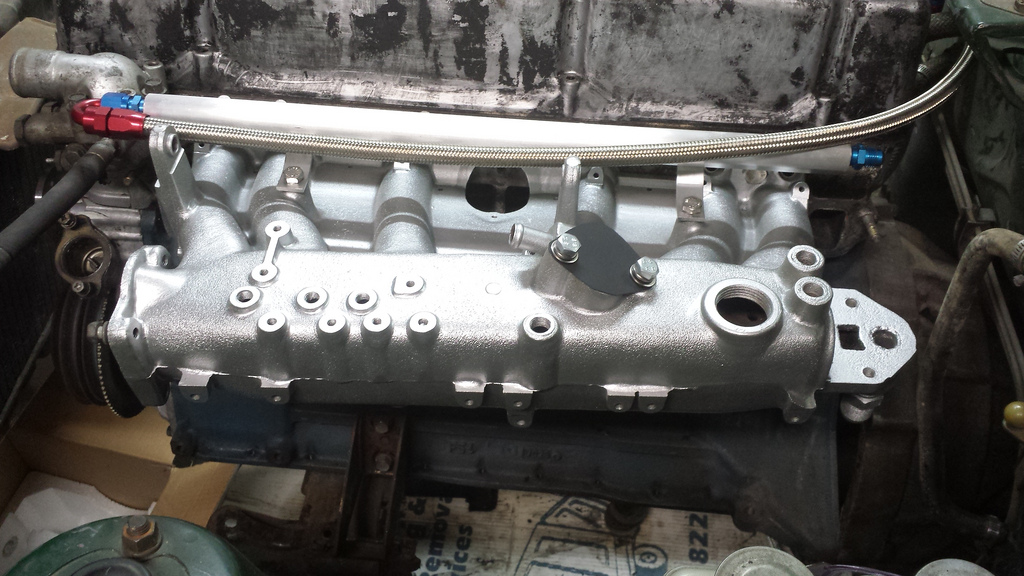

Painted my intake manifold, and made a block off plate for the old idle control valve (going to replace with a GM Stepper type IAC). Still need to make a block off for the EGR on the end of the manifold.:
And then I decided to remove the head and replace the head gasket, glad I did.. When the car that this motor came out of pulled in to our garage it was running, granted we didn't do a compression test or anything. We pulled the motor and it sat for a long time, we never thought twice about it fast forward 6 years, I guess the owner of the car decided that you could turn up boost with out adding fuel... we all know how that ends:

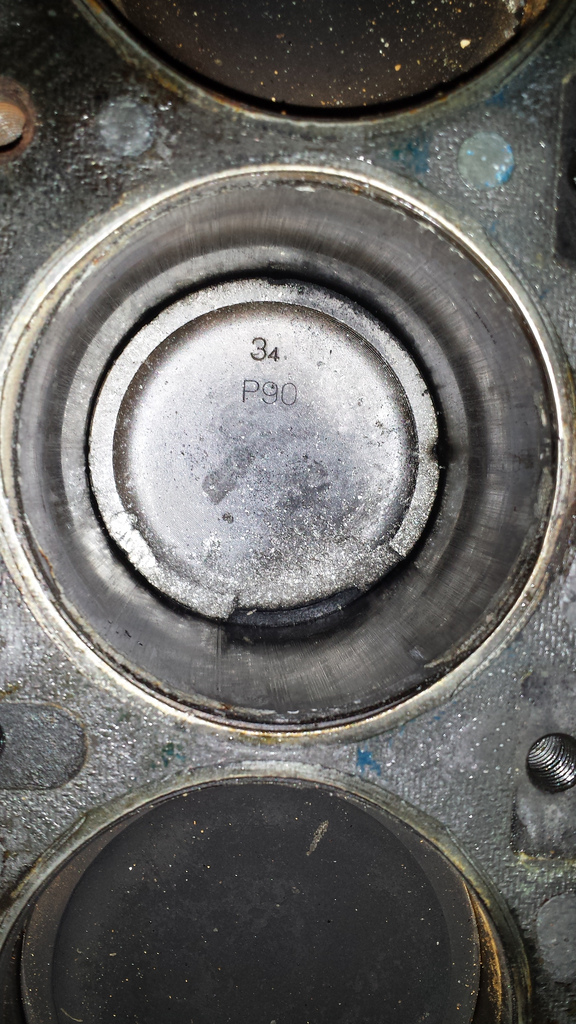

Cyl#2

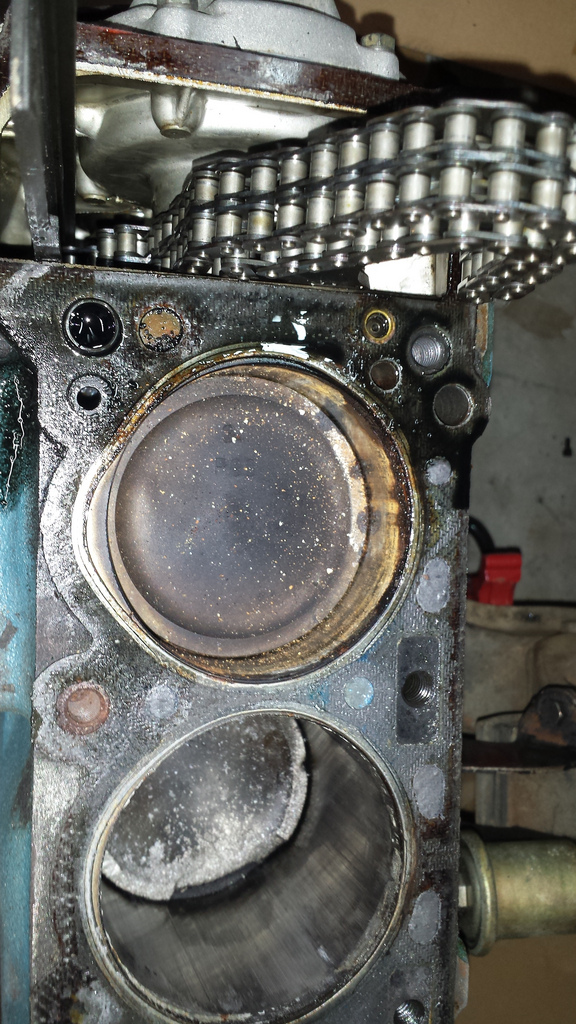

Cyl#1

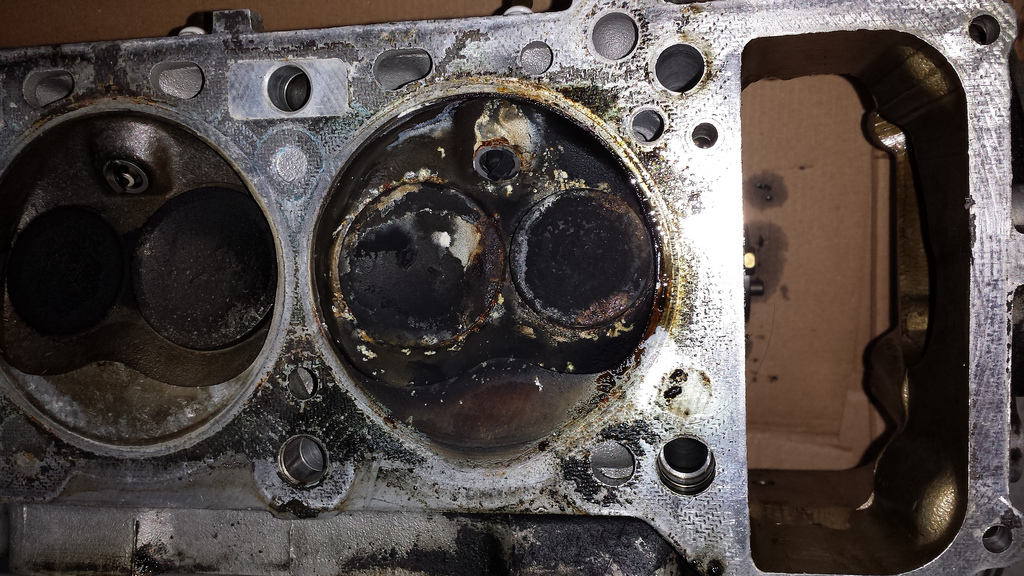

And combustion chamber #1
got the MS3 built:
Got my new Aeromotive FPR:
Replaced all of the fuel lines and got a new used gas tank that was in really good condition, all of the lines except running the length of the "frame rails" are braided stainless -8 or -6 lines and mounted the FPR:
Painted my intake manifold, and made a block off plate for the old idle control valve (going to replace with a GM Stepper type IAC). Still need to make a block off for the EGR on the end of the manifold.:
And then I decided to remove the head and replace the head gasket, glad I did.. When the car that this motor came out of pulled in to our garage it was running, granted we didn't do a compression test or anything. We pulled the motor and it sat for a long time, we never thought twice about it fast forward 6 years, I guess the owner of the car decided that you could turn up boost with out adding fuel... we all know how that ends:
Cyl#2
Cyl#1
And combustion chamber #1
#29
So anyway, for now, so I can get the car mobile, I will be swapping the old motor back in. With my wedding coming up, I don't really have the spare cash for the machine work.
The plan is to have the block bored and the head cleaned up, new pistons/rings, have the conn. rods checked/replaced if needed, new bearings ect. so basically a rebuild/refresh. All in all not a bad thing, just money I wasn't ready to spend. Although you do know what they say, make a budget, and at least double it...
The plan is to have the block bored and the head cleaned up, new pistons/rings, have the conn. rods checked/replaced if needed, new bearings ect. so basically a rebuild/refresh. All in all not a bad thing, just money I wasn't ready to spend. Although you do know what they say, make a budget, and at least double it...
