Default Droopy Eyeball Vents, removal and fix

I know this had been done but I had issues with one vent and couldnt find what others had suggested. So here is what I did. hope it helps some body.
sirbrit is offline
Old 06-23-2012, 07:22 PM
  #2
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

I used the double hook method ( two pieces of wire with a hook bent on one end of each wire, hook into eyeball vents and pull) to remove three vents. The fourth on the passenger side would not come out for any reason, without causing damage.

So I cut a piece of plastic out af a old bottle of anti freeze about an inch and a half wide and slipped it between the rim of the vent and the dash.

I kept sliding it around till it had gone in about 3 inches and sat in the 9 O'clock position. that puts it between the plastic tab of the dash and the indentation of the eyeball vent.

Inserted one the hooks on the same side, gave it a tug and it fell right out. bbeen trying to get this out on and off for a few weeks
Attached Thumbnails Droopy Eyeball Vents, removal and fix-1-removal.jpg
sirbrit is offline
Old 06-23-2012, 07:24 PM
  #3
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

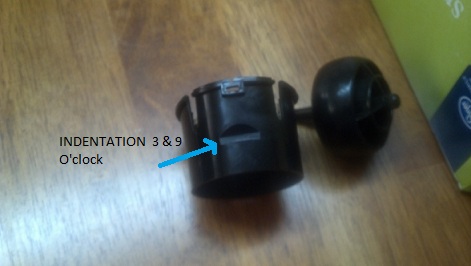

this is one of the indentations that sit at the 3 & 9 O'clock position
Attached Thumbnails Droopy Eyeball Vents, removal and fix-2-indentation.jpg
sirbrit is offline
Old 06-23-2012, 07:26 PM
  #4
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

couldnt find any velvet type material, or something along that manner so i grabbed this velcro at wal mart and used the smooth side, not the hard hook hook side
Attached Thumbnails Droopy Eyeball Vents, removal and fix-3.jpg
sirbrit is offline
Old 06-23-2012, 07:29 PM
  #5
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

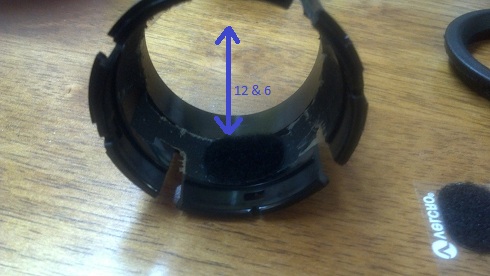

at first I put the velcro at 12,3,6, and 9 O'clock.

Didn't work as it was way too tight and I couldnt put the vent back together.

So I put them at the 12 and 6 position as the indentations were at 3 and 9 and I thought it may be to tight.
Attached Thumbnails Droopy Eyeball Vents, removal and fix-4.jpg
sirbrit is offline
Old 06-23-2012, 07:32 PM
  #6
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

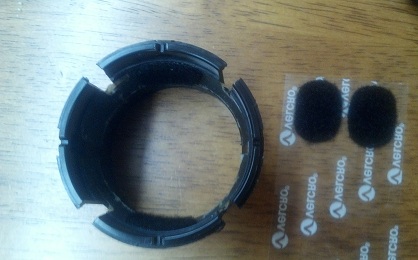

velcro is about the size of your thumb print.

after I put everything back together and reinstalled the events. went for a bumpy ride. the vents never budged..

They are tight and right a little stiff to move but works
Attached Thumbnails Droopy Eyeball Vents, removal and fix-5.jpg
sirbrit is offline
Old 06-25-2012, 11:23 AM
  #7
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

now for a fix for my passenger rear view mirror please...
MF-Brain is offline
Old 06-25-2012, 12:51 PM
  #8
MFz Regular
Thread Starter

sirbrit's Avatar

Join Date: Mar 2012
Location: TN
Posts: 261
Default

on the way
sirbrit is offline
Old 06-27-2012, 09:19 AM
  #9
Moderator

sixshooter's Avatar

Join Date: Jul 2011
Location: Tampa, FL; Lake Jackson (Atlanta), GA
Posts: 1,902
Default

I tried something else a couple of years ago but it worked poorly so I won't talk about it. I'll try this instead.
sixshooter is offline
Old 06-27-2012, 02:00 PM
  #10
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

Originally Posted by sirbrit
on the way

gorilla glue?
