Old 05-01-2012, 01:45 PM   #551
Moderator

sixshooter's Avatar

Join Date: Jul 2011
Location: Tampa, FL; Lake Jackson (Atlanta), GA
Posts: 1,894
Default

Quote:
Originally Posted by RedTurboMiata View Post
yea its all setup, it was sitting in the 16s at cruise, worried me a bit because it was 15s earlier this morning. laptop was dead so i couldnt adjust anything
Sounds like a very economical cruise. Where is your IAT sensor located? They don't like being anywhere behind the radiator because they can heat soak and read incorrectly.

Quote:
Originally Posted by RedTurboMiata View Post
In theory wouldnt Diy autotune's base tune already have some of the compensations done?
I'm trying to recall if those settings were for use if you had a pnp and were running MAF. All I know is Brain's tune had it zeroed out. I'm not the best educated one around here on the obscurities of the software. There is a reason they call him Brain. Maybe he can shed some light.

Edit: There he is.

Last edited by sixshooter; 05-01-2012 at 01:48 PM.
sixshooter is offline   Reply With Quote
Old 05-01-2012, 02:02 PM   #552
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

Quote:
Originally Posted by sixshooter View Post
Sounds like a very economical cruise. Where is your IAT sensor located? They don't like being anywhere behind the radiator because they can heat soak and read incorrectly.


I'm trying to recall if those settings were for use if you had a pnp and were running MAF. All I know is Brain's tune had it zeroed out. I'm not the best educated one around here on the obscurities of the software. There is a reason they call him Brain. Maybe he can shed some light.

Edit: There he is.
its near the alternator on the back side of the charge pipe.
RedTurboMiata is offline   Reply With Quote
Old 05-01-2012, 02:12 PM   #553
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

Thinking about it a bit my latest virtual dyno run fell o it's face above like 6500, so the timing is Probobly off a bit.
RedTurboMiata is offline   Reply With Quote
Old 05-01-2012, 02:44 PM   #554
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

you need to tune your timing latency value, if it's set to 0, your timing will drop off towards redline.
MF-Brain is offline   Reply With Quote
Old 05-01-2012, 03:35 PM   #555
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

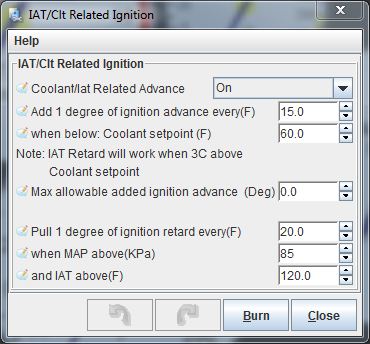

Unless six touched any of this, this is diy's base stuff. i have not touched the timing table at all.


Attached Thumbnails
What did you do to your NA today?-iat-ignition.jpg   What did you do to your NA today?-spark.jpg
RedTurboMiata is offline   Reply With Quote
Old 05-01-2012, 04:27 PM   #556
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

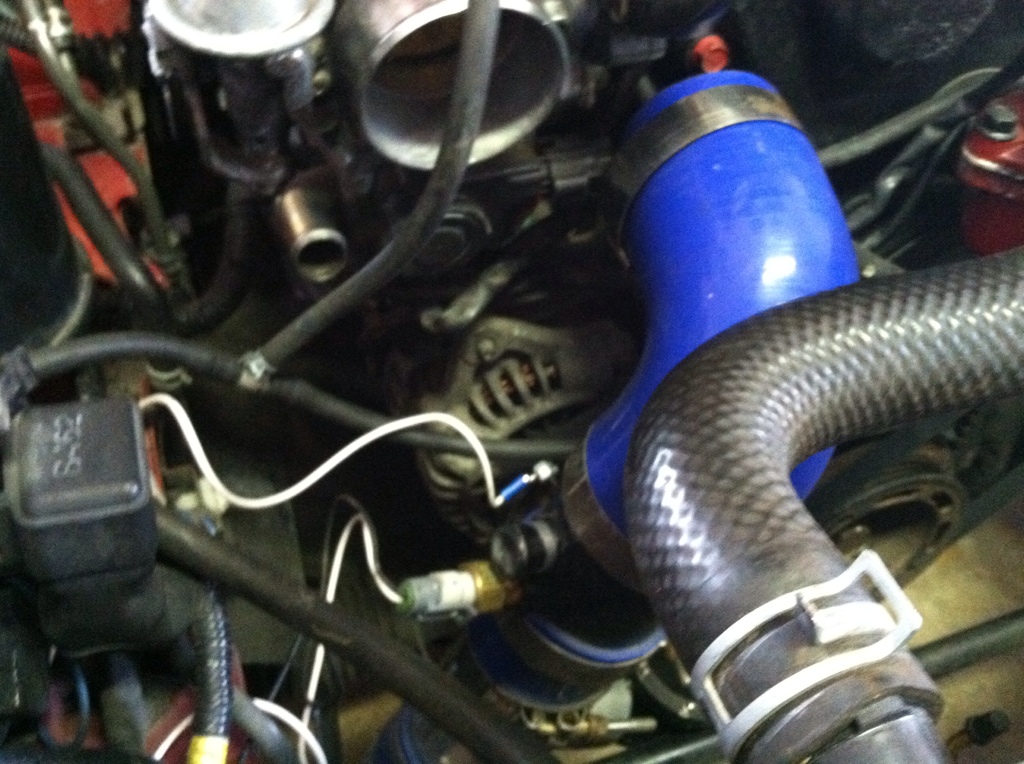

found out the iat wasnt positioned where i thought it was,

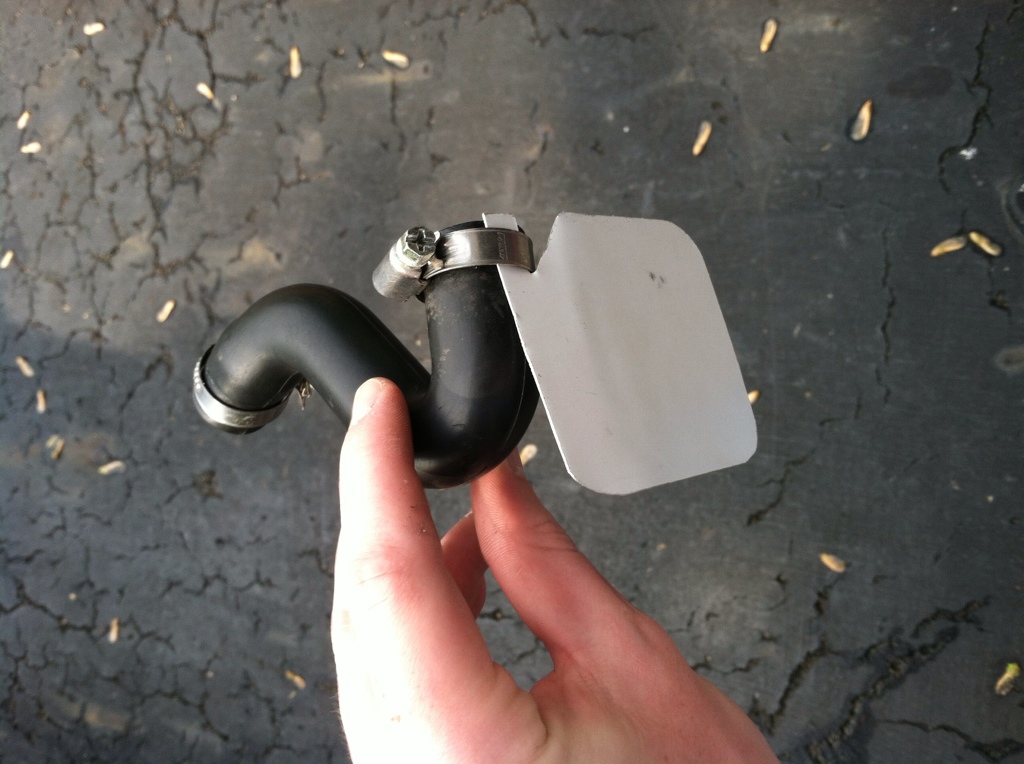

This should help a bit, its lightweight aluminum.
Attached Thumbnails
What did you do to your NA today?-7b2e31ea.jpg   What did you do to your NA today?-fbda154d.jpg
RedTurboMiata is offline   Reply With Quote
Old 05-01-2012, 04:36 PM   #557
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

i would add 5-6 degree in boost, through out. so the top 5 rows.
MF-Brain is offline   Reply With Quote
Old 05-01-2012, 05:00 PM   #558
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

do you have an example to show me what im shooting toward?
RedTurboMiata is offline   Reply With Quote
Old 05-01-2012, 07:36 PM   #559
Red To Go

RedTurboMiata's Avatar

Join Date: Jul 2011
Location: Canton, MI
Posts: 2,601
Default

Quote:
Originally Posted by sixshooter View Post
If in tunerstudio you go under the spark tab and choose the top choice in the dropdown menu "spark settings", the default is 65 and you have 58, which usually means that you have adjusted it to make the spark line up with your timing marks. That's OK if everything is truly accurate with your timing.

And you have the cranking advance angle set at 18 and the map I have from Brain has it set for 12. Six degrees more timing right there probably will make the difference you are seeing. If you are sure your timing is right, just change this right now to 12 or 10 and see how that does. It should be a lot better.
alright i busted out our timing light, and tried again. bumped it up to about 60 and it seemed happier. tomorrow i should have access to a known good timing light so i will go for it again.
RedTurboMiata is offline   Reply With Quote
Old 05-02-2012, 09:32 AM   #560
Administrator
iTrader: (1)

MF-Brain's Avatar

Join Date: Jun 2011
Location: Arlington, Va
Posts: 1,233
Default

seemd happier? either you're lining up to 10 or you're not.
MF-Brain is offline   Reply With Quote
