99mx5's ARTech EFR build

Thread Tools

Search this Thread

Old Apr 22, 2012 | 10:39 PM
  #101
RedTurboMiata's Avatar
Red To Go

Joined: Jul 2011
Posts: 2,600
From: Canton, MI
Default

you could always build your own, the spring in the valve i got was good for 0-25psi.
http://www.gusmahon.org/html/boostcontrol.htm
Old Apr 22, 2012 | 10:44 PM
  #102
99mx5's Avatar
Thread Starter
MFz Regular

Joined: Jul 2011
Posts: 132
From: Las Cruces, NM
Default

I have a ProSport MBC. It seems to work well now, but was too limited for the lower range.

Sixshooter, can you post your timing map? I'm curious to see how many chairs I kicked over in my table.
Old Apr 23, 2012 | 07:55 AM
  #103
MF-Brain's Avatar
Administrator
iTrader: (1)

Joined: Jun 2011
Posts: 1,233
From: Arlington, Va
Default

use .22-.25v = 7.35 and 5v = 22.39
Old Apr 23, 2012 | 12:25 PM
  #104
99mx5's Avatar
Thread Starter
MFz Regular

Joined: Jul 2011
Posts: 132
From: Las Cruces, NM
Default

Will do Brain, thanks!
Old Apr 23, 2012 | 04:32 PM
  #105
sixshooter's Avatar
Moderator

Joined: Jul 2011
Posts: 1,902
From: Tampa, FL; Lake Jackson (Atlanta), GA
Default

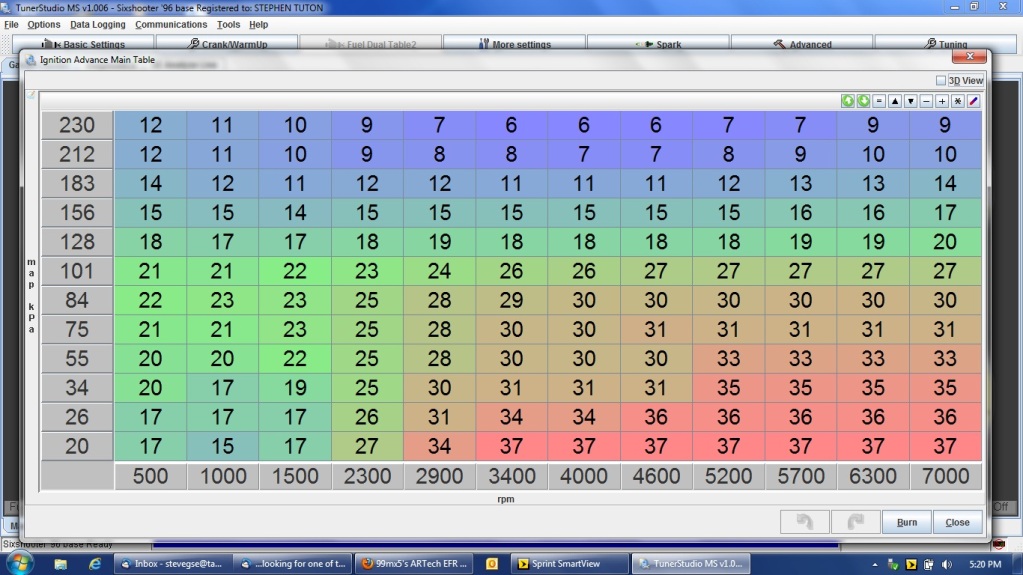

My spark map isn't tuned out. It is mostly the base one that came from Brain. It is safe and I haven't screwed with it except around the idle because the car runs fine with it.

Attached Thumbnails 99mx5's ARTech EFR build-sparkmap.jpg
Old Apr 23, 2012 | 04:46 PM
  #106
MF-Brain's Avatar
Administrator
iTrader: (1)

Joined: Jun 2011
Posts: 1,233
From: Arlington, Va
Default

I'd select the entire section from 128 to 230, hit the plus key and add 6.

then id select the first 9 cell 34 kpa to 1500RPM and make them all like 10-12. thats more timing than you need at idle.


the rest is exactly as I have mine.
Old Apr 23, 2012 | 05:41 PM
  #107
99mx5's Avatar
Thread Starter
MFz Regular

Joined: Jul 2011
Posts: 132
From: Las Cruces, NM
Default

Thanks for the feedback guys! Much appreciated!
Old Apr 24, 2012 | 08:06 AM
  #108
sixshooter's Avatar
Moderator

Joined: Jul 2011
Posts: 1,902
From: Tampa, FL; Lake Jackson (Atlanta), GA
Default

Originally Posted by MF-Brain
I'd select the entire section from 128 to 230, hit the plus key and add 6.
And that would be totally safe timing to run on the track in the summer with everything heat soaked? I'm asking because I'm a total Nancy when it comes to taking chances with boosted detonation.
Originally Posted by MF-Brain
then id select the first 9 cell 34 kpa to 1500RPM and make them all like 10-12. thats more timing than you need at idle.
Aaawww. I'll try it but my car idles really, really well these days. After much adjusting the only hunting it does is when the AC cycles and even that is pretty minimal now.
Old Apr 24, 2012 | 09:13 AM
  #109
MF-Brain's Avatar
Administrator
iTrader: (1)

Joined: Jun 2011
Posts: 1,233
From: Arlington, Va
Default

i run 16° at 205kPa. your timing drops off way too much once you enter boost.
Old Apr 24, 2012 | 12:47 PM
  #110
99mx5's Avatar
Thread Starter
MFz Regular

Joined: Jul 2011
Posts: 132
From: Las Cruces, NM
Default

Tomorrow is the dyno day. I have an hour scheduled for tuning. I'll post pics and video.
