My 2002 BEGI S4 GT2860RS - White and sexy.

Build Threads Want to document the progress of your build? Do it here!

My 2002 BEGI S4 GT2860RS - White and sexy.

Reply




Old 08-02-2011, 09:34 AM
  #1
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default My 2002 BEGI S4 GT2860RS - White and sexy.

Hello All,

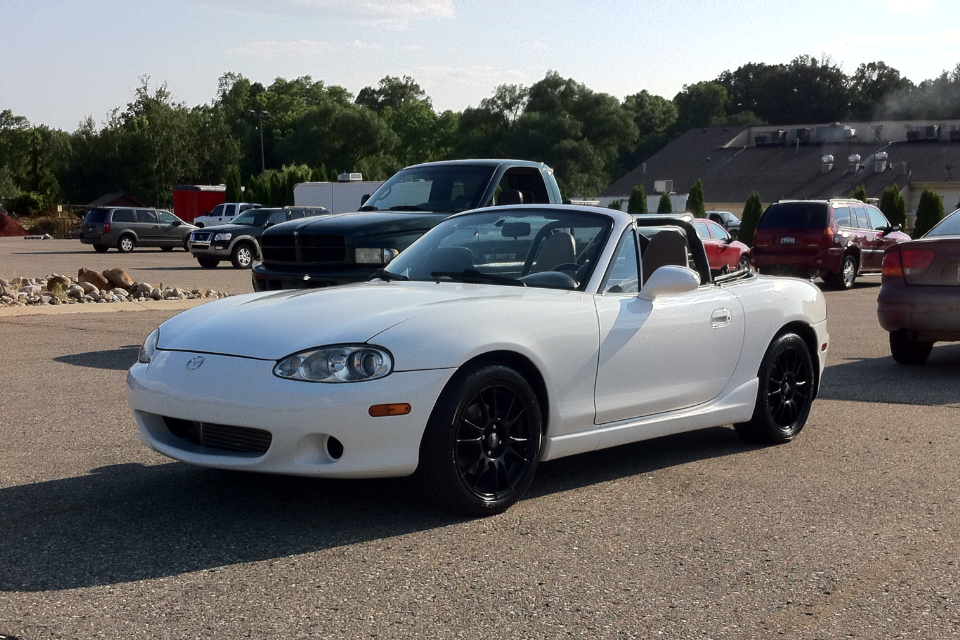

Picked up a 2002, recently sold a 91 Supercharged. I'm picky about my work and try to make the right moves with my stuff. I hope you enjoy.

Equipment:

2002 Miata LS White, black and tan interior
Corbeau FX1 Pro Suede Drivers Seat
OZ Superleggera 16
Tein S-Tech Springs, KYB Shocks

Performance:

BEGI S4 System with upgraded intercooler and GT2860RS option (Disco Potato)
AEM Water/Meth Progressive from 4-13 LBS (Not tuned as of now)
ACT Clutch on my third 5 speed trans
LSD Poly Differential bushings
FM turbo exhaust with high flow cat Poly exhaust hangers
AEM WB
TurboSmart E-Boost2 Controller
XEDE Piggy back
RC 550 injectors
Walbro 190 HP Fuel Pump
Upgraded radiator - Coolant Reroute
Marshall - Boost, Oil Pressure, Oil Temp gauges
Roll bar - Hard dog

I'm sure I'm missing things..

Attached Thumbnails My 2002 BEGI S4 GT2860RS - White and sexy.-img_1945.png

Last edited by Dem768; 08-02-2011 at 09:37 AM.
Dem768 is offline
Reply With Quote
Old 08-02-2011, 09:39 AM
  #2
MFz Regular

Join Date: Jul 2011
Location: Schuylkill County, PA
Posts: 266
Default

Looks good. Do you have any dyno sheets or anything?
thirdgen is offline
Reply With Quote
Old 08-02-2011, 10:07 AM
  #3
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default

AEM Meth/Water Install:

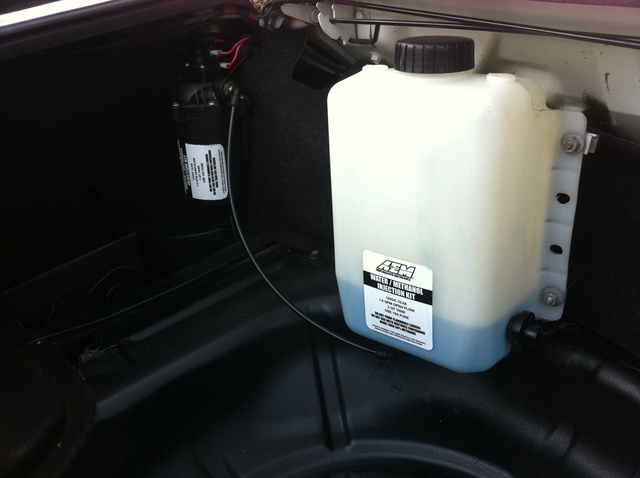

I decided to run the pump and the tank in the trunk. I pride my engine bay too much to be cluttering it up with another tank and a bunch of wires.

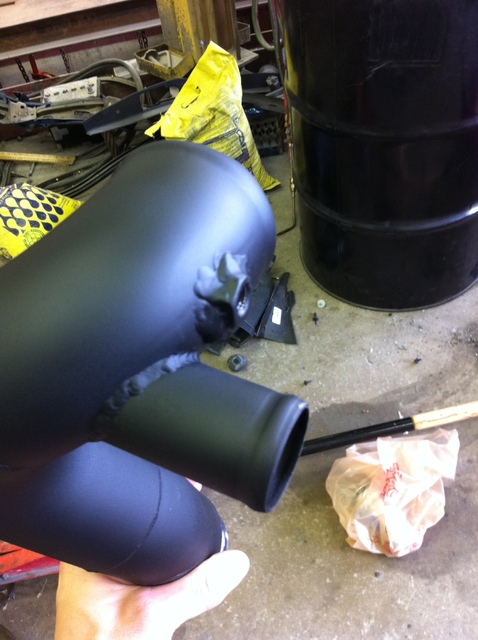

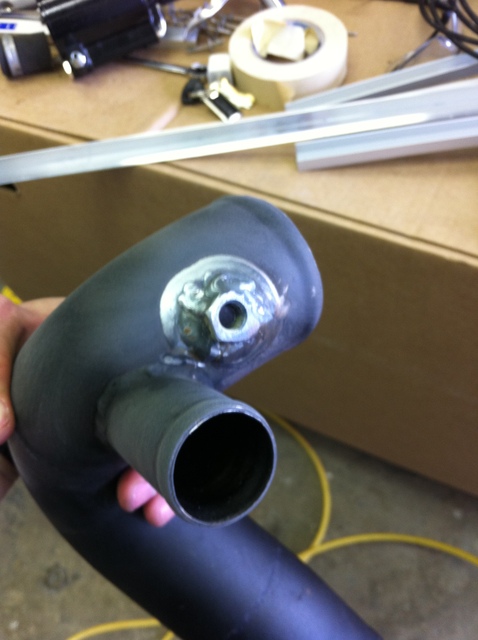

Kit didn't come with a bung so I hit up the local hardware joint and welded a nut.


Powder to cover up my gorilla welding.

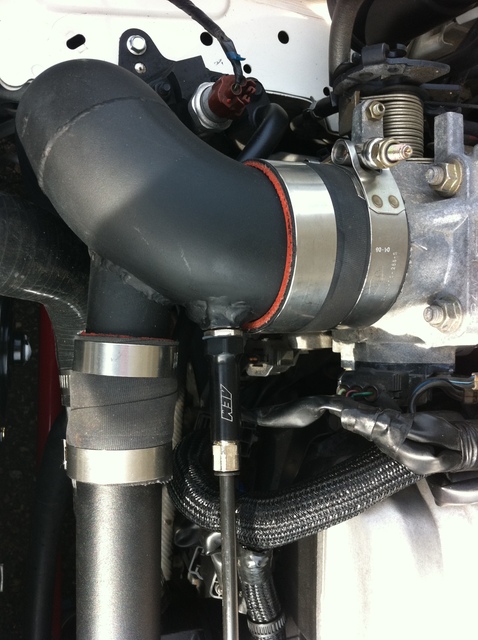

Nice and clean...


I ran the smallest jet included with the AEM kit. Wired the fail output wire to my XEDE to switch maps when I get around to tuning for it. I expect to run some pretty aggressive timing and about 13 LBS.
Attached Thumbnails My 2002 BEGI S4 GT2860RS - White and sexy.-img2081b.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2024ao.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2025s.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2085jo.jpg
Dem768 is offline
Reply With Quote
Old 08-02-2011, 10:09 AM
  #4
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default

Originally Posted by thirdgen View Post
Looks good. Do you have any dyno sheets or anything?
The dyno sheet I have is not on 12.5 LBS. It's a bit lower and the car was not as equipped as it is now. Put down 255, if I recall it was around 10PSI? Unsure though.
Dem768 is offline
Reply With Quote
Old 08-02-2011, 10:16 AM
  #5
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default

Lightweight Battery installation:

Old mount was obviously too large. I didn't want to rice it up with some rigged up stuff though.

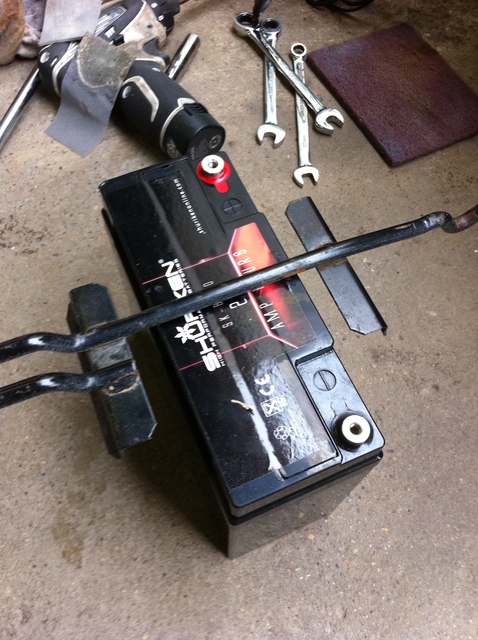

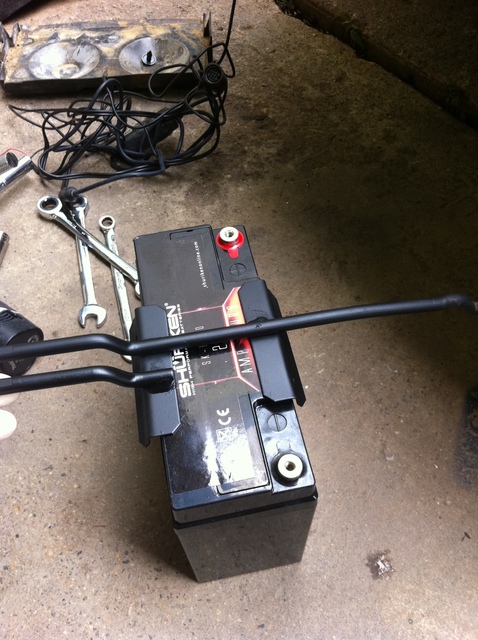

So I chopped the grip off and re-welded it to fit the new battery.

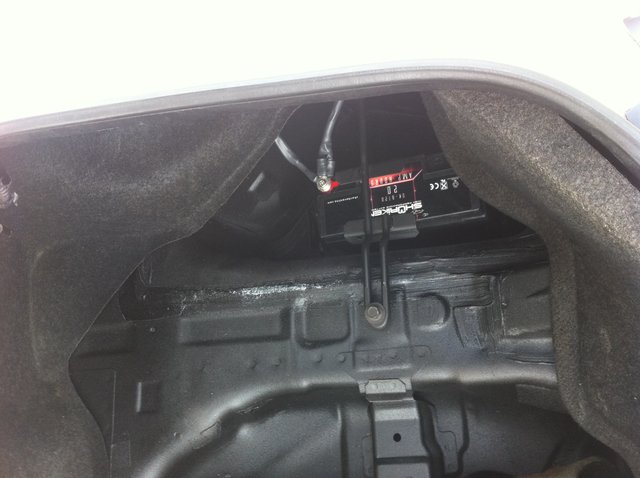

A little black paint, some new terminals and shrink wrap, and we're in business. Just can't leave my radio on as long when the car is off.
Attached Thumbnails My 2002 BEGI S4 GT2860RS - White and sexy.-img2033jj.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2035w.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2084ub.jpg
Dem768 is offline
Reply With Quote
Old 08-02-2011, 10:26 AM
  #6
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default

Radiator and fan installation:

We had a heat wave come through and the car started to overheat under some moderate beating-the------out-of-her driving. I didn't see any reason to dump 5 hundo on brand name aluminum when I was just looking for a little upgrade, so I ordered this guy off of eBay. Nice product, direct fit, and it absolutely did the trick. Threw some Mishimoto silicone on it. Product Link

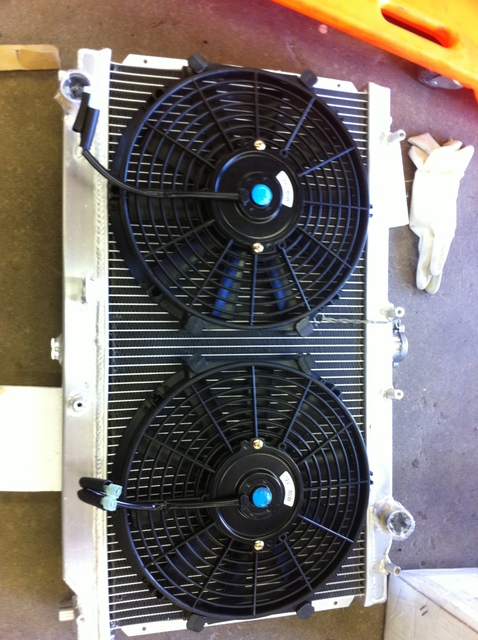

Good looking radiator if you ask me. It's got a simple job. Good welds, factory mounting points.

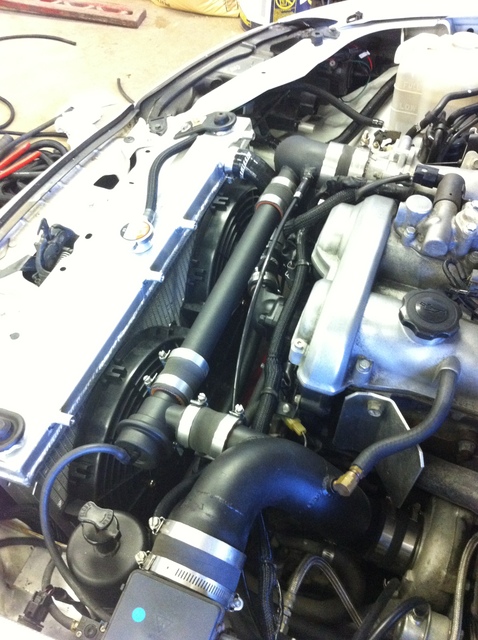

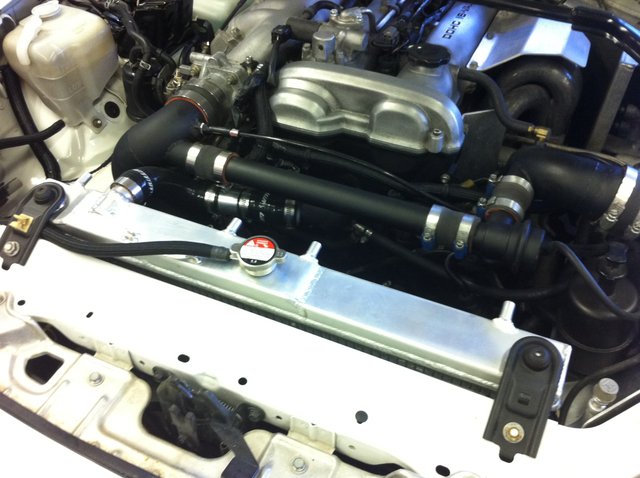

Slid in with minimal fuss, looks good to me.


The slim fans made up for the additional size of the radiator. Mishimoto silicone was designed for the stock coolant route.. so that took some manipulating. Nothing to fuss about though.
Attached Thumbnails My 2002 BEGI S4 GT2860RS - White and sexy.-img2073n.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2074b.jpg   My 2002 BEGI S4 GT2860RS - White and sexy.-img2076c.jpg
Dem768 is offline
Reply With Quote
Old 08-02-2011, 11:06 AM
  #7
MFz Lurker

Join Date: Aug 2011
Location: Ceresco, NE
Posts: 39
Default

Very nice project!
Stein is offline
Reply With Quote
Old 08-03-2011, 11:08 AM
  #8
MFz Regular

Join Date: Aug 2011
Location: Montreal, Canada
Posts: 58
Default

This is clean!

I love it !
absRTP is offline
Reply With Quote
Old 08-03-2011, 02:31 PM
  #9
Featured Miata!
Thread Starter

Join Date: Aug 2011
Location: Royal Oak, MI
Posts: 187
Default

Originally Posted by absRTP View Post
This is clean!

I love it !
Thanks man. More to come..
Dem768 is offline
Reply With Quote
Old 08-03-2011, 02:38 PM
  #10
MFz Regular

Join Date: Aug 2011
Location: Montreal, Canada
Posts: 58
Default

How much did you paid for the radiator?
absRTP is offline
