99mx5's ARTech EFR build
#74
I remember to turn the stupid camera on about 1/3 of the time. I want to get the new remote start for the go pros and put it on the dash with a big sticky reminding me to turn it on then to turn it off!
#78

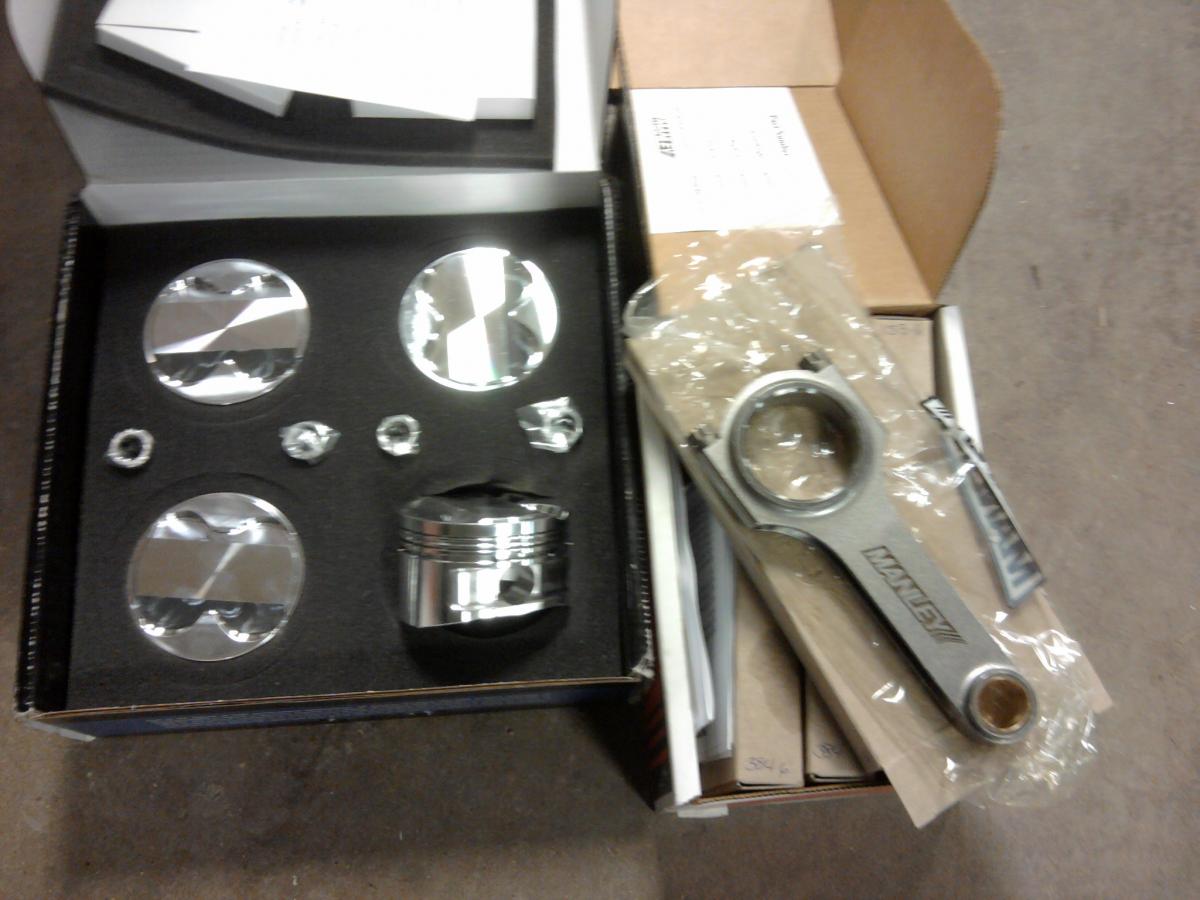

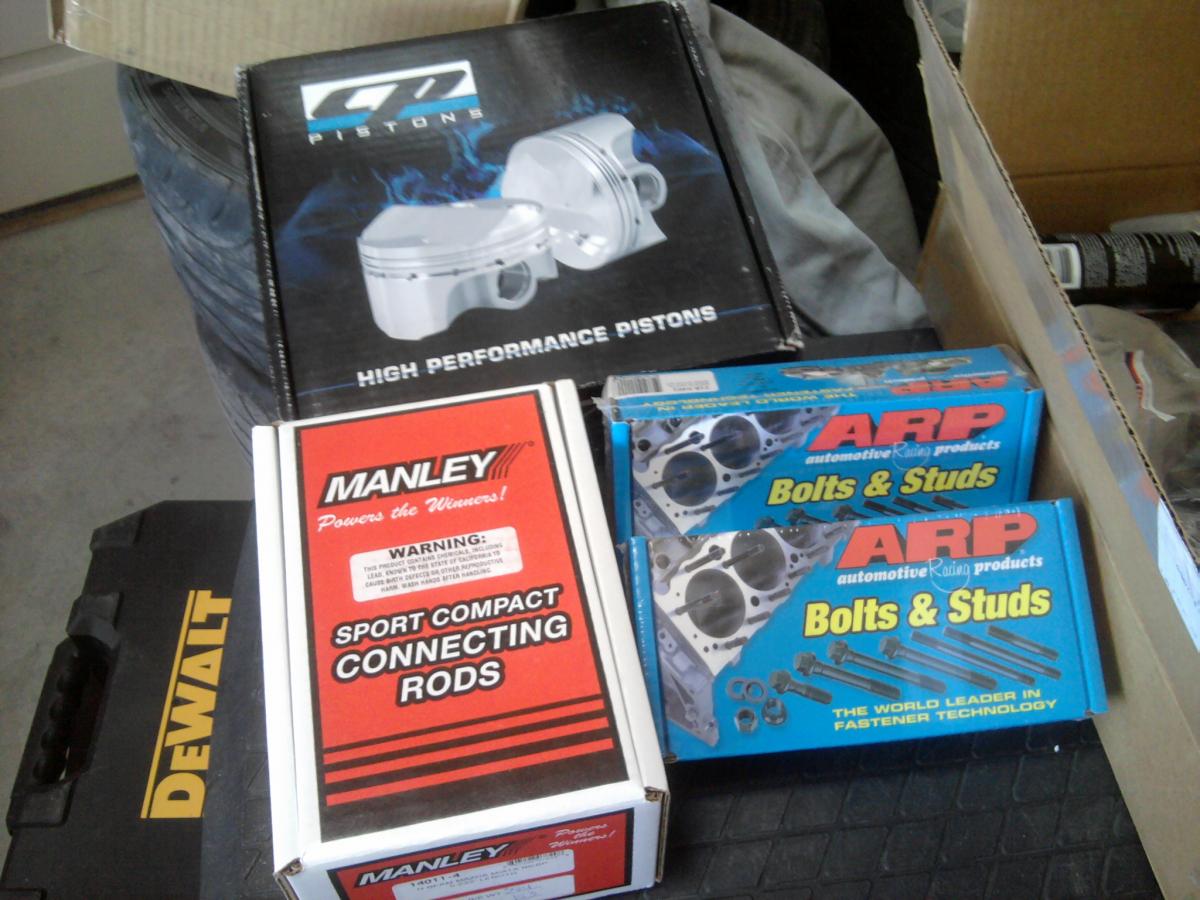

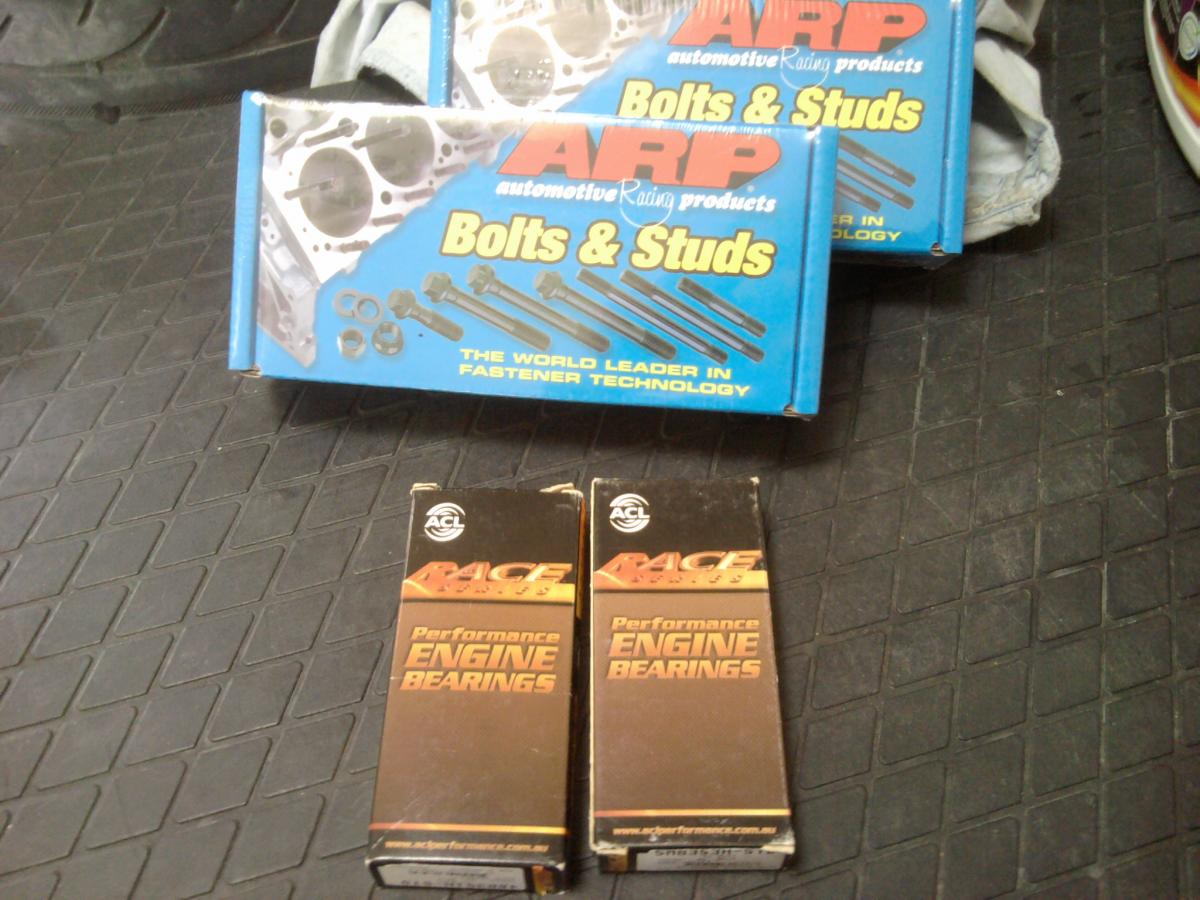

Rebuild parts!
-CP 9:1 pistons (standard size)

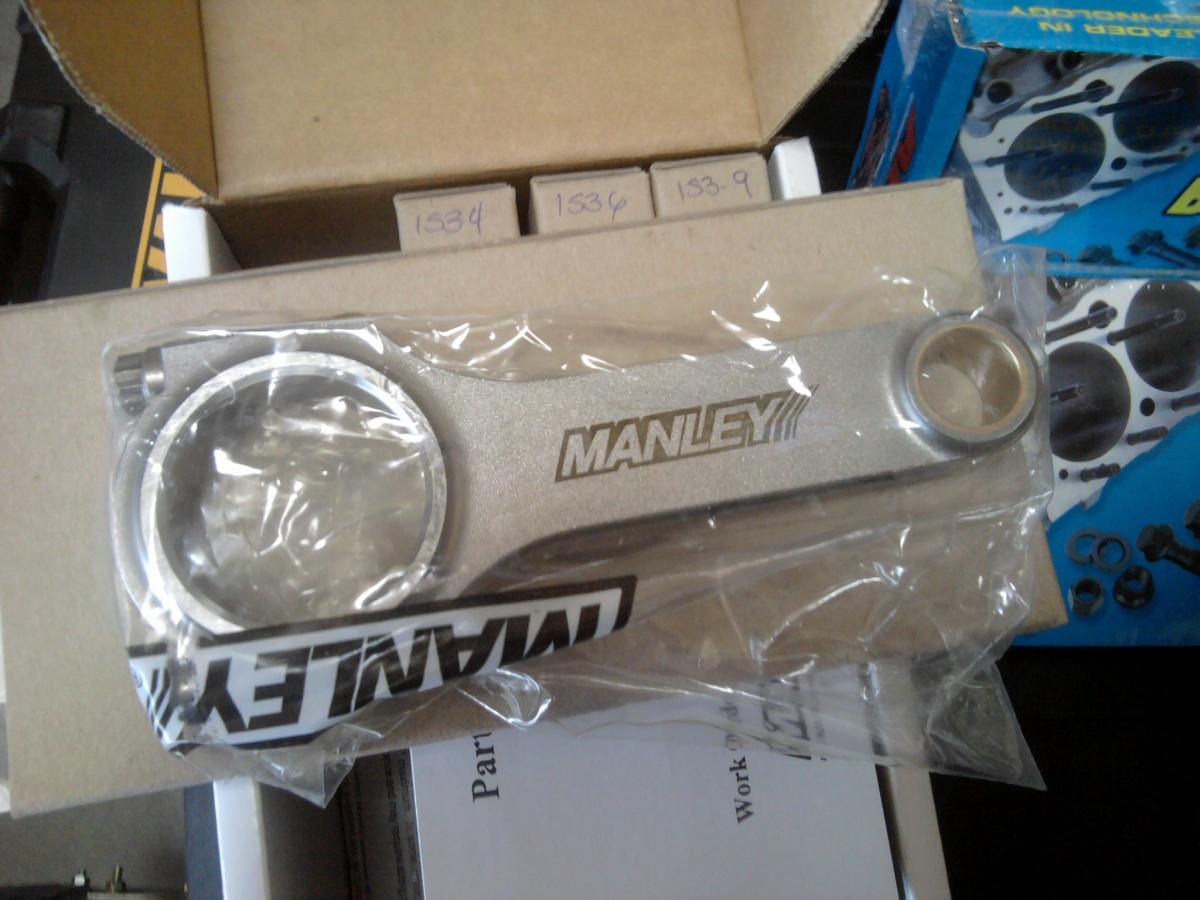

-Manley rods
-ARP head and main studs

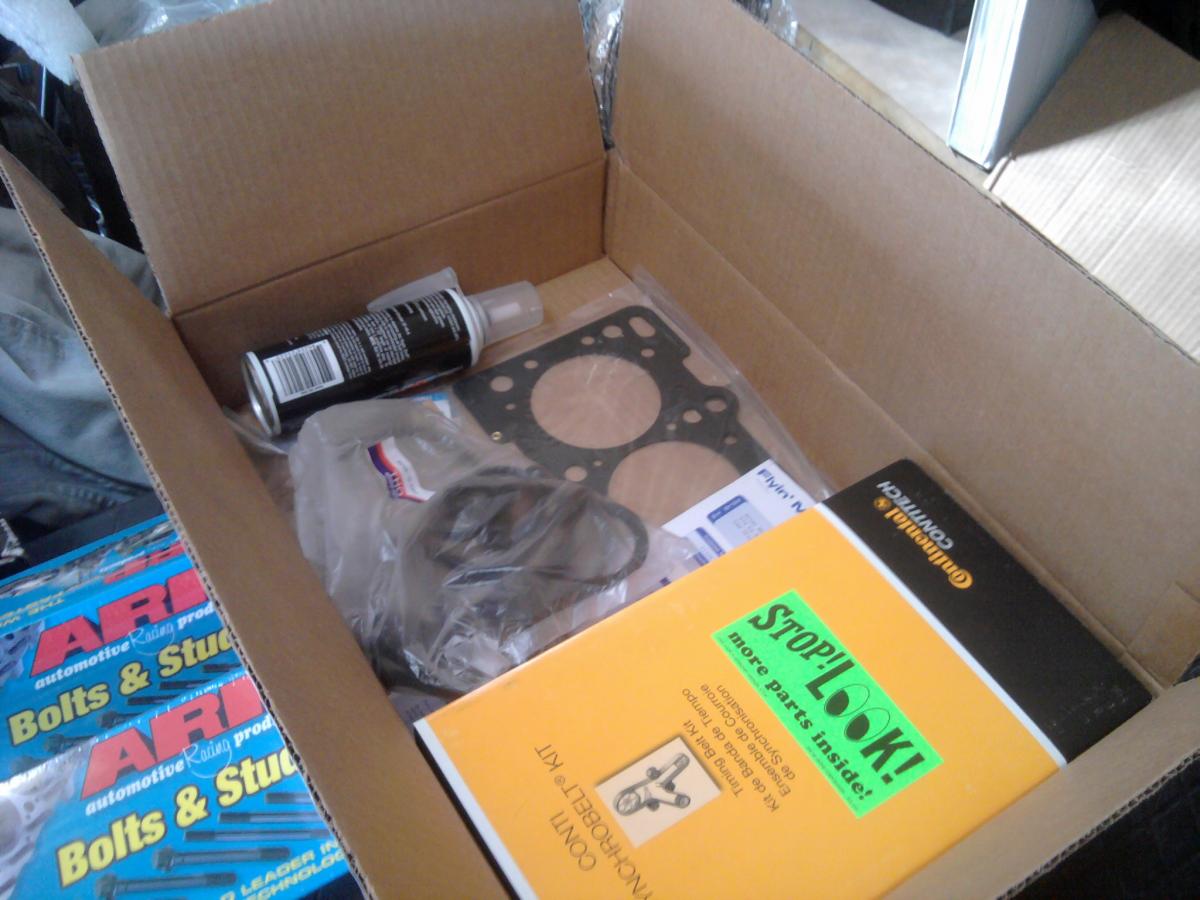

-FM engine rebuild kit
-ACL Race bearings for rods and mains (standard size)
-Boundary Engineering street/strip oil pump
-CP 9:1 pistons (standard size)
-Manley rods
-ARP head and main studs
-FM engine rebuild kit
-ACL Race bearings for rods and mains (standard size)
-Boundary Engineering street/strip oil pump
#79

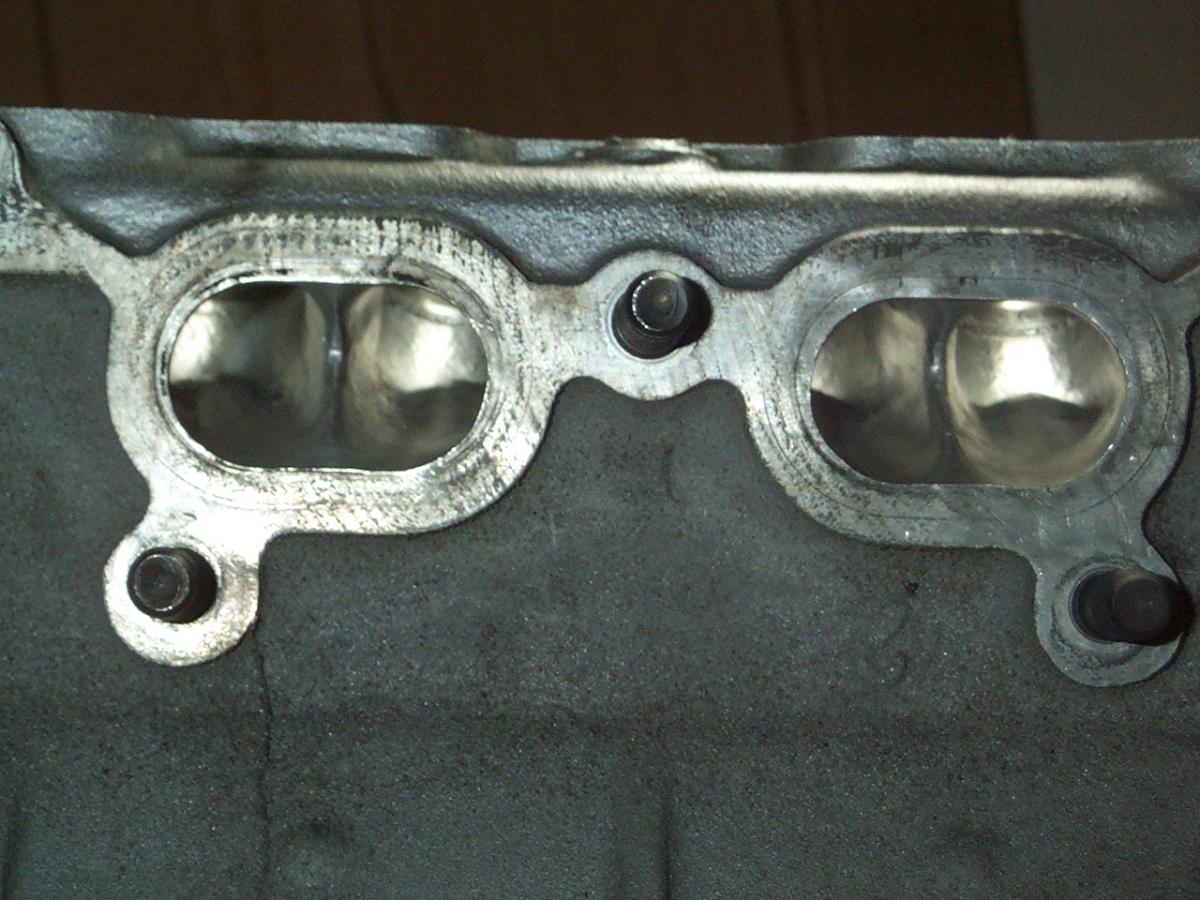

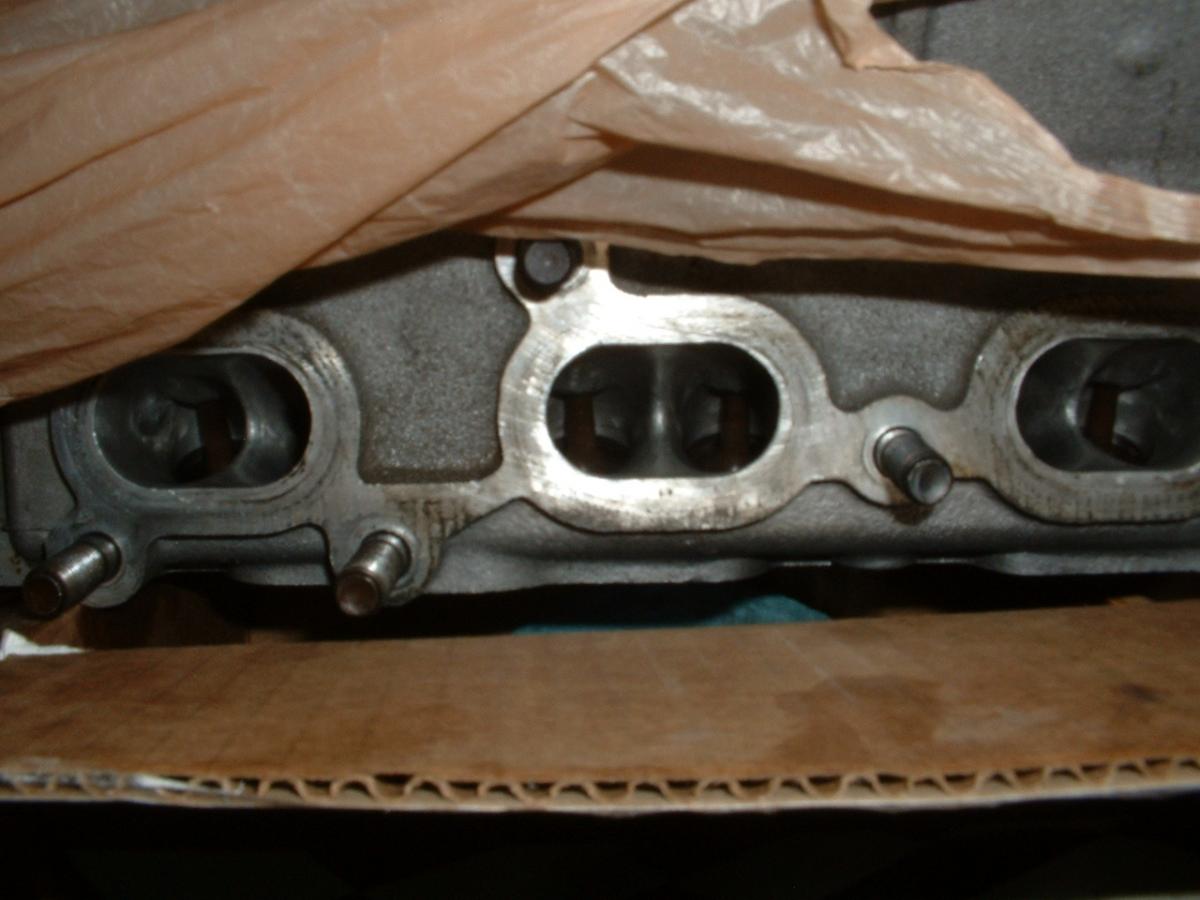

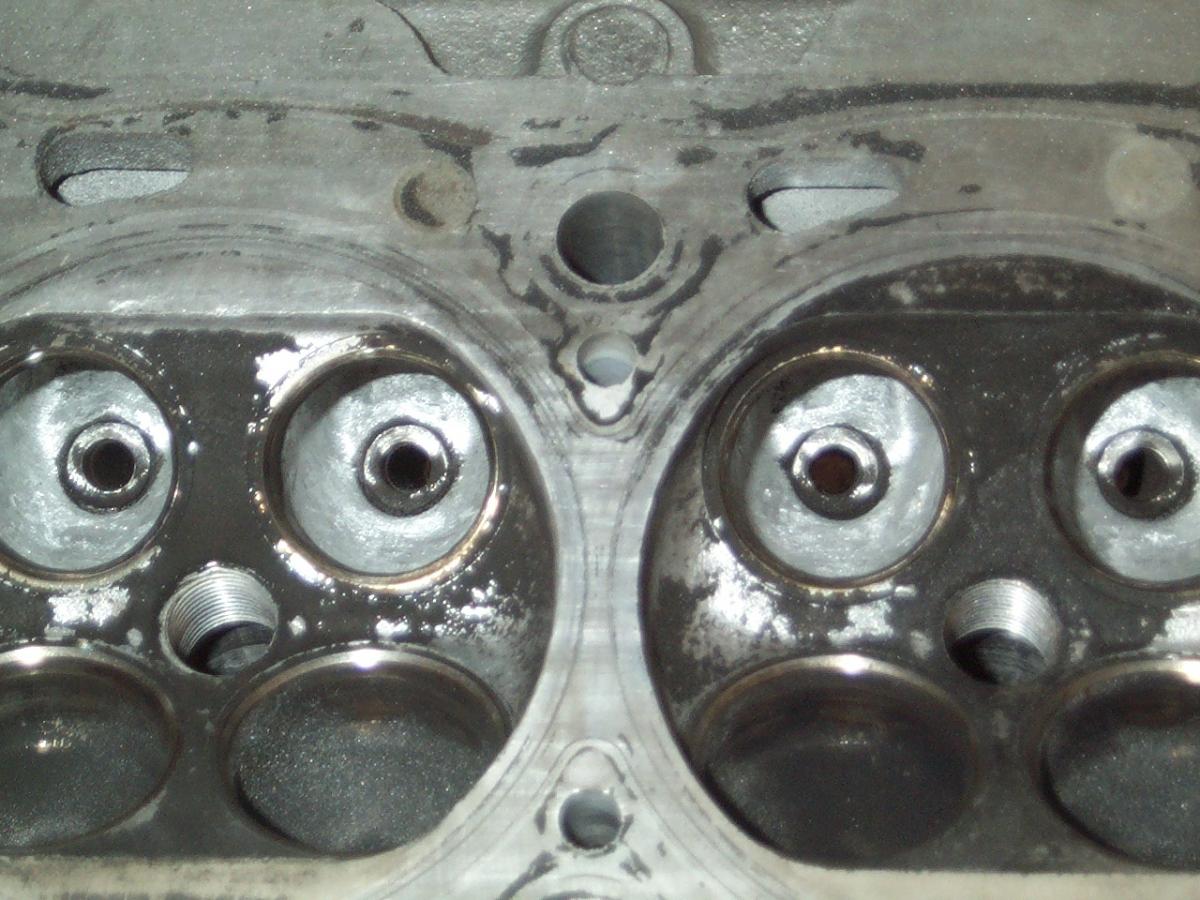

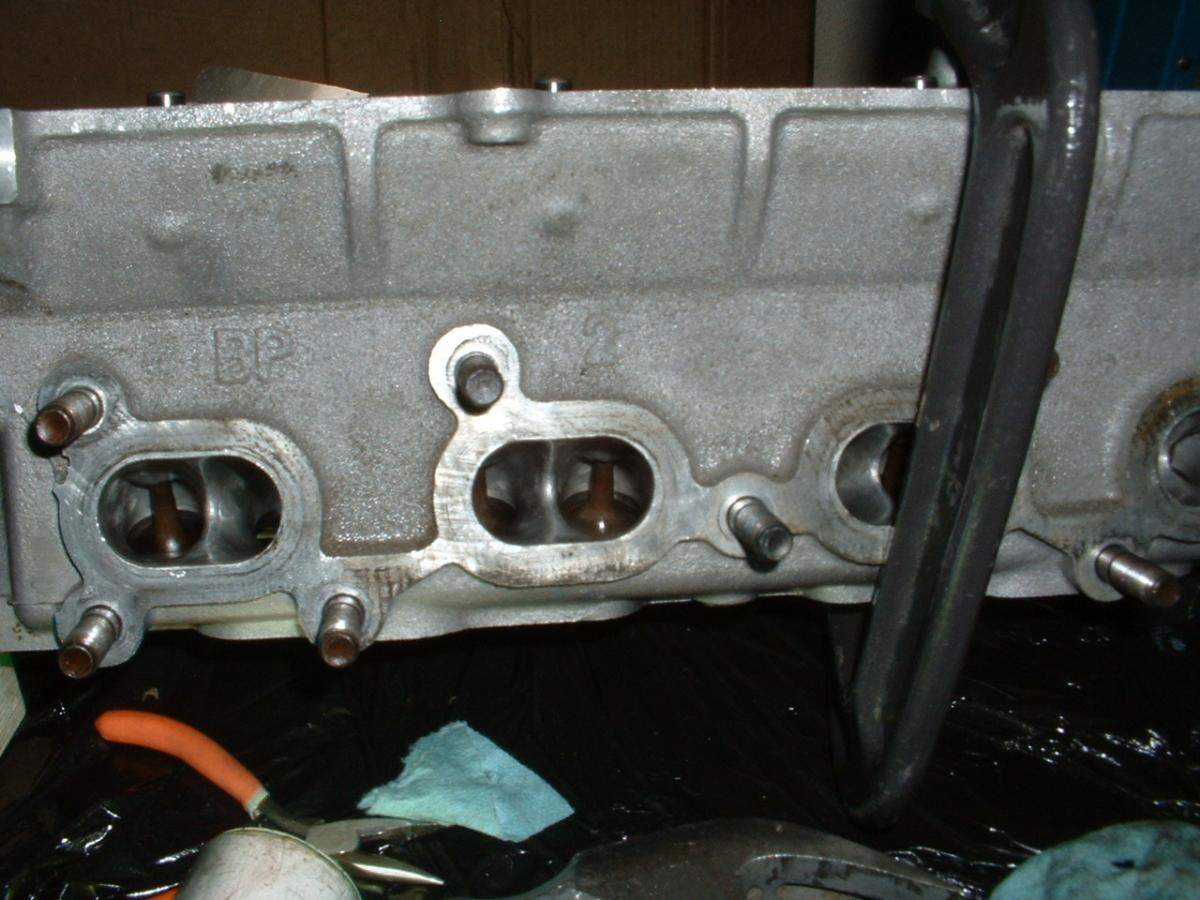

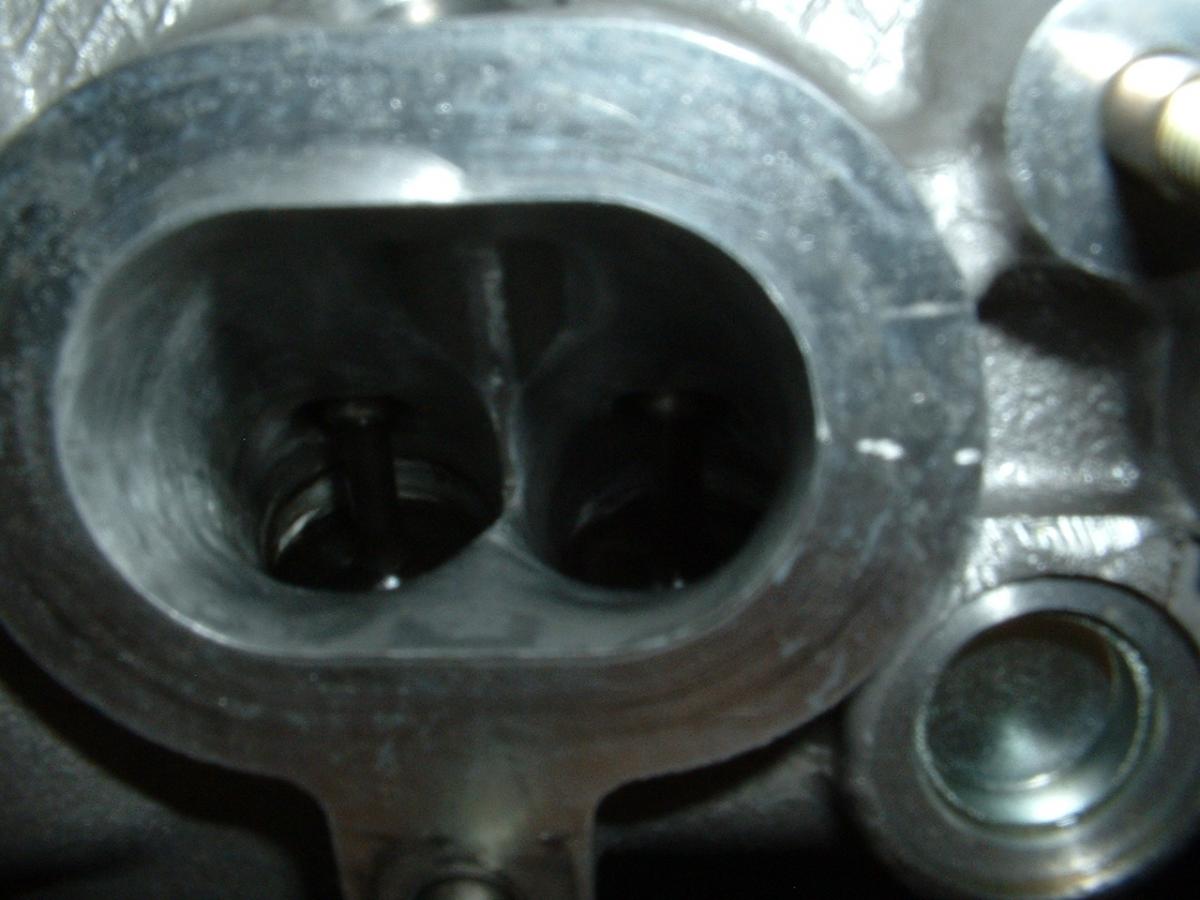

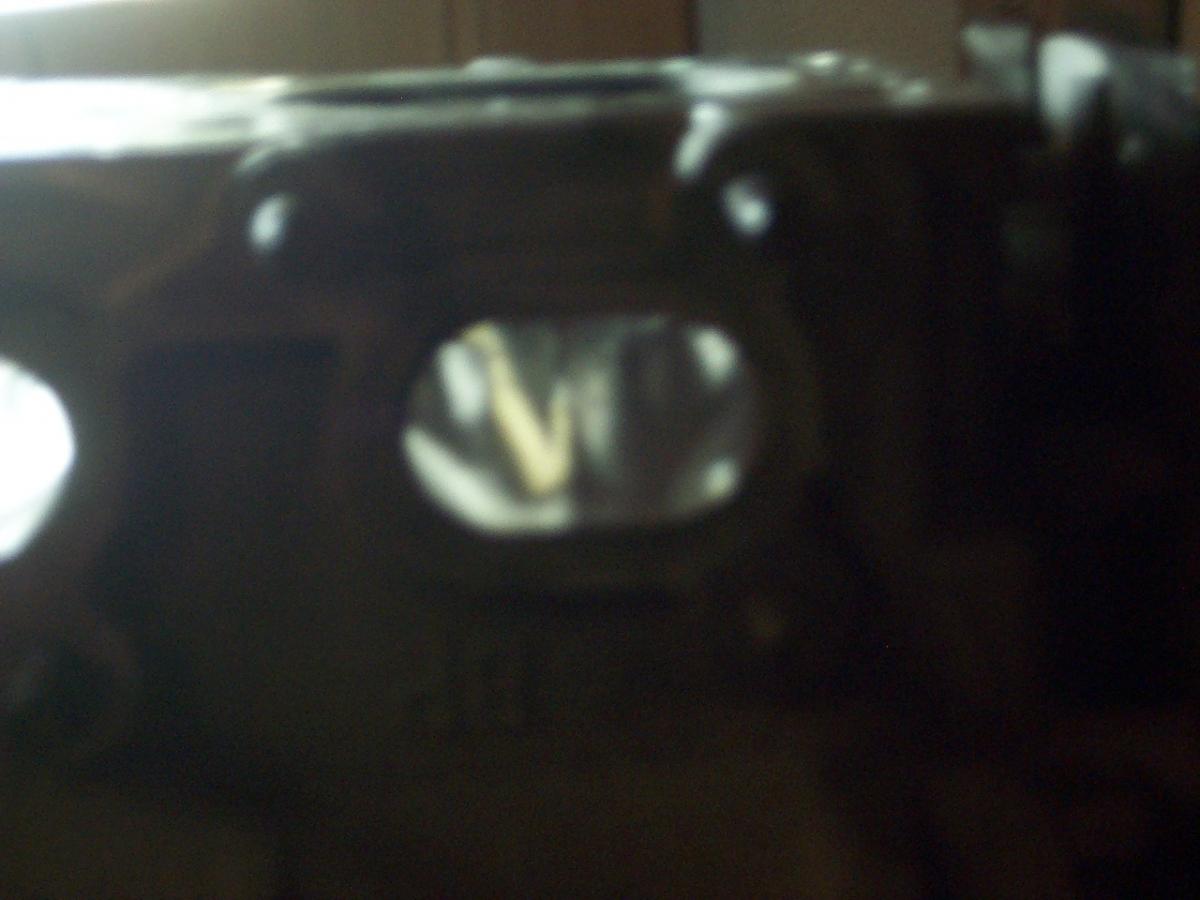

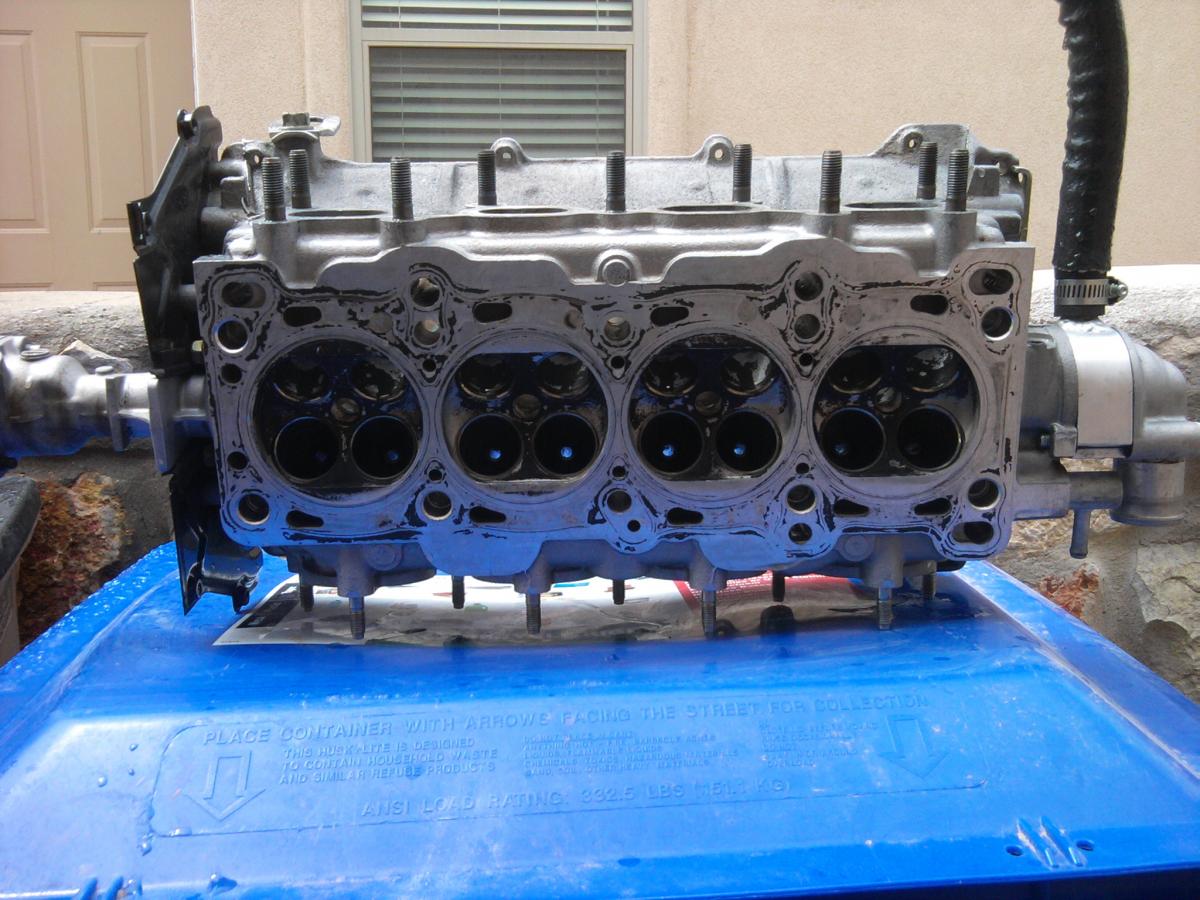

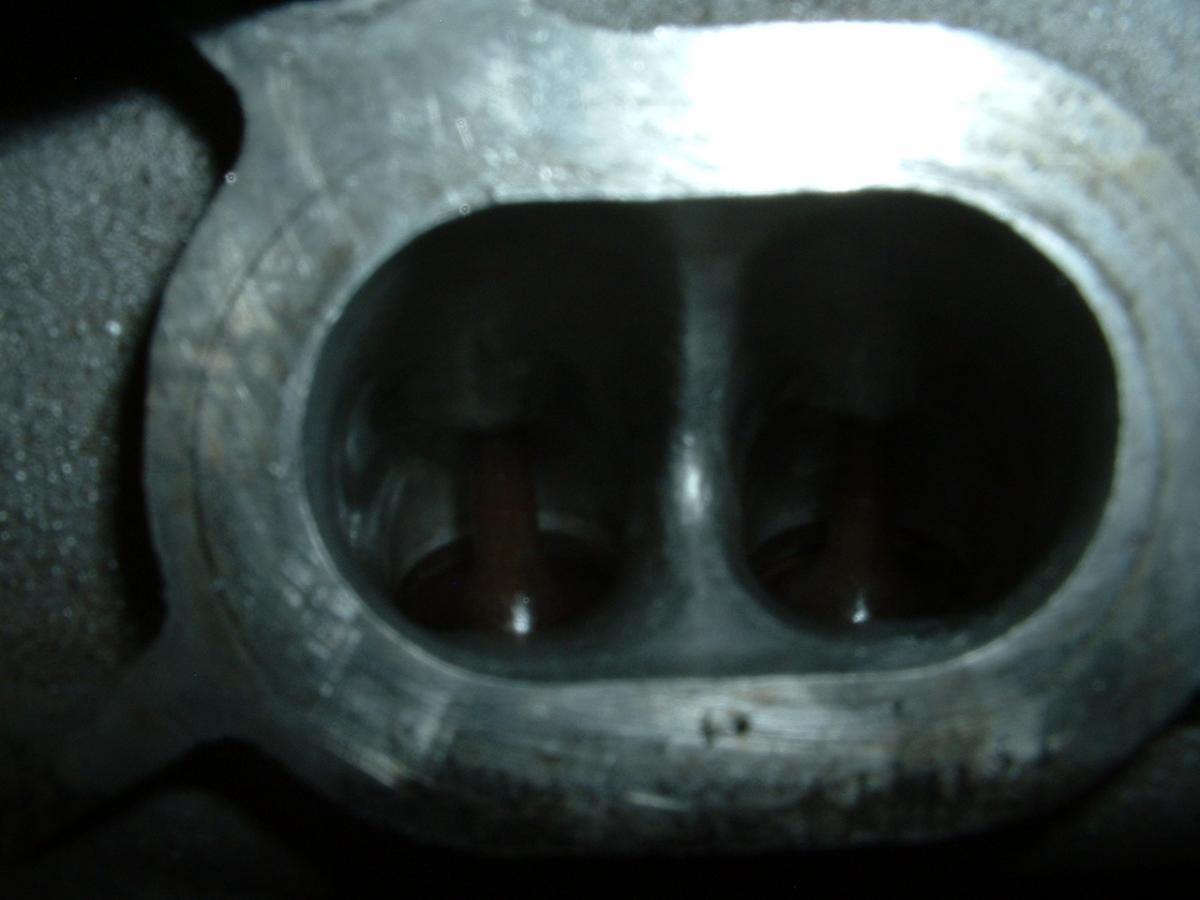

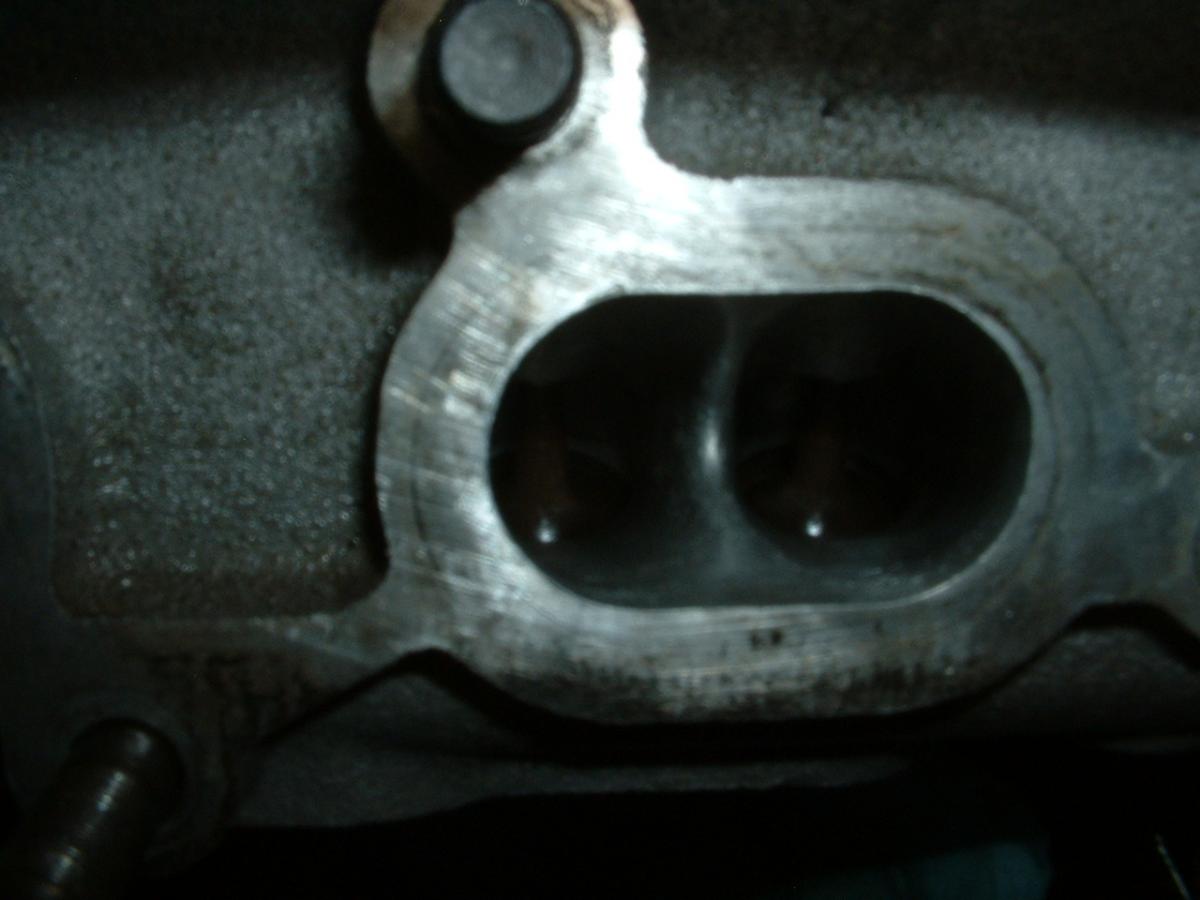

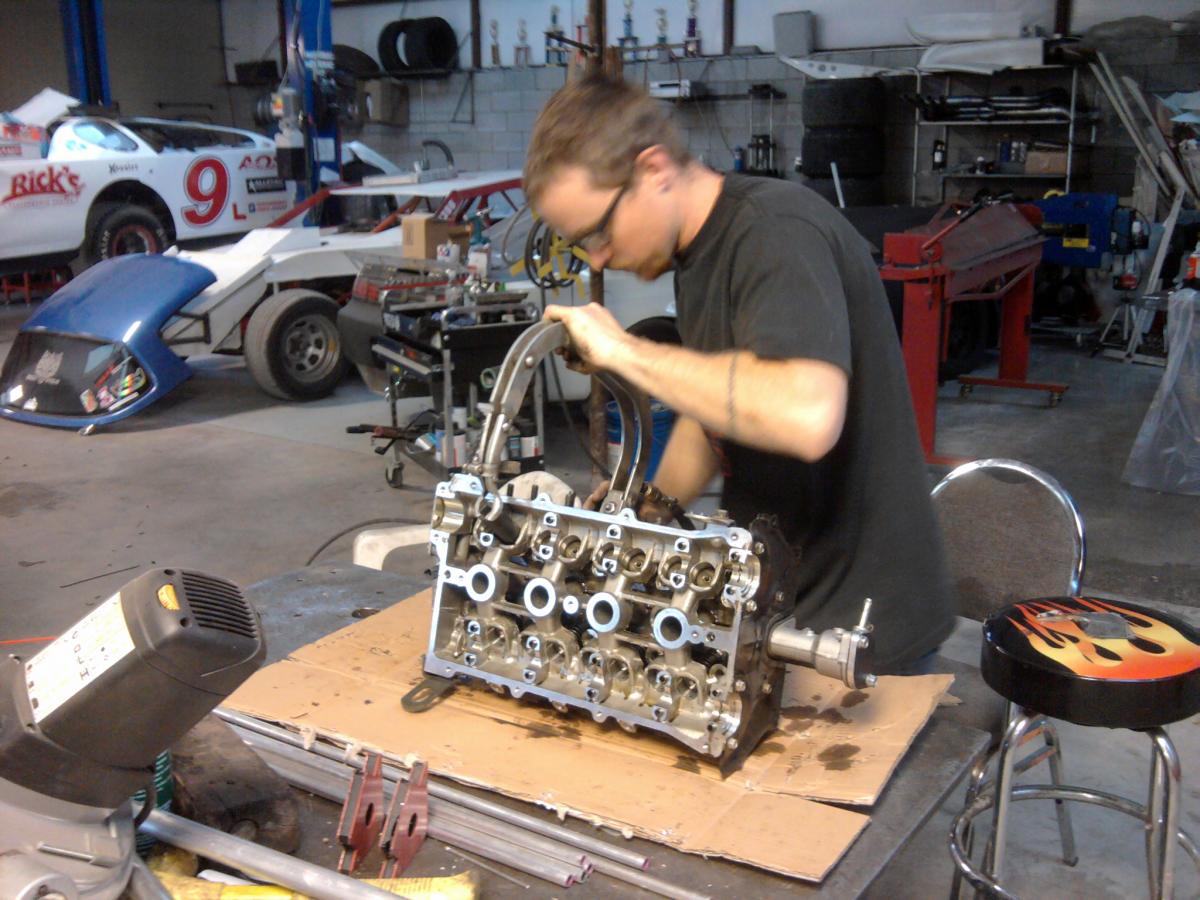

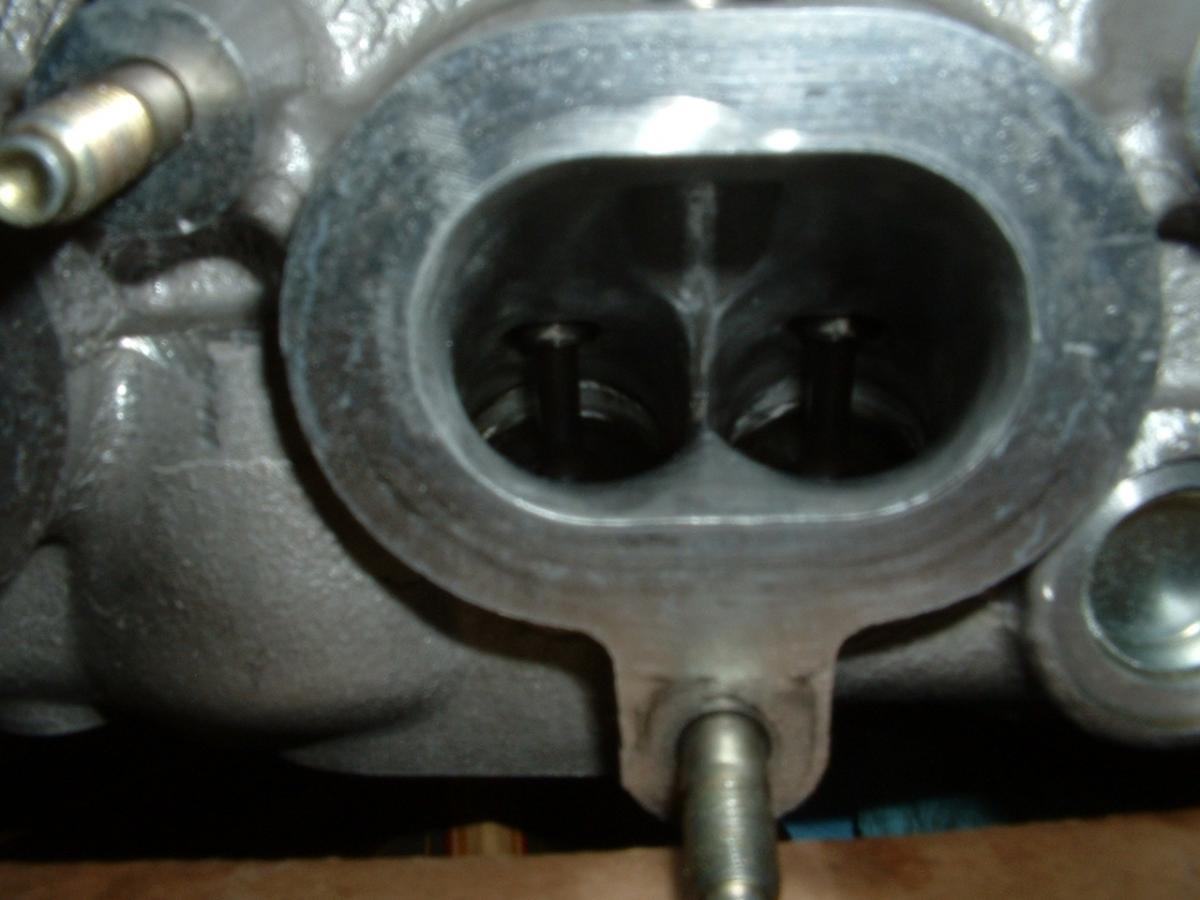

We removed the valves and springs from the head. I washed the head and cleaned up the exhaust ports. I smoothed the ports and removed the casting flash. I used a small Dremel wire brush to polish the surface after smoothing the exhaust ports.
#80
The block and crankshaft was taken to the machine shop. Hopefully, I will have them back later this week.

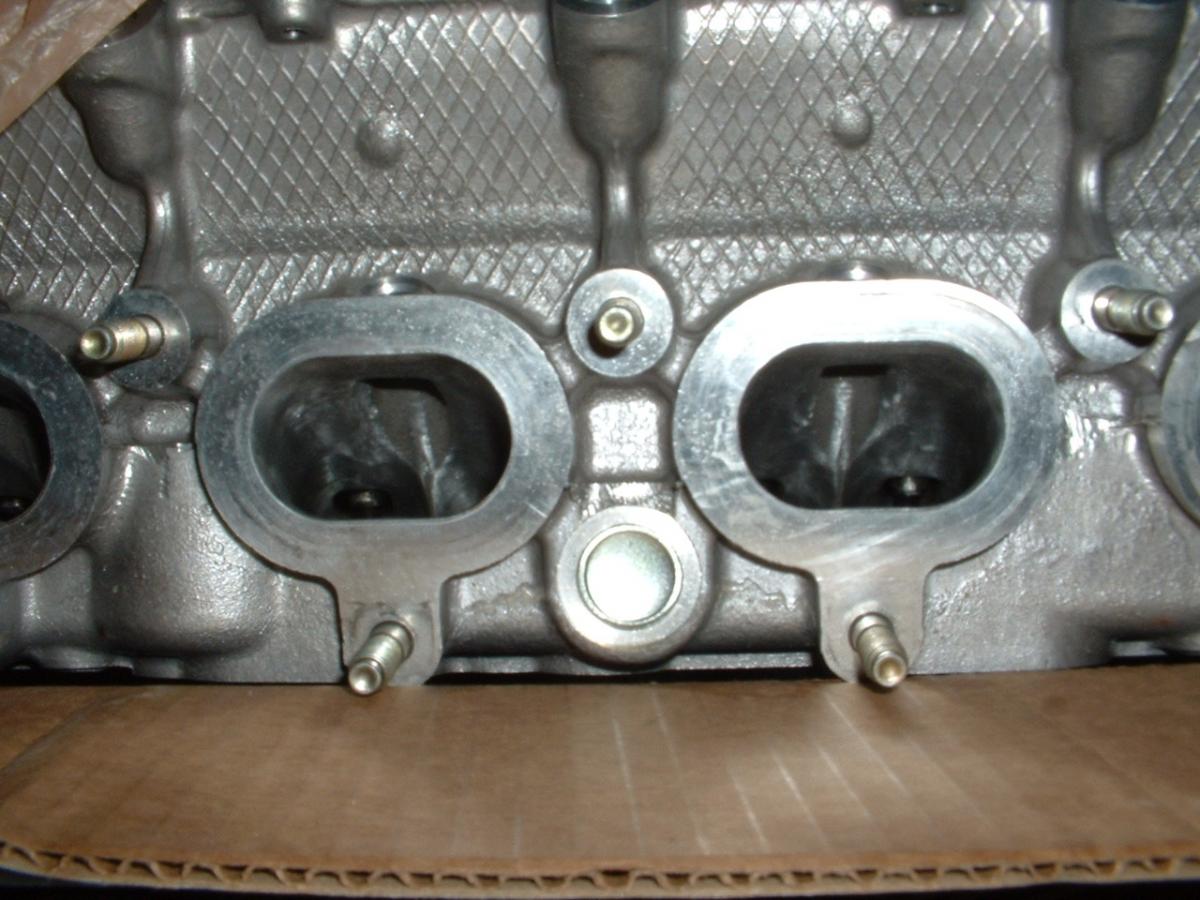

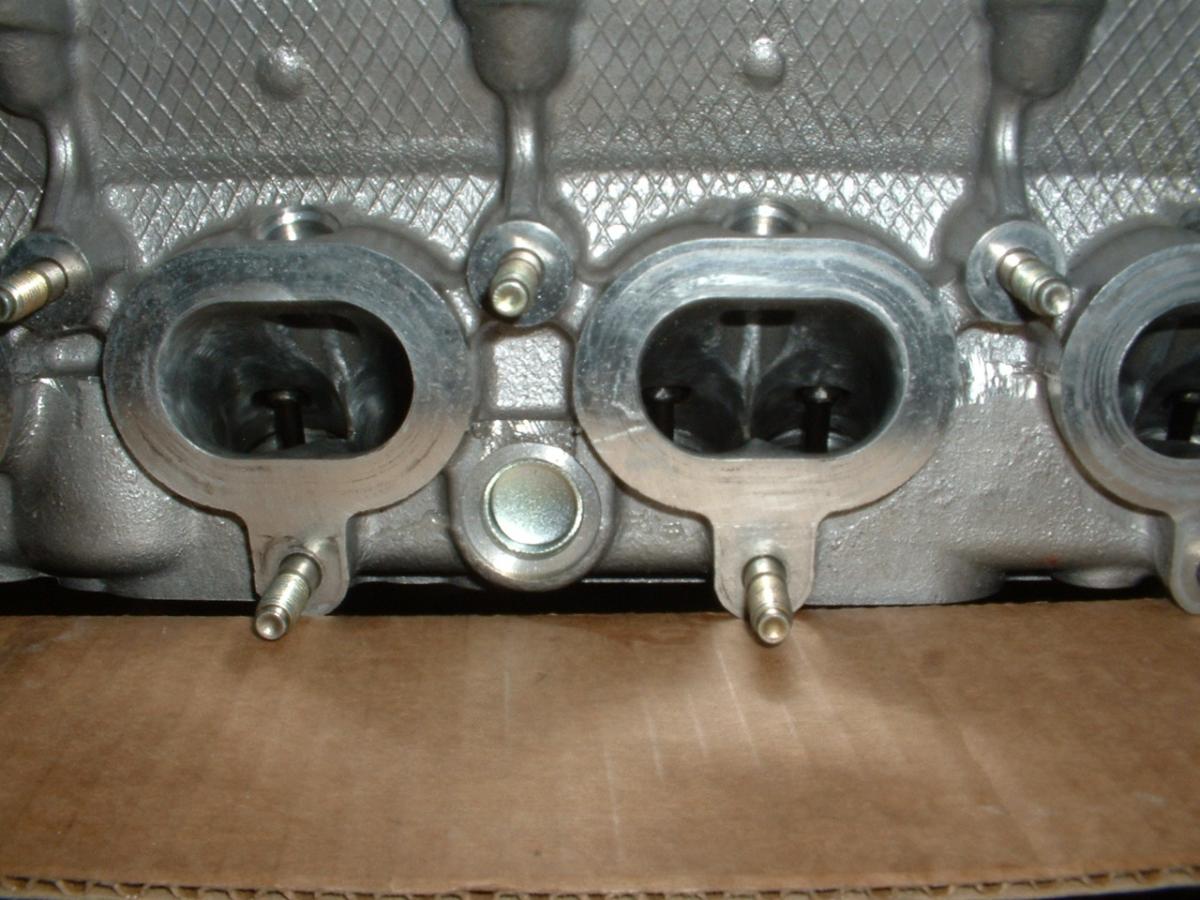

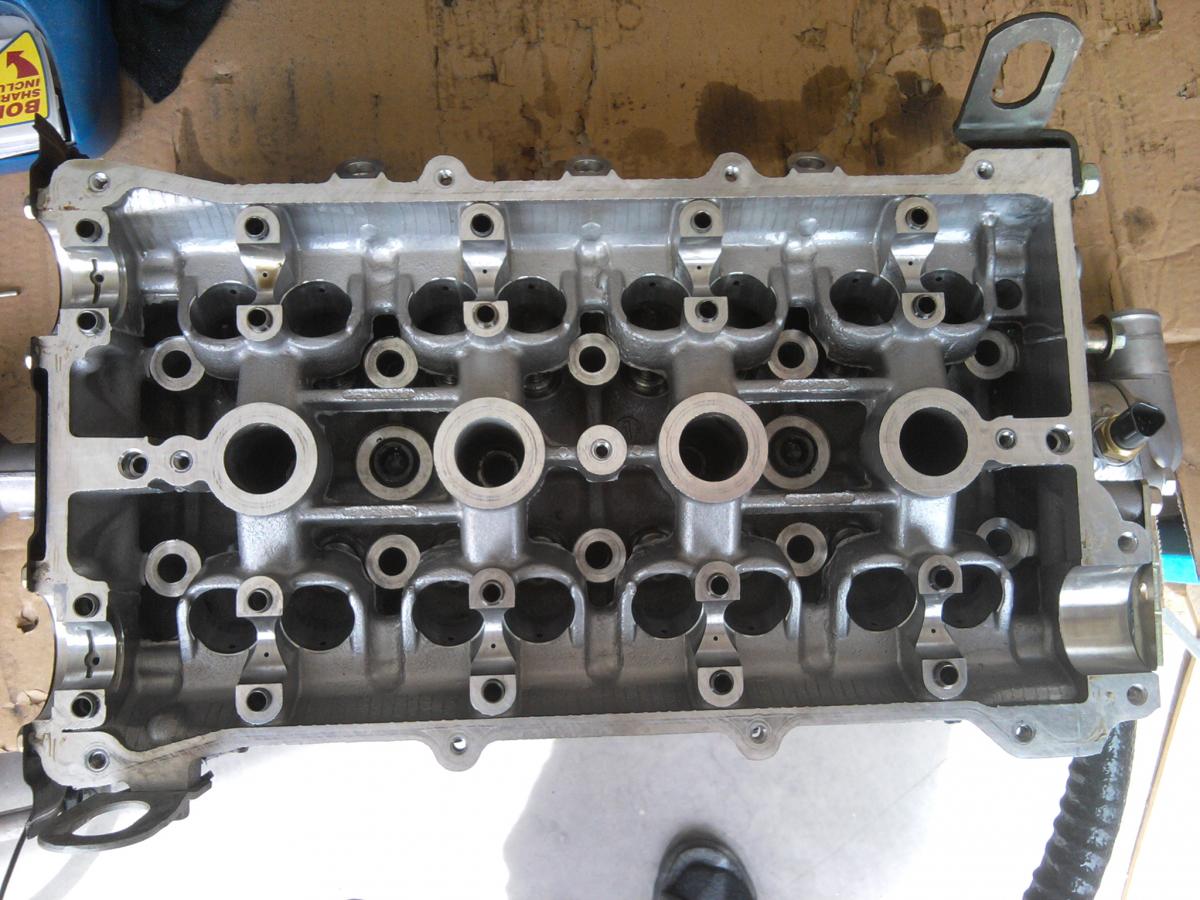

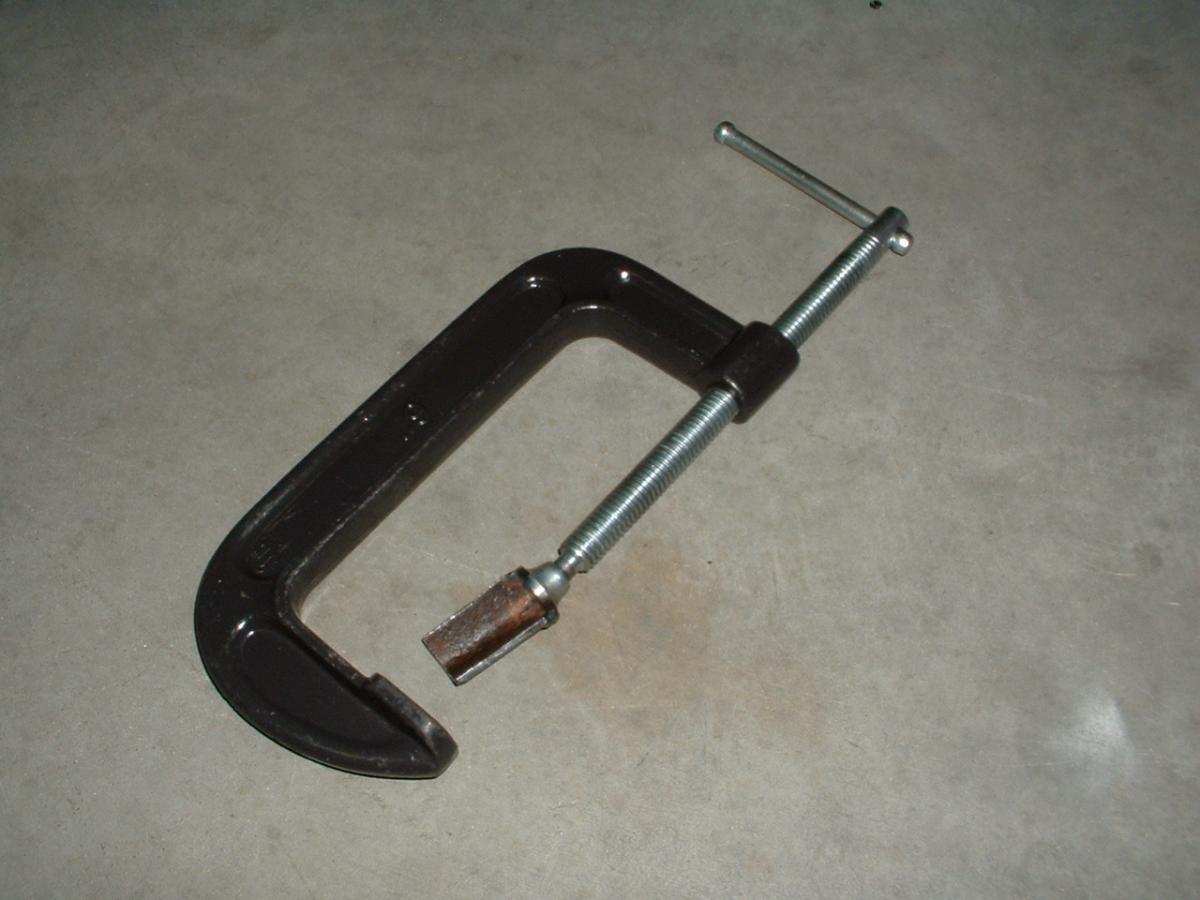

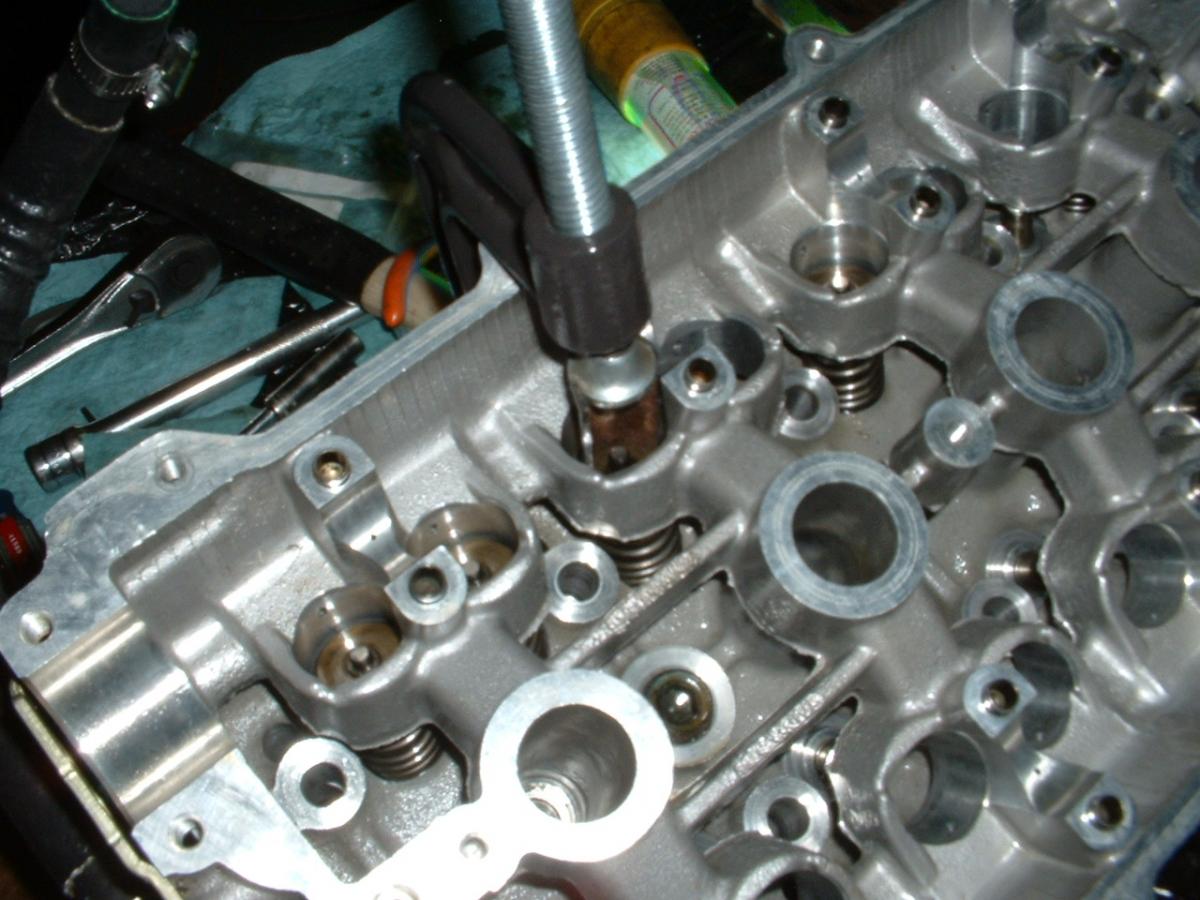

I smoothed out the head ports and installed new valve seals and installed the valves. I had to make my own spring compressor tool. I welded a piece of angle iron to a large C-clamp to compress the valves and used a spacer on the valve end. It worked like a charm.
I smoothed out the head ports and installed new valve seals and installed the valves. I had to make my own spring compressor tool. I welded a piece of angle iron to a large C-clamp to compress the valves and used a spacer on the valve end. It worked like a charm.
